View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Upper Cabinet/drum Heater
03 - Motor/blower/belt

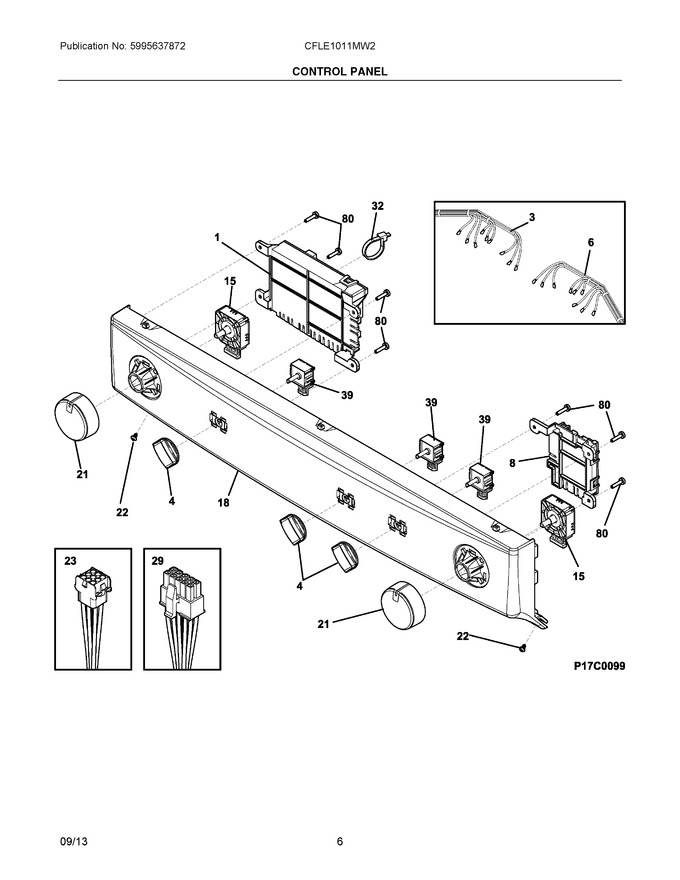

04 - Control Panel
05 - Lower Cabinet/top
06 - Motor/tub
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 137275300 | Control Board, Main, W/housing |
|
- | |||||
| 3 | 137329200 | Wiring Harness, Lc Dryer |
|
$ 121.46 | |||||
| 4 | 5304504886 | Knob, Switch (Replaces: 137191300) |
|
$ 68.20 | |||||
| 6 | 137156200 | Harness, Ui, Washer, Lc |
|
$ 119.70 | |||||
| 8 | A00537602 | Pc Board, Communication, W/housing (Replaces: 137332702) |
|
$ 205.05 | |||||
| 15 | 137493300 | Switch, Pts Cycle, 8 Position |
|
$ 60.96 | |||||
| 18 | 137518410 | Console, Decorated, White |
|
$ 205.22 | |||||
| 21 | 137489800 | Knob, Cycle Selector |
|
$ 50.66 | |||||
| 22 | 131205100 | Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive |
|
Immediately | $ 14.18 | ||||
| 23 | 137161400 | Harness, Main, Lc |
|
$ 225.07 | |||||
| 29 | 5304517938 | Wiring Harness, Lc Dryer, Electric (Replaces: 137418900) |
|
$ 105.54 | |||||
| 32 | 5304464772 | Cable Tie, 5.60 Inch, Plastic (Replaces: 5303321209) |
|
$ 10.63 | |||||
| 39 | 137052500 | Switch, Option 3 Pos |
|
$ 50.00 | |||||
| 80 | 134402900 | Screw, Phillips, 6-19 X 0.650 |
|
$ 29.77 | |||||
| NIA | 134101400 | Terminal Block, Main |
|
Immediately | $ 55.99 |
