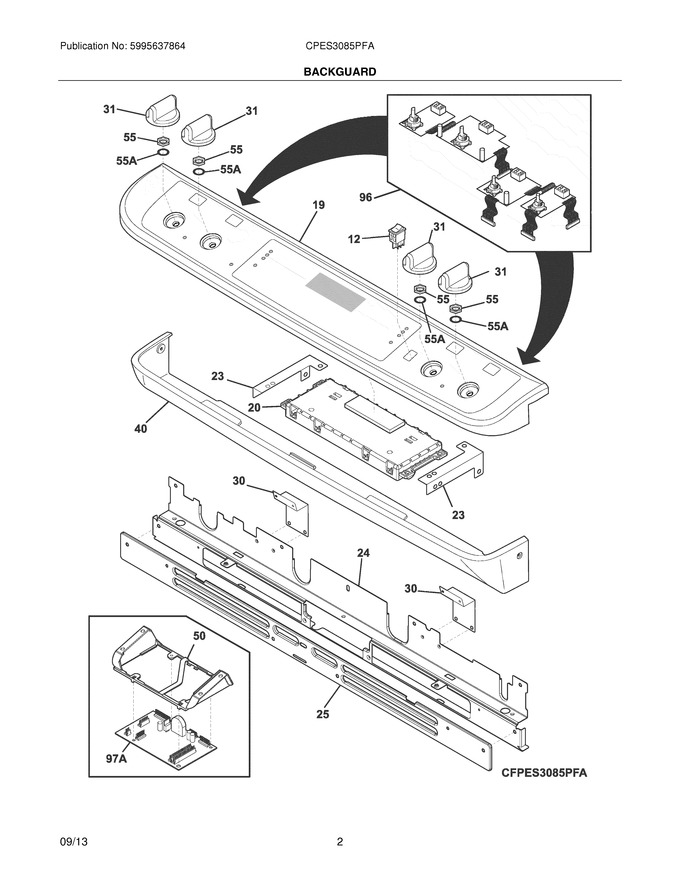

03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


10 - Wiring Diagram


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
23	318921300		Bracket,control Mtg ,(2)				$ 17.64
24	139074901		Frame,vent Trim ,black		Appelez-nous	-
25	139075001		Cover,vent Trim ,black				$ 60.52
30	318928502		Bracket,control Panel ,rear ,(2)   (Replaces: 318928500)				$ 15.60
31	316564406		Knob,control ,stainless				$ 155.22
40	318912907		Panel,service ,silver				$ 302.40
50	318917700		Chassis,uib Mounting				$ 91.46
55	316247700		Nut,mounting				$ 18.20
55A	316247800		Washer,lock ,mtg				$ 18.20
F12	5304527841		Switch-rocker,black   (Replaces: 316005602)			Immediately	$ 11.38
F19	139059412		Panel Assembly,control ,stainless ,w/overlay-trim				$ 759.73
F20	5304503606		Controller,electronic ,es530w5   (Replaces: 316560175)				$ 370.44
F96	318411402		Control Assembly,complete ,rotary ,w/4 Controls				$ 303.10
F97A	316442081		Board,power ,uib			Immediately	$ 317.51
FNI	807633201		Harness,wiring ,display				$ 153.09
FNI	139812500		Harness,wiring ,user Interface				$ 38.38
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
