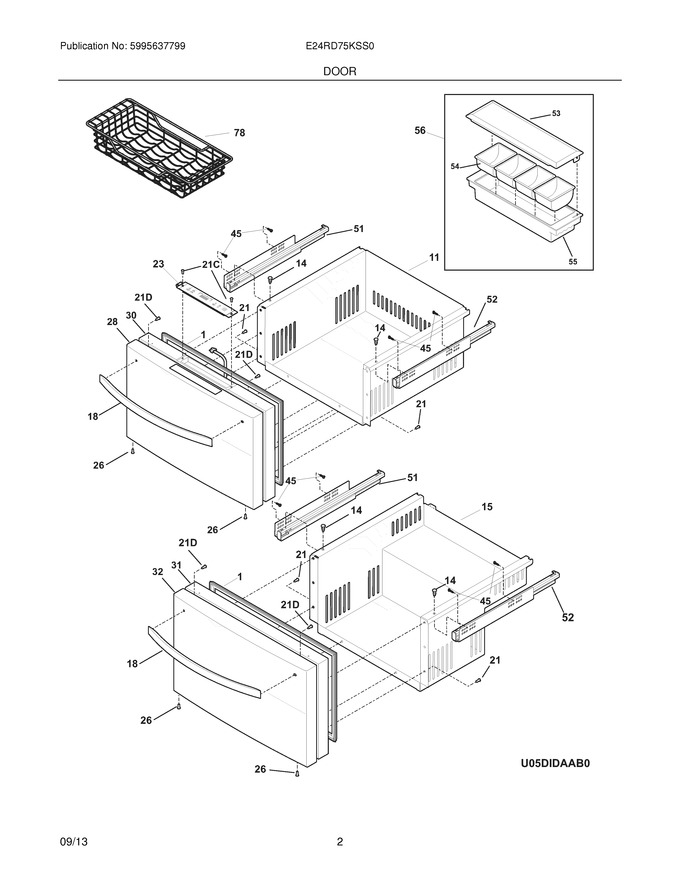

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	241965802		Drawer-top		Appelez-nous	-
14	241967001		Plug-button,black		Appelez-nous	-
15	241966802		Drawer-bottom		Appelez-nous	-
18	242073801		Handle-door,stainless Steel		Appelez-nous	-
21	218362501		Screw,hex Washer Head ,8-18ab X 1.250 ,spacer,(2)				$ 12.05
26	215503206		Screw-no.10-16 Hilo Phil Pan Hd		Appelez-nous	-
28	241997901		Cover-top Drawer		Appelez-nous	-
30	241981201		Front,top Drawer ,w/ui Harness				$ 948.68
31	241981202		Front-drawer,bottom Drawer		Appelez-nous	-
32	241998003		Cover-bottom Drawer		Appelez-nous	-
45	240383411		Screw,truss Hd Quad ,no.10-16 X .500 ,silver Mist		Appelez-nous	-
51	241959501		Rail-shelf,full Access ,left		Appelez-nous	-
52	241959502		Rail-shelf,full Access		Appelez-nous	-
53	241965701		Lid-condiment Tray		Appelez-nous	-
54	241964401		Plate-condiment Tray				$ 48.11
55	241965602		Tray-condiment		Appelez-nous	-
56	241965502		Tray-condiment,complete Assemb		Appelez-nous	-
78	241997401		Basket-sliding, Uc				$ 145.58
21C	241918201		Screw,no.8-32 X 3/8 ,flat Head				$ 9.98
21D	241548003		Screw-handle Mtg   (Replaces: 241998201)				$ 3.03
F1	242038301		Gasket-drawer				$ 244.81
F23	241897405		Board-control,temp Control				$ 296.21
NI	218515401		Clip-grille				$ 17.72
NI	241962901		Seal,drawer		Appelez-nous	-
NI	316136900		Cleaner,stainless Steel				$ 35.49

    View Diagram in Separate Window       Print Part List
