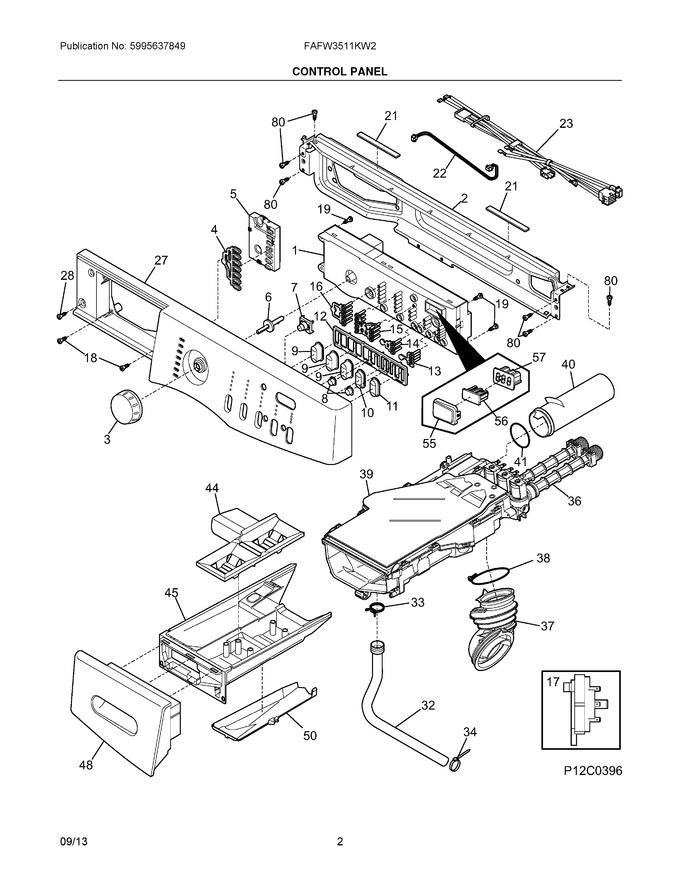

02 - Control Panel


03 - Cabinet/top


04 - Motor/tub


05 - Wiring Diagram


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	137006060		Control Board, Pc, With Housing				$ 296.40
2	134364800		Bracket, Top Front				$ 70.98
3	134551225		Knob, Program, Chrome				$ 49.38
4	134553100		Light Pipe, Program				$ 14.12
5	134556500NH		Interface Board, Pc, Auxiliary   (Replaces: 134556500)				$ 195.92
6	134347700		Pin, Program Knob				$ 19.74
7	134891500		Push Button, Round, #2		Appelez-nous	-
8	134555525		Push Button, Round, #1				$ 33.13
9	134553425		Push Button, Oval, #1				$ 48.67
10	134555440		Push Button, Oval, #2 (soil)		Appelez-nous	-
11	134864400		Push Button, Oval, Start				$ 47.30
12	134884900		Spring, Push Button				$ 83.37
13	134557500		Light Pipe, Start Group				$ 5.67
14	134557400		Light Pipe, Row Of 3				$ 6.67
15	134552800		Light Pipe, 5 X 4				$ 18.43
16	134600000		Light Pipe, Row Of 5				$ 18.43
17	134762000		Switch, Pressure			Immediately	$ 111.28
18	131302800		Screw, Quadrex Ph, 10-16ab X 0.5			Immediately	$ 26.58
19	134402900		Screw, Phillips, 6-19 X 0.650				$ 29.77
21	134407900		Dampener, Vibration				$ 17.01
22	134602100		Wiring Harness, Interface Board				$ 56.44
23	137585600		Wire Harness, Main				$ 124.90
27	137166700		Panel, Control Console, White				$ 120.70
28	131205300		Screw, 10-16 X 0.750			Immediately	$ 12.10
32	134586500		Hose, Disp-to-bellows				$ 52.24
33	134737300		Clamp   (Replaces: 131306216)				$ 20.13
34	5304464772		Cable Tie, 5.60 Inch, Plastic   (Replaces: 5303321209)				$ 10.63
36	134371220		Valve, Dispenser, Ntc/short Tube			Immediately	$ 65.71
37	134372300		Hose, Disp-to-tub				$ 58.32
38	134372400		Clamp, Tub Hose				$ 64.49
39	134409320		Housing, Dispenser, W/valve, Cover   (Replaces: 134446120)			Immediately	$ 366.58
40	134372100		Tube, Disp-to-overflo				$ 50.87
41	134372200		O-ring, Overflow Tube				$ 13.74
44	134370200		Cover, Dispenser			Immediately	$ 41.11
45	134370000		Drawer, Dispenser			Immediately	$ 74.11
48	137168010		Handle/drawer Assy, White				$ 198.77
50	134409320		Conveyor, Dispenser, Lower   (Replaces: 134370100)			Immediately	$ 366.58
55	134553200		Lens, Digital Display				$ 12.65
56	134557300		Light Pipe, Digital Display				$ 19.06
57	134503300		Display, Digital				$ 52.24
80	131168200		Screw, 10-16ab X 0.375   (Replaces: 134547800)			Immediately	$ 14.18
NIA	134555800		Pad, Drawer Handle, Soft Touch				$ 4.67
NIA	134371300		Gasket, Disp-to-valve			Immediately	$ 51.04
NIA	134178901		Screw, Quadrex Ph, 8-18ab X 0.500   (Replaces: 131311900)				$ 14.89
NIA	134178901		Screw, 8-18ab X 0.455				$ 14.89
