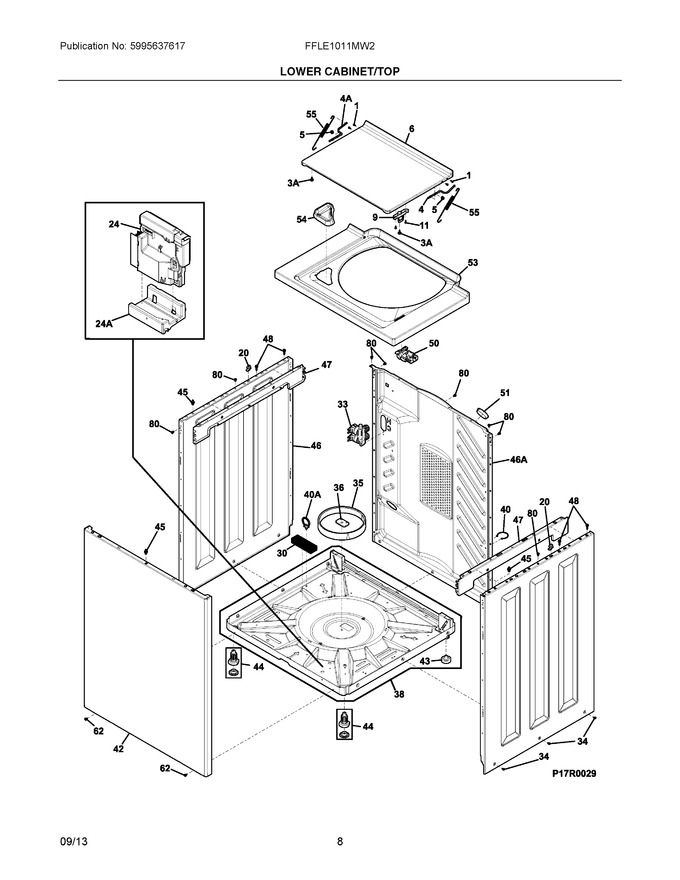

05 - Lower Cabinet/top
06 - Motor/tub
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 134203900 | Screw, Pan Hd Phillips, 6-32 X 0.337, Dog Point |
|
$ 10.85 | |||||
| 4 | 137469900 | Hinge Bar, Rh, Lc |
|
$ 43.24 | |||||
| 5 | 5304488483 | Grommet, Hinge, Acetal |
|
- | |||||
| 6 | 5303212872 | Lid, Washer, White |
|
Immediately | $ 345.16 | ||||
| 9 | 137513712 | Striker, Lid, White (Replaces: 137513710) |
|
Immediately | $ 13.01 | ||||
| 11 | 3204368 | Screw, Lid Strike Mtg, 6-20b X 0.375 |
|
$ 13.01 | |||||
| 20 | 3204374 | Pin, Slide, Side To Top |
|
$ 78.67 | |||||
| 24 | 137469113NH | Control, Motor, Main Pc Board (Replaces: 137469113) |
|
Immediately | $ 273.27 | ||||
| 30 | 131663500 | Cushion, Drain Hose, Base |
|
$ 23.00 | |||||
| 33 | 137353500 | Valve-2 Coil, 120v, Water |
|
Immediately | $ 108.20 | ||||
| 34 | 131205500 | Screw, Cab Body, 1/4-14 X 0.625, Side-to-base |
|
$ 13.46 | |||||
| 35 | 5308002385 | Snubber Ring |
|
$ 54.86 | |||||
| 36 | 3204380 | Shipping Block |
|
$ 12.29 | |||||
| 38 | 137364600 | Base Assembly, Self-leveling |
|
$ 229.53 | |||||
| 40 | 5303309503 | Clip, Drain Hose, Back Sheet |
|
$ 7.09 | |||||
| 42 | 137455410 | Panel, Front, Lc |
|
- | |||||
| 43 | 131422200 | Pad, Self Lvlg Leg, Rear |
|
Immediately | $ 56.70 | ||||
| 44 | 134548800 | Leg, Leveling W/pad (Replaces: 5303309673) |
|
Immediately | $ 30.20 | ||||
| 45 | 131346401 | Pin, Panel Locator, Front |
|
Immediately | $ 16.63 | ||||
| 46 | 137272610 | Panel, Washer Side, White, Lh/rh |
|
$ 213.10 | |||||
| 47 | 137304500 | Bracket, Marriage, Lh/rh Washer |
|
- | |||||
| 48 | 137329800 | Screw 12-24 Unc X .75 Hex, Washer |
|
- | |||||
| 50 | 137353300 | Lock, Lid, External Switch |
|
Immediately | $ 110.66 | ||||
| 51 | 131453000 | Bushing, Snap-in |
|
$ 10.63 | |||||
| 53 | 137190810 | Panel, Washer Top Lc, White |
|
$ 245.32 | |||||
| 54 | 5304488476 | Dispenser, Bleach, Lc |
|
$ 35.44 | |||||
| 55 | 134890500 | Spring, Lid Assist |
|
$ 19.85 | |||||
| 62 | 131302800 | Screw, 10-16ab X 0.500 (Replaces: 131258400) |
|
Immediately | $ 26.58 | ||||
| 80 | 131168200 | Screw, Pan Head, 8-18b X 0.31 |
|
Immediately | $ 14.18 | ||||
| 24A | 137469200 | Base, Motor Control |
|
$ 65.10 | |||||
| 3A | 134075500 | Bumper, Lid, Front |
|
$ 17.35 | |||||
| 40A | 134261300 | Clip, Drain Hose, Push-mount |
|
$ 12.05 | |||||
| 46A | 137273201 | Panel, Washer Back, Washed |
|
- | |||||
| 4A | 137470900 | Hinge Bar, Lh, Lc |
|
$ 43.24 | |||||
| NIA | 134178901 | Screw, 8-18ab X 0.455 |
|
$ 14.89 |
