SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet/drum


03 - Front Panel/lint Filter


04 - Controls/top Panel


05 - Motor


06 - Burner


07 - Wiring Diagram

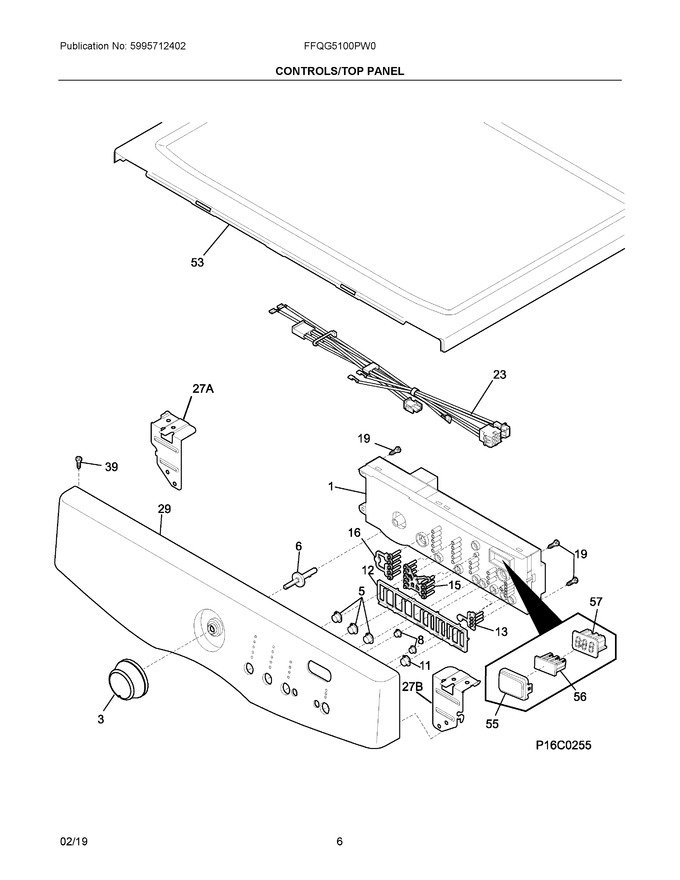

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	137070890		Control Board, Pc, With Housing				$ 271.06
3	137314625		Knob, Control				$ 53.19
5	137314725		Push Button, Round #3, 12				$ 29.66
6	134347700		Pin, Program Knob				$ 19.74
8	137320825		Push Button, Round #1, 7				$ 29.51
11	137314825		Push Button, Round #4				$ 35.12
12	137320500		Spring, Push Buttons				$ 30.29
13	134557501		Light Pipe, Start Group				$ 16.96
15	134552800		Light Pipe, 5 X 4				$ 18.43
16	134600000		Light Pipe, Row Of 5				$ 18.43
19	134402900		Screw, Phillips, 6-19 X 0.650				$ 29.77
23	134910205		Harness, Control				$ 89.62
29	137345410		Panel, Control Console, White				$ 169.47
39	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 14.18
53	134638510		Panel, Work Top, White				$ 217.22
55	137320700		Window, Digit Display				$ 32.03
56	134557300		Light Pipe, Digital Display				$ 19.06
57	134503300		Display, Digital				$ 52.24
23A	134710300		Harness, Wire		Appelez-nous	-
27A	134710900		Bracket, Control Panel, Left Hand, Mounting				$ 21.27
27B	134711000		Bracket, Control Panel, Right Hand, Mounting				$ 23.63
NIA	134926600		Damper, Sound				$ 14.18
NIB	137150200		Terminal Block Kit, Main				$ 31.90

    View Diagram in Separate Window       Print Part List
