01 - Cover Sheet


02 - Cabinet/drum


03 - Front Panel/lint Filter

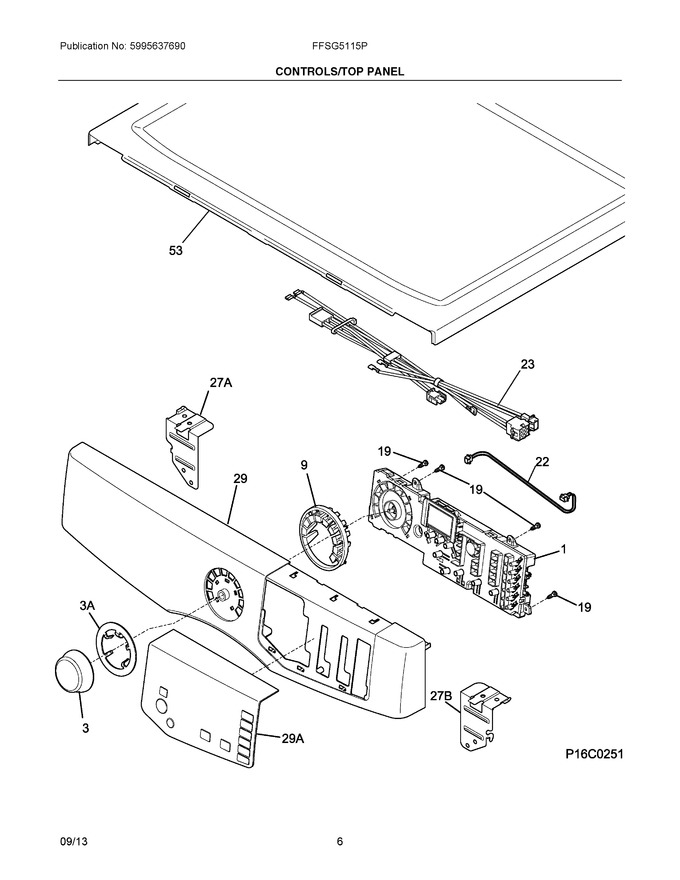

04 - Controls/top Panel


05 - Motor


06 - Burner


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	137260660		Control Board, Printed Circuit, With Housing		Appelez-nous	-
3	137286500		Knob, Control				$ 79.28
9	137286600		Pipe, Cycle Light				$ 50.98
19	134402900		Screw, Phillips, 6-19 X 0.650				$ 29.77
22	134790700		Harness, User Interface				$ 88.36
23	137476600		Harness				$ 138.29
29	137505311		Panel, Control Console, White		Appelez-nous	-
53	134638510		Panel, Work Top, White				$ 217.22
27A	134710900		Bracket, Control Panel, Left Hand, Mounting				$ 21.27
27B	134711000		Bracket, Control Panel, Right Hand, Mounting				$ 23.63
29A	137505210		Panel, Display, Decorated				$ 262.05
3A	137296900		Lens, Cycle Indicator				$ 21.89
NI	134926600		Damper, Sound				$ 14.18
