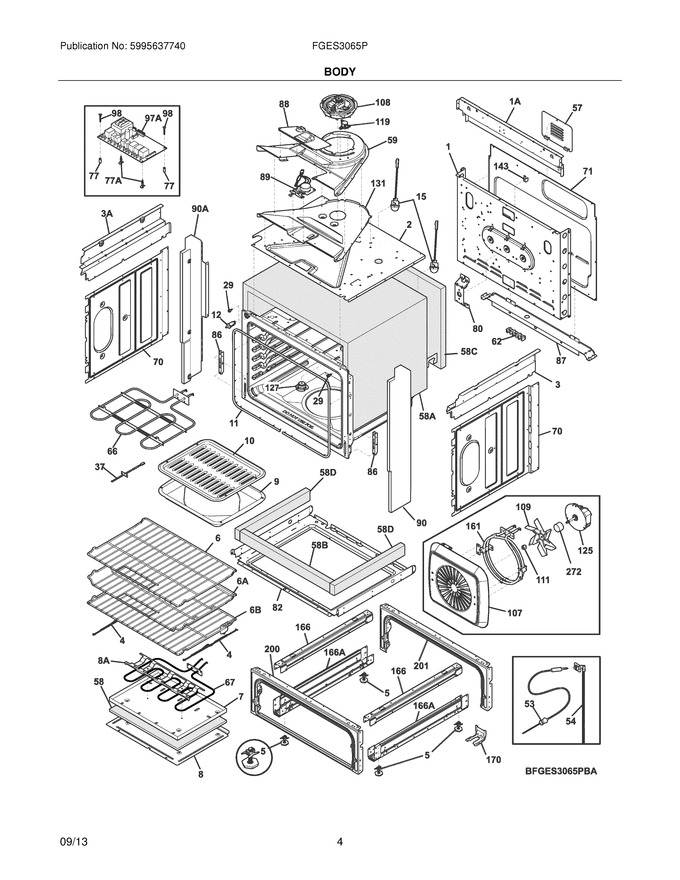

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	139017302		Panel,main Back		Appelez-nous	-
2	139028100		Shield,insulation ,top		Appelez-nous	-
3	318225230		Panel,bodyside ,upper Rh		Appelez-nous	-
4	318927600		Support,auto Rack ,(2)				$ 23.25
5	318175510		Screw,leveling ,w/tee Nut   (Replaces: 318175508)			Immediately	$ 24.26
6	139011600		Rack,oven ,w/handle				$ 124.74
7	318297303		Box,bake Element				$ 125.84
8	318359500		Panel,service				$ 140.09
9	316081900		Pan,broileroptional Access0ry				$ 65.89
10	316082000		Insert,broiler Panoptional Access0ry				$ 68.85
11	807545502		Seal,oven Door ,gray				$ 140.34
29	316517600		Spacer,oven Door				$ 12.05
57	316283600		Cover,access				$ 12.50
58	318294912		Insullation,bake Element				$ 97.17
59	139027600		Duct,cooling Fan ,upper				$ 85.76
62	5303935061		Terminal Block Kit		Appelez-nous	-
70	139000601		Shield,insulation ,sides ,(2)   (Replaces: 139000600)				$ 72.05
71	139014000		Shield,rear Wall ,lower		Appelez-nous	-
77	316247900		Spacer,power Board				$ 44.65
80	139021101		Bracket,support ,chassis/fan   (Replaces: 139021100)				$ 14.89
82	139008201		Shield,insulation ,lower		Appelez-nous	-
86	318561100		Receptacle,hinge ,(2)				$ 21.23
87	139020102		Bracket,cable Mtg.		Appelez-nous	-
88	5304506964		Cover,latch Motor   (Replaces: 139027900)				$ 24.10
90	5304511889		Panel,filler ,black ,rh   (Replaces: 318296904)				$ 74.42
98	5303289910		Screw,truss Sqdr ,8a X 1``				$ 5.67
107	139013903		Cover,convection Fan				$ 46.86
109	318398302		Blade,fan ,convection   (Replaces: 139009100)			Immediately	$ 29.11
111	316136600		Nut,fan Retainer			Immediately	$ 19.13
127	5304538693		Tube Assembly,vent ,w/catalyst   (Replaces: 139042600)			Immediately	$ 10.03
131	139027700		Duct,cooling Fan ,lower				$ 73.00
143	318172904		Support,wire		Appelez-nous	-
166	318298410		Bracket,base Support ,(2)				$ 75.83
170	5304486410		Kit,anti Tip ,w/brkt & Instru				$ 158.50
200	318335600		Frame & Wheel Assembly,black				$ 133.82
201	318298233		Frame,drawer ,black   (Replaces: 318298230)				$ 45.36
272	139021700		Tube,convection Fan				$ 17.72
1A	139004600		Panel,main Back ,upper				$ 67.62
3A	318225231		Panel,bodyside ,upper Lh		Appelez-nous	-
58A	139001700		Insulation,oven Wrapper ,top & Sides		Appelez-nous	-
58B	139020300		Insulation,front		Appelez-nous	-
58C	139020201		Insulation,oven Back		Appelez-nous	-
58D	139020301		Insulation,sides ,(2)		Appelez-nous	-
6A	139012400		Rack,oven ,offset ,w/handle				$ 181.34
6B	139013101		Rack,auto   (Replaces: 139013100)				$ 159.26
77A	316114100		Spacer				$ 60.96
8A	318313601		Bracket,bake Element				$ 71.45
90A	5304511890		Panel,filler ,black ,lh   (Replaces: 318296905)				$ 81.14
F107	807597603		Screw,self Tapping ,8-18 X 11/32 ,(4)				$ 9.22
F108	318575612		Motor,cooling Fan			Immediately	$ 196.61
F119	807144901		Thermostat,cooling Fan ,110 Deg.				$ 58.39
F12	316445501		Switch,oven Light ,door Frame				$ 90.01
F125	139008500		Motor,convection Fan			Immediately	$ 216.23
F15	5304528790		Lamp Assembly,round ,halogen ,25w   (Replaces: 139009000)			Immediately	$ 20.56
F161	8581390065036		Element,convection ,2500w   (Replaces: 139006500)				$ 47.63
F166	318298403		Bracket,base Support ,lower ,(2)		Appelez-nous	-
F37	5304504897		Sensor,oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
F53	5304504202		Probe,meat Temp ,red   (Replaces: 318601303)			Immediately	$ 106.19
F54	139017201		Receptacle Assy,meat Probe				$ 187.82
F66	5304521498		Element,broil ,6 Pass ,3400w   (Replaces: 139008900)			Immediately	$ 87.21
F67	5304521880		Element,bake ,2500w ,8 Pass   (Replaces: 139026700)			Immediately	$ 114.97
F89	5304528836		Motor,latch Assembly   (Replaces: 139078300)			Immediately	$ 76.34
F97A	316442112		Board,power ,relay			Immediately	$ 328.64
FNI	808195801		Harness,wiring ,communication		Appelez-nous	-
FNI	807641602		Harness,wiring ,main		Appelez-nous	-
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	3051050		Screw-shoulder				$ 12.29
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	318264200		Plate,grounding Strap				$ 23.51
NI	316205500		Nut,hex Flange ,3/8 10-32				$ 11.34
NI	316001017		Screw,ground Wire   (Replaces: 316001003)				$ 3.03
NI	318579001		Bracket,wire				$ 11.08
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
