SELECT A DIAGRAM

01 - Cover


03 - Backguard

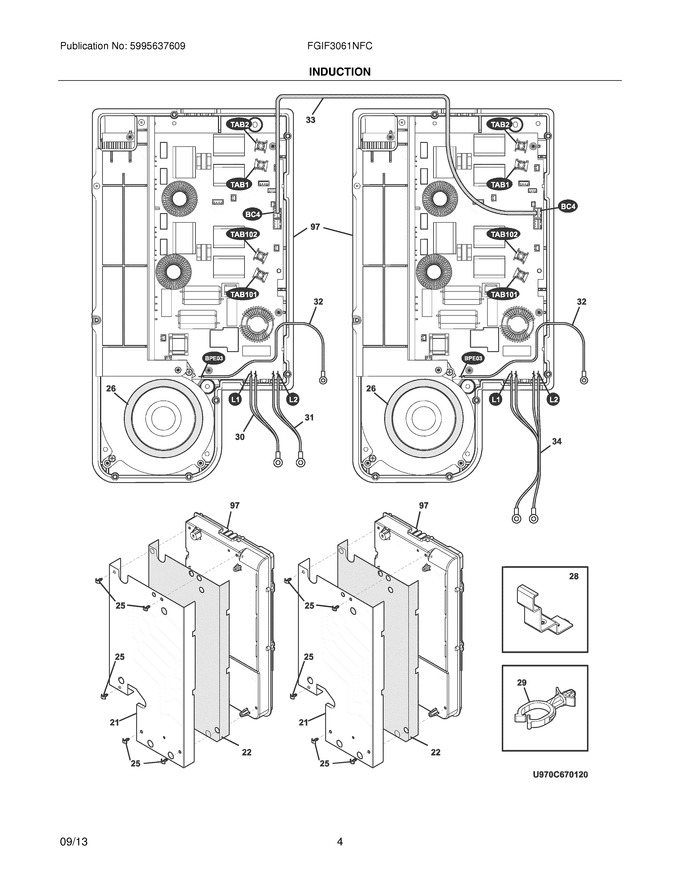

05 - Induction


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
21	316306200		Shield,heat		Appelez-nous	-
22	316306300		Insulation,housing		Appelez-nous	-
25	316303100		Fastener,mounting ,(6)		Appelez-nous	-
26	316302203		Seals,ring ,fans ,(2)				$ 20.58
28	316301900		Bracket,mounting ,induction Hsg.		Appelez-nous	-
29	316302100		Standoff,wiring		Appelez-nous	-
F30	5304519000		Harness,wiring ,l1 To X1-x2   (Replaces: 316525625)				$ 18.00
F31	5304518999		Harness,wiring ,l2 To X4-x5   (Replaces: 316525626)				$ 19.42
F32	316580517		Harness,wiring ,aux ,grnd Teis				$ 14.18
F33	5304519002		Harness,wiring ,auxiliary   (Replaces: 316580514)				$ 29.48
F34	5304519001		Harness,wiring ,aux ,l1-l2   (Replaces: 316580515)				$ 41.72
F97	316305401		Control Assembly,induction ,complete ,w/boards & Fan   (Replaces: 316305400)				$ 712.03
FNI	316303503		Harness Assembly,filter ,electrical ,w/capacitors				$ 102.21
NI	316114100		Spacer				$ 60.96
NI	316001017		Screw,ground Wire   (Replaces: 316001003)				$ 3.03
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
