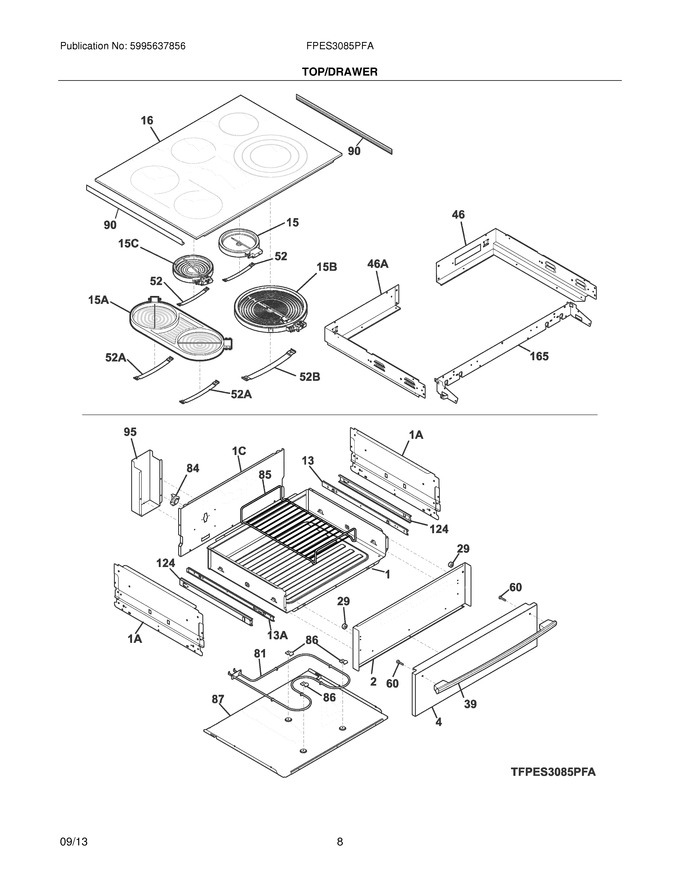

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318304404		Drawer,body Assembly				$ 195.56
2	318303907		Panel,drawer ,black ,inner				$ 124.90
4	318298829		Panel,drawer ,stainless ,front   (Replaces: 318298826)				$ 210.92
13	318259509		Glide,warmer ,inner Rh				$ 26.25
16	139033800		Smoothtop Assembly,glass ,black				$ 519.06
29	318147430		Bumper,(2)				$ 18.95
39	5304532118		Handle,door/drawer ,stainless   (Replaces: 316551500)				$ 112.88
46	318568200		Box,burner ,rh				$ 23.99
52	318122006		Spring,element Mtg ,small				$ 66.25
60	5303288572		Screw-handle Mtg		Appelez-nous	-
85	807328301		Rack,warmer Drawer   (Replaces: 318345601)				$ 87.21
86	316095800		Clip-hold Down				$ 9.93
87	318300102		Panel,warmer Drawer ,lower				$ 106.22
90	318368001		Channel,glass Protector ,(2)				$ 22.98
95	139008400		Shield,wire		Appelez-nous	-
124	316105501		Glide,outer/rh & Lh ,(2)				$ 90.72
165	318913300		Deflector,box ,front				$ 48.67
13A	318259508		Glide,warmer ,inner Lh				$ 27.88
1A	318300003		Panel,warmer Drawer ,side ,(2)				$ 56.13
1C	139022600		Panel,warmer Drawer ,rear		Appelez-nous	-
46A	318568201		Box,burner ,lh				$ 28.93
52A	318122008		Spring,element Mtg ,1800w/3000w				$ 90.80
52B	318122011		Spring,element Mtg ,1200w/1800w				$ 62.14
F15	318178110		Element,surface ,6`` ,1200 ,(2) ,radiant			Immediately	$ 122.86
F15A	807219901		Element,bridge ,1800/2600w			Immediately	$ 309.02
F15B	318297810		Element,surface ,triple ,800/1000/1200 ,6``/8``/11``			Immediately	$ 356.54
F15C	140273621015		Element,surface ,warmer ,100 W   (Replaces: 316289800)			Immediately	$ 35.77
F81	318255301		Element,warmer Drawer				$ 105.42
F84	318005108		Thermostat			Immediately	$ 81.14
FNI	808158601		Harness,wiring ,surface Units				$ 139.02
NI	5303289910		Screw,truss Sqdr ,8a X 1``				$ 5.67
NI	318163601		Cleaner-cooktop				$ 0.42
NI	316001017		Screw,ground Wire   (Replaces: 316001003)				$ 3.03
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	318591200		Washer,handle ,drawer		Appelez-nous	-
NI	318531701		Spacer,(2)				$ 12.05
