View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

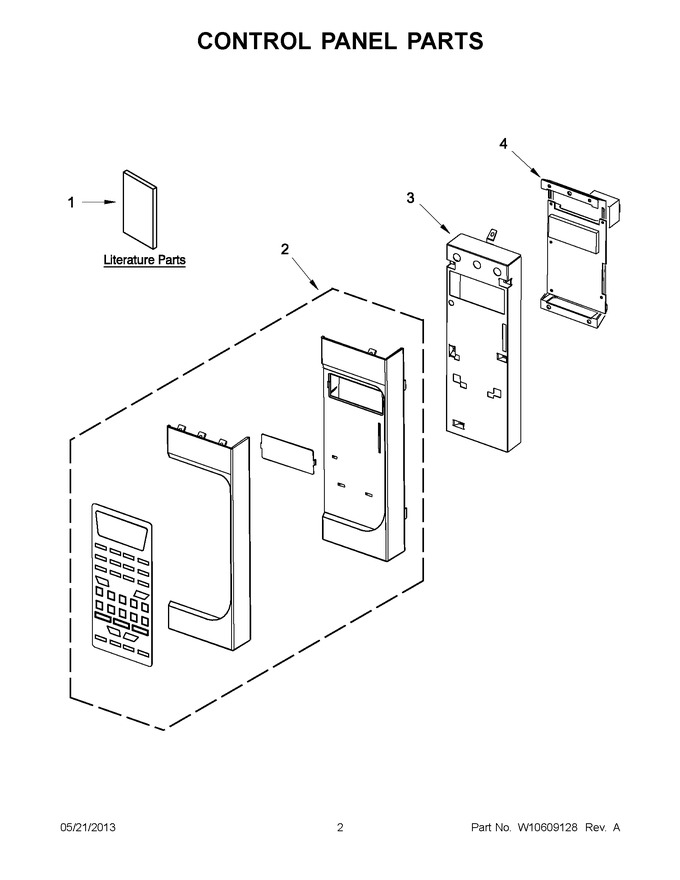

01 - Control Panel Parts
02 - Door Parts
03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10585265 | Tech Sheet |
|
- | |||||
| 1 | W10585282 | Use And Care Guide |
|
- | |||||
| 1 | W10247296 | Installation Instructions |
|
- | |||||
| 1 | W10197637 | Cook Guide Label |
|
- | |||||
| 2 | W10601292 | Panel Assembly, Control Includes Lens And Membrane Switch (white) |
|
- | |||||
| 2 | W10601281 | Panel Assembly, Control Includes Lens And Membrane Switch (black) |
|
- | |||||
| 2 | W10585808 | Panel Assembly, Control Includes Lens And Membrane Switch (stainless) |
|
- | |||||
| 3 | W10364246 | Bracket, Control |
|
$ 45.05 | |||||
| 4 | W10589865 | Microcomputer |
|
- |
