SELECT A DIAGRAM

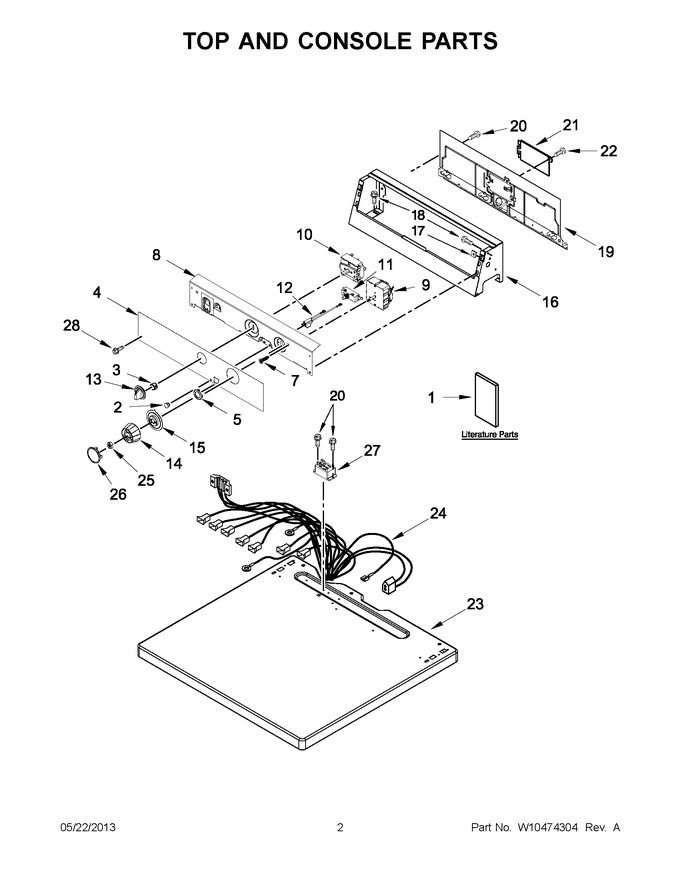

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10474275		Installation Instructions		Appelez-nous	-
1	W10396192		Wiring Diagram		Appelez-nous	-
2	WPW10133502		Lights, Indicator Assembly   (Replaces: W10133502)				$ 11.58
3	W10140928		Clip, Knob				$ 5.22
4	W10506035		Fascia   (Replaces: W10506025)		Appelez-nous	-
5	W10510149		Bezel - Pts			Immediately	$ 24.54
7	W10139100		Screw				$ 11.15
8	W10461071		Back Bracket, Non-coin		Appelez-nous	-
9	WPW10157945		Timer, Dryer   (Replaces: W10157945)				$ 273.56
10	W10327100		Switch, Cycle Selection				$ 184.35
11	W11097274		Switch, Pts   (Replaces: W10488054)				$ 60.71
12	W10139459		Lamp-indicator		Appelez-nous	-
13	W11643382		Knob   (Replaces: W10133507)			Immediately	$ 23.64
14	W11232017		Knob, Control   (Replaces: W10133505)				$ 11.13
15	W10133506		Skirt, Dial				$ 17.06
16	W11124005		Console   (Replaces: W10461095)				$ 204.36
17	WPW10131123		Nut, ``u``   (Replaces: W10131123)				$ 6.94
18	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.04
19	W10121161		Panel, Rear Console		Appelez-nous	-
20	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.01
21	W10601020		Cover, Terminal Block   (Replaces: W10096918)		Appelez-nous	-
23	WPW10136704		Top (white)   (Replaces: W10136704)				$ 234.39
24	W10386329		Harness, Main		Appelez-nous	-
25	W10155650		Nut, Hex				$ 12.03
26	WPW10133501		Cap, Knob   (Replaces: W10133501)				$ 54.76
27	WP1188043		Relay, Heater 230v   (Replaces: 1188043)				$ 99.12
28	WPW10131119		Screw   (Replaces: W10386302)				$ 6.26

    View Diagram in Separate Window       Print Part List
