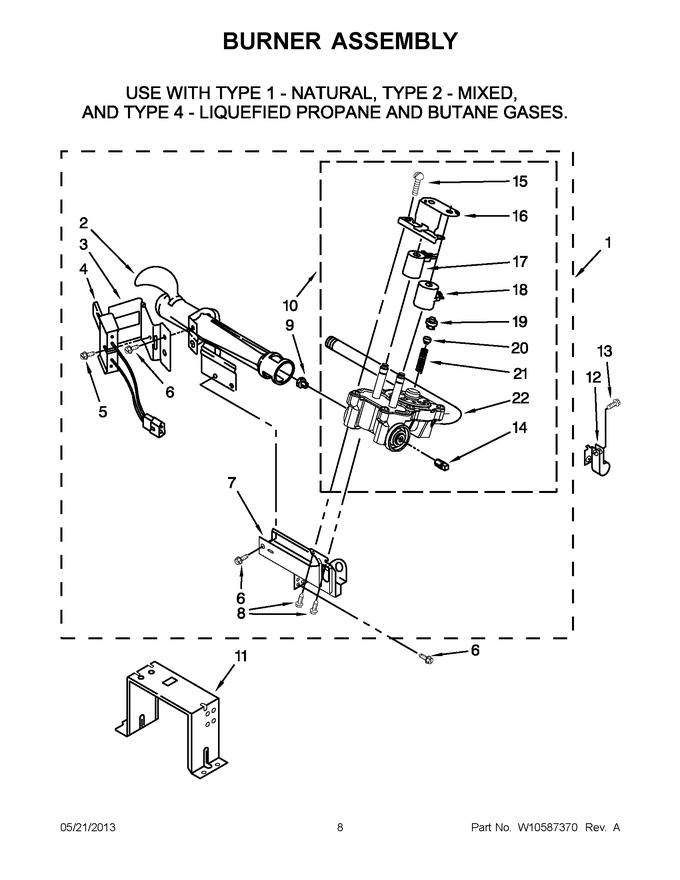

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10096909		Burner Assembly 50 Hz. (type 1 And 2)		Appelez-nous	-
2	WP693140		Tube, Burner   (Replaces: 688617)				$ 161.89
3	WP694298		Bracket, Ignitor   (Replaces: 694298)				$ 23.33
4	279311		Ignitor   (Replaces: 686590)			Immediately	$ 71.01
5	WPW10366705		Screw   (Replaces: 3393909)				$ 6.75
6	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.07
7	3389871		Base, Burner				$ 71.36
8	WP693995		Screw   (Replaces: 3387057)			Immediately	$ 6.47
9	WP234868		Orifice, Burner (type 4 (propane))   (Replaces: 234868)				$ 31.37
9	234660		Orifice, Burner Type 1 (natural)				$ 4.42
10	WP8281918		Valve, Gas 50 Hz. (complete)   (Replaces: 8281918)				$ 207.73
11	3389888		Bracket, Support   (Replaces: 3389889)		Appelez-nous	-
12	3978776		Bracket, Gas Pipe		Appelez-nous	-
13	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.01
14	W10295523		Pipe Plug		Appelez-nous	-
15	694421		Screw, Coil		Appelez-nous	-
16	694538		Bracket, Coil				$ 72.05
17	WP307930		Coil, 50 Hz.   (Replaces: 695297)				$ 95.14
18	WPY307931		Coil, 50 Hz. (split)   (Replaces: 695298)				$ 104.11
19	WP694424		Leak, Limiter   (Replaces: 694424)				$ 31.11
20	WP694423		Screw, Regulator Adjustment   (Replaces: 694423)				$ 6.26
21	WP694422		Spring, Regulator   (Replaces: 694422)				$ 21.84
22	W10097610		Pipe, Gas Supply		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10571757		Conversion Kit, Lp   (Replaces: W10233219)				$ 32.40

    View Diagram in Separate Window       Print Part List
