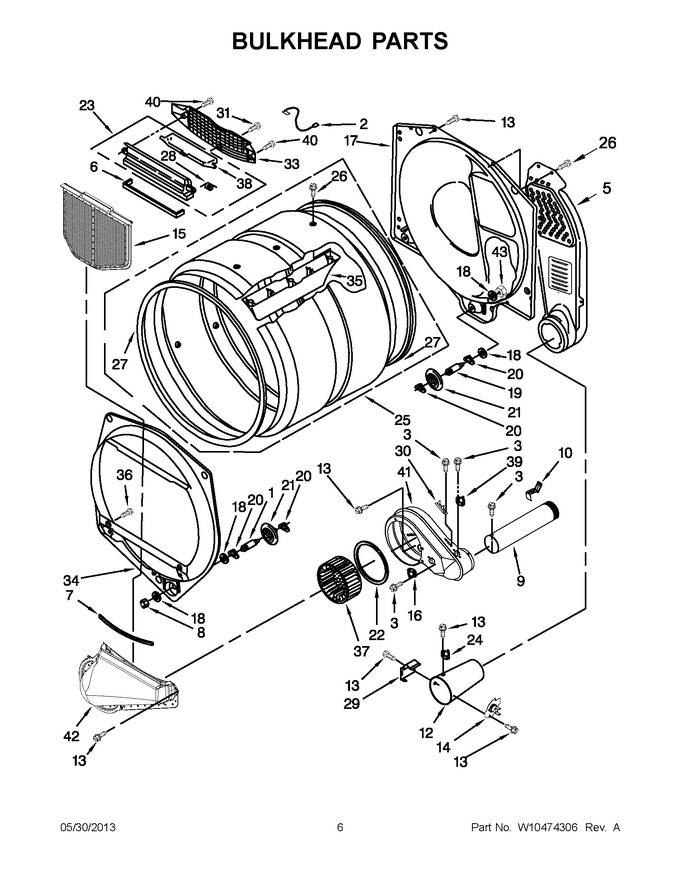

03 - Bulkhead Parts
04 - W10096909 Burner Assembly Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, Drum Roller - Right Hand Thread (Replaces: W10359271) |
|
Immediately | $ 55.99 | ||||
| 2 | WP3401707 | Jumper, Wire (Replaces: 3401707) |
|
$ 74.22 | |||||
| 3 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.47 | ||||
| 5 | W11168650 | Assembly, Air Duct (Replaces: 3394346) |
|
$ 97.66 | |||||
| 6 | WP697813 | Seal, Outlet Housing (Replaces: 697813) |
|
Immediately | $ 7.17 | ||||
| 7 | WP697813 | Seal, Drum Front (Replaces: 697814) |
|
Immediately | $ 7.17 | ||||
| 8 | W11812294 | Nut, Hex (Replaces: 3934666) |
|
$ 10.94 | |||||
| 9 | W10121167 | Pipe, Exhaust |
|
- | |||||
| 10 | W11684573 | Clip, Exhaust (Replaces: 8572105) |
|
$ 7.00 | |||||
| 12 | WP8573824 | Funnel-burner (Replaces: 8573824) |
|
$ 158.82 | |||||
| 13 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 7.04 | ||||
| 14 | WPW10181549 | Cut-off, Thermal (Replaces: W10181549) |
|
$ 96.58 | |||||
| 15 | W10120998 | Screen, Lint (Replaces: W10596627) |
|
$ 60.44 | |||||
| 16 | W10206196 | Thermostat 155º F Electronic |
|
- | |||||
| 17 | W11299300 | Bulkhead, Rear (Replaces: 3387809) |
|
$ 315.10 | |||||
| 18 | W11236646 | Washer (Replaces: 3387459) |
|
Immediately | $ 12.63 | ||||
| 19 | WPW10359272 | Shaft, Drum Roller - Left Hand Thread (Replaces: W10359272) |
|
Immediately | $ 52.63 | ||||
| 20 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 7.92 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: W10314171) |
|
Immediately | $ 25.65 | ||||
| 22 | WP697770 | Seal, Plate Cover (Replaces: 697770) |
|
Immediately | $ 7.09 | ||||
| 23 | W11197085 | Housing, Outlet (Replaces: W10181927) |
|
$ 38.57 | |||||
| 24 | W10853395 | Thermostat, High Limit (Replaces: W10206703) |
|
- | |||||
| 25 | W10545923 | Assembly, Drum |
|
$ 393.08 | |||||
| 26 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 6.98 | ||||
| 27 | 280114 | Seal, Drum (Replaces: W10521118) |
|
Immediately | $ 63.74 | ||||
| 28 | WP3394986 | Spring, Lint Screen Door (Replaces: 3394986) |
|
$ 76.13 | |||||
| 29 | WP338906 | Sensor, Radiant (Replaces: 338906) |
|
Immediately | $ 46.72 | ||||
| 30 | WP3392519 | Fuse, Thermal (91 C) (Replaces: 3392519) |
|
Immediately | $ 22.46 | ||||
| 31 | WP488729 | Screw (Replaces: 695240) |
|
Immediately | $ 7.01 | ||||
| 33 | W11086603 | Grille, Outlet (Replaces: W10181926) |
|
Immediately | $ 31.63 | ||||
| 34 | WP697557 | Bulkhead, Front (Replaces: 697557) |
|
$ 187.23 | |||||
| 35 | W11782150 | Baffle, Drum (Replaces: 697693) |
|
Immediately | $ 81.92 | ||||
| 36 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.08 | ||||
| 37 | WPW10349492 | Wheel, Blower (Replaces: W10349492) |
|
Immediately | $ 108.30 | ||||
| 38 | W10181925 | Door, Lint Screen |
|
$ 16.25 | |||||
| 39 | WPW10194158 | Thermostat, 140° F Cycling (Replaces: W10194158) |
|
$ 71.32 | |||||
| 40 | WP3387230 | Screw (Replaces: 3387230) |
|
Immediately | $ 7.69 | ||||
| 41 | W10888146 | Housing, Blower (Replaces: W10119255) |
|
$ 91.53 | |||||
| 42 | WPW10128606 | Assembly, Lint Duct (Replaces: W10286419) |
|
$ 186.41 | |||||
| 43 | WPW10080190 | Nut, Hex (left Hand Thread) (Replaces: W10001120) |
|
Immediately | $ 7.64 |
