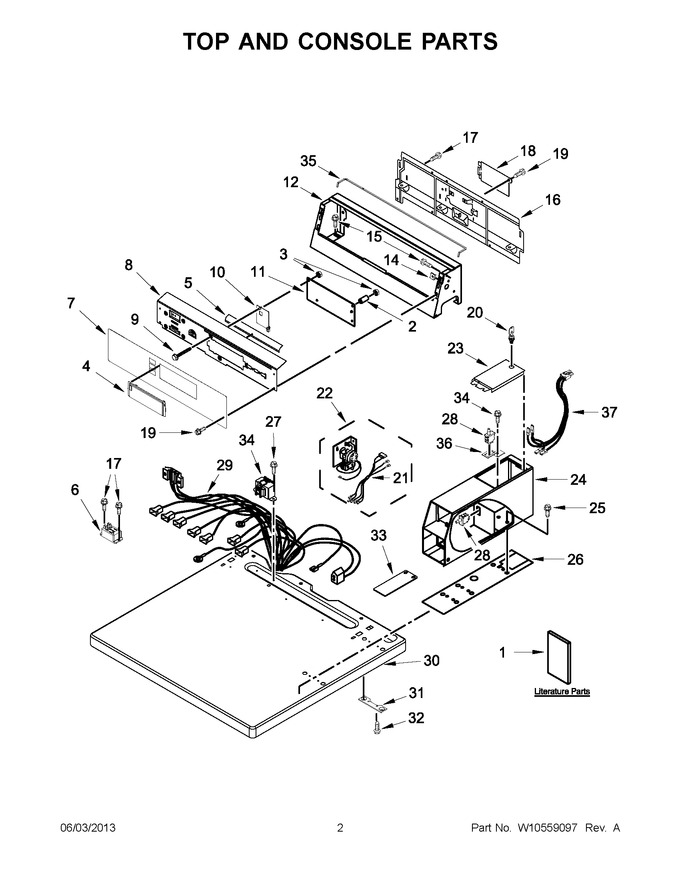

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - W10096909 Burner Assembly Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10474275 | Installation Instructions |
|
- | |||||
| 1 | W10396191 | Wiring Diagram |
|
- | |||||
| 2 | W11117166 | Standoff, Circuit Board (Replaces: W10133514) |
|
- | |||||
| 3 | WPW10139046 | Nut (Replaces: W10139046) |
|
$ 7.91 | |||||
| 4 | W11637765 | Cover, Display (Replaces: W10267645) |
|
$ 59.65 | |||||
| 5 | W10133515 | Deflector Switch Assembly |
|
- | |||||
| 6 | WP1188043 | Relay, Heater 230v (Replaces: 1188043) |
|
$ 99.12 | |||||
| 7 | W10506033 | Fascia (Replaces: W10461123) |
|
- | |||||
| 8 | W10461121 | Bracket, Back |
|
- | |||||
| 9 | W11117300 | Screw (Replaces: W10137322) |
|
- | |||||
| 10 | W10161476 | Shield, Probing |
|
$ 70.65 | |||||
| 11 | WPW10471563 | Control Board (Replaces: W10471563) |
|
$ 386.74 | |||||
| 12 | W10461094 | Console |
|
$ 159.97 | |||||
| 14 | WPW10131123 | Nut, ``u`` (Replaces: W10131123) |
|
$ 6.94 | |||||
| 15 | WPW10139210 | Screw (Replaces: W10139210) |
|
$ 6.75 | |||||
| 16 | W10135273 | Panel, Rear (upper) |
|
- | |||||
| 17 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.01 | ||||
| 18 | W10601020 | Cover, Terminal Block (Replaces: W10096918) |
|
- | |||||
| 19 | WPW10131119 | Screw (Replaces: W10386302) |
|
$ 6.26 | |||||
| 20 | W11315637 | Assembly, Cam & Security Lock (Replaces: 8316526) |
|
Immediately | $ 36.42 | ||||
| 21 | W10111030 | Harness, Timer |
|
- | |||||
| 22 | WPW10135271 | Timer & Harness Assembly 50 Hz. (Replaces: W10135271) |
|
$ 325.69 | |||||
| 23 | W11283272 | Assembly, Service Door (Replaces: 3351136) |
|
$ 95.29 | |||||
| 24 | WPW10529176 | Meter Case (Replaces: W10529176) |
|
$ 273.48 | |||||
| 25 | W11715721 | Bolt, Meter Case Mounting (Replaces: 3349065) |
|
$ 6.41 | |||||
| 26 | WP3954812 | Cushion, Meter Case (Replaces: 3954812) |
|
$ 27.99 | |||||
| 27 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 7.04 | ||||
| 28 | W11123448 | Switch, Vault & Service Door (Replaces: W10133289) |
|
- | |||||
| 29 | W10386331 | Harness, Main |
|
- | |||||
| 30 | WPW10136707 | Top (white) (Replaces: W10136707) |
|
$ 320.56 | |||||
| 31 | 3347825 | Plate, Mounting |
|
- | |||||
| 32 | W10841059 | Screw (Replaces: 98445) |
|
- | |||||
| 33 | WPW10153513 | Extension (Replaces: W10153513) |
|
$ 74.57 | |||||
| 34 | W10751202 | Transformer, 240-22.5 Vac (Replaces: W10277669) |
|
$ 193.15 | |||||
| 35 | WPW10157932 | Seal, Foam (Replaces: W10157932) |
|
Immediately | $ 7.25 | ||||
| 36 | W11204533 | Bracket, Service Switch (Replaces: W10133508) |
|
- | |||||
| 37 | W11096090 | Wire, Harness Sensor Switch (Replaces: W10211244) |
|
$ 11.48 |
