SELECT A DIAGRAM

01 - Lower Cabinet And Front Panel Parts

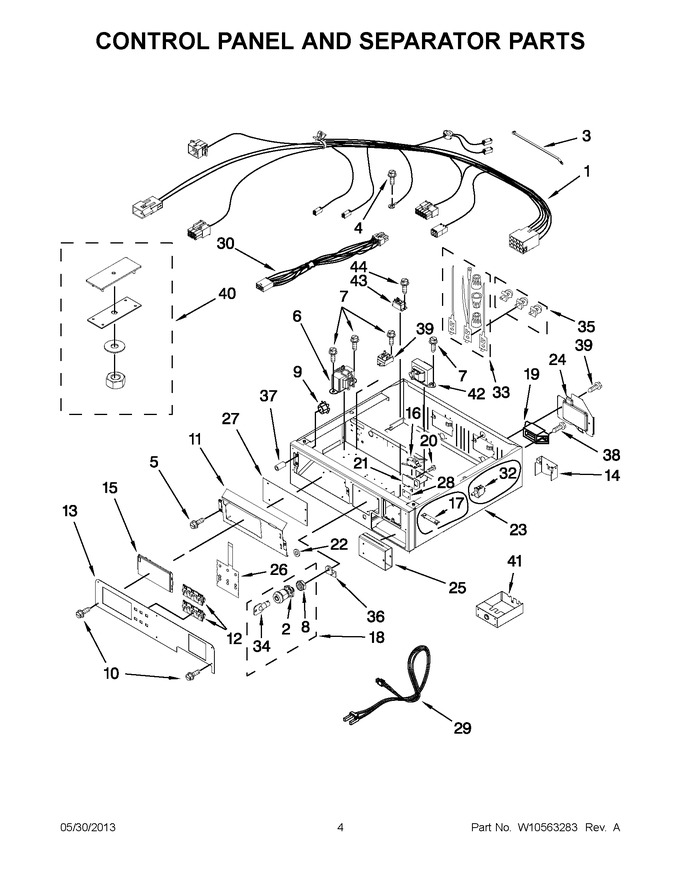

02 - Control Panel And Separator Parts


03 - Upper Cabinet And Front Panel Parts


04 - Upper And Lower Bulkhead Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10169691		Harness, Collar		Appelez-nous	-
2	W11395752		Nut, Hex   (Replaces: W10139762)				$ 11.74
3	WPW10155270		Tie, Cable   (Replaces: 8529895)				$ 5.55
4	W10850756		Screw   (Replaces: 8533974)				$ 6.98
5	W10756178		Screw   (Replaces: W10140652)				$ 5.39
6	W10237957		Transformer 120 - 22.5 Vac		Appelez-nous	-
7	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.04
8	WPW10133264		Nut, Hex   (Replaces: W10177242)				$ 125.12
9	WPW10139046		Nut   (Replaces: W10139046)				$ 7.91
10	WPW10131119		Screw   (Replaces: W10386302)				$ 6.26
11	W10163677		Plate, Control Mounting		Appelez-nous	-
12	WPW10424308		Button, Push   (Replaces: W10131113)			Immediately	$ 18.38
13	W10135192		Facia Console		Appelez-nous	-
14	W10192090		Bracket, Terminal Block				$ 92.91
15	WPW10133268		Cover, Display   (Replaces: W10133268)				$ 63.37
16	W10133281		Switch, Service Access		Appelez-nous	-
17	W10159907		Assembly, Mounting Strap Weld		Appelez-nous	-
18	WPW10133264		Assembly, Lock Access Door   (Replaces: W10133264)				$ 125.12
19	W11690172		Terminal-block   (Replaces: W10237321)				$ 340.88
20	3400408		Screw		Appelez-nous	-
21	W10160652		Bracket-switch		Appelez-nous	-
22	2006252		Washer, Nylon		Appelez-nous	-
23	WPW10159849		Collar   (Replaces: W10159849)				$ 465.70
24	W10684155		Cover, Terminal Block   (Replaces: W10196677)		Appelez-nous	-
25	W11204020		Assembly, Vault Body   (Replaces: W10133258)				$ 361.48
26	WPW10133278		Membrane Switch Assembly   (Replaces: W10133278)				$ 104.73
27	WPW10167611		Control Board   (Replaces: W10167611)				$ 376.80
28	W10151156		Shield, Sensor Switch		Appelez-nous	-
29	W10226074		Coin-optic Sensor Assembly		Appelez-nous	-
30	W10111027		Jumper, Transformer				$ 41.23
32	W11123448		Switch, Vault & Service Door   (Replaces: W10133289)		Appelez-nous	-
33	279318		Terminal, Brass & Tinned (includes Terminal Block Screw Kit)			Immediately	$ 90.89
34	WPW10140858		Key, Access Door   (Replaces: W10140858)			Immediately	$ 19.89
35	279393		Screw Kit, Terminal Block			Immediately	$ 42.63
36	W10233256		Cam, Locking Iec				$ 66.19
37	W11117166		Standoff, Circuit Board   (Replaces: W10133514)		Appelez-nous	-
38	W11676450		Screw   (Replaces: 3400000)				$ 12.65
39	W10133335		Relay, Motor				$ 40.14
40	W11416034		Kit-coin Box, Security (to Be Serviced As A Kit)   (Replaces: W10169579)				$ 113.40
41	W11204019		Box, Coin   (Replaces: W10133248)				$ 140.45
42	W10237958		Transformer, 240 - 120 Vac		Appelez-nous	-
43	W11553481		Relay, Heater   (Replaces: W10258680)		Appelez-nous	-
44	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.01

    View Diagram in Separate Window       Print Part List
