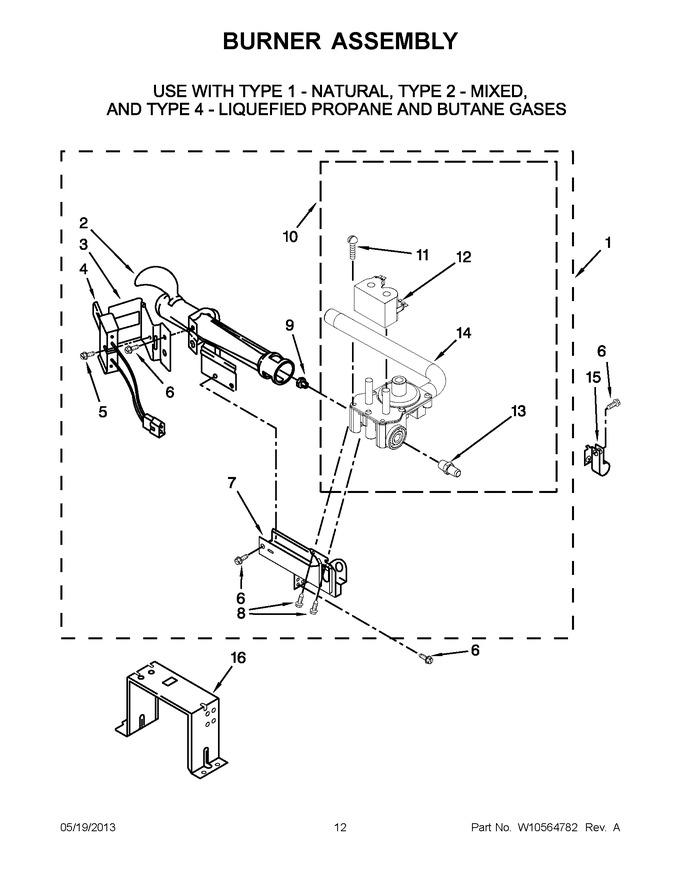

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10096909		Assembly, Burner   (Replaces: W10469829)		Appelez-nous	-
2	WP693140		Tube, Burner   (Replaces: 688617)				$ 161.89
3	WP694298		Bracket, Ignitor   (Replaces: 694298)				$ 23.33
4	279311		Ignitor   (Replaces: 686590)			Immediately	$ 71.01
5	WPW10366705		Screw   (Replaces: 3393909)				$ 6.75
6	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.07
7	3389871		Base, Burner				$ 71.36
8	WP693995		Screw   (Replaces: 3387057)			Immediately	$ 6.47
9	WP234868		Orifice, Burner (type 4 (propane))   (Replaces: 234868)				$ 31.37
9	234660		Orifice, Burner Type 1 (natural)				$ 4.42
10	W10096909		Assembly, Valve   (Replaces: W10304603)		Appelez-nous	-
11	326049536		Screw		Appelez-nous	-
12	W11818018		Coil, 50 Hz.   (Replaces: W10340251)		Appelez-nous	-
13	W10304608		Tap, Pressure		Appelez-nous	-
14	W10097610		Pipe, Gas Supply		Appelez-nous	-
15	3387561		Clamp, Pipe		Appelez-nous	-
16	3389888		Bracket, Support   (Replaces: 3389889)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10181947		Kit Fr/be Conversion		Appelez-nous	-
