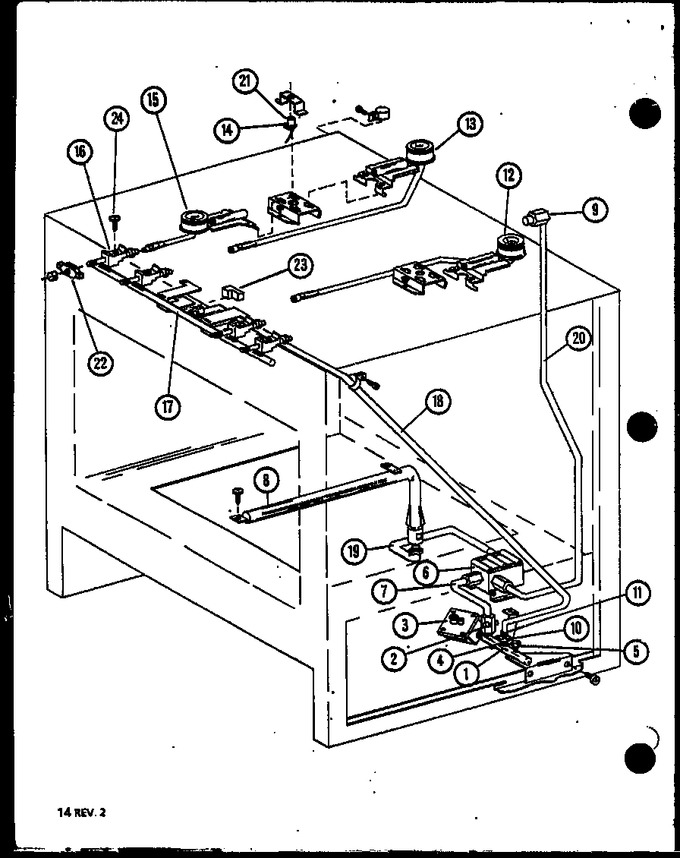

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	R0705765		Inlet		Appelez-nous	-
2	R0710098		Valve, Shut-off		Appelez-nous	-
3	R0710099		Regulator		Appelez-nous	-
4	R0705764		Straight Fitting		Appelez-nous	-
5	R0705761		Pipe Plug, 1/8 N.p.t.		Appelez-nous	-
6	R0710096		Valve, Gas		Appelez-nous	-
7	R0705762		Tubing, 3/8`` Od, 10 Ft.		Appelez-nous	-
8	R0710090		Oven Burner		Appelez-nous	-
9	R0710088		Orifice Spud, Nat. Gas No.50		Appelez-nous	-
9	R0710089		Orifice, No.58 Lp		Appelez-nous	-
10	R0701017		3/8`` Compression Nut		Appelez-nous	-
11	R0705766		3/8`` Compression Sleeve		Appelez-nous	-
12	R0710094		Top Burner Rr		Appelez-nous	-
13	R0710095		Top Burner Lr		Appelez-nous	-
14	WPY0070927		Mounting Clip   (Replaces: R0701530)				$ 6.85
15	R0710093		Top Burner Front		Appelez-nous	-
16	R0710105		Valve, Top Burner		Appelez-nous	-
17	R0710097		Manifold Pipe		Appelez-nous	-
18	R0705763		Tubing, Inlet To Manifold		Appelez-nous	-
19	R0710092		Hood And Tubing Assembly		Appelez-nous	-
20	R0710091		Orifice And Tubing Assembly		Appelez-nous	-
21	R0710101		Electrode - 22``		Appelez-nous	-
21	R0710102		Electrode 29``		Appelez-nous	-
22	R0702536		Spark Switch		Appelez-nous	-
NI	R0700071		Screw		Appelez-nous	-
