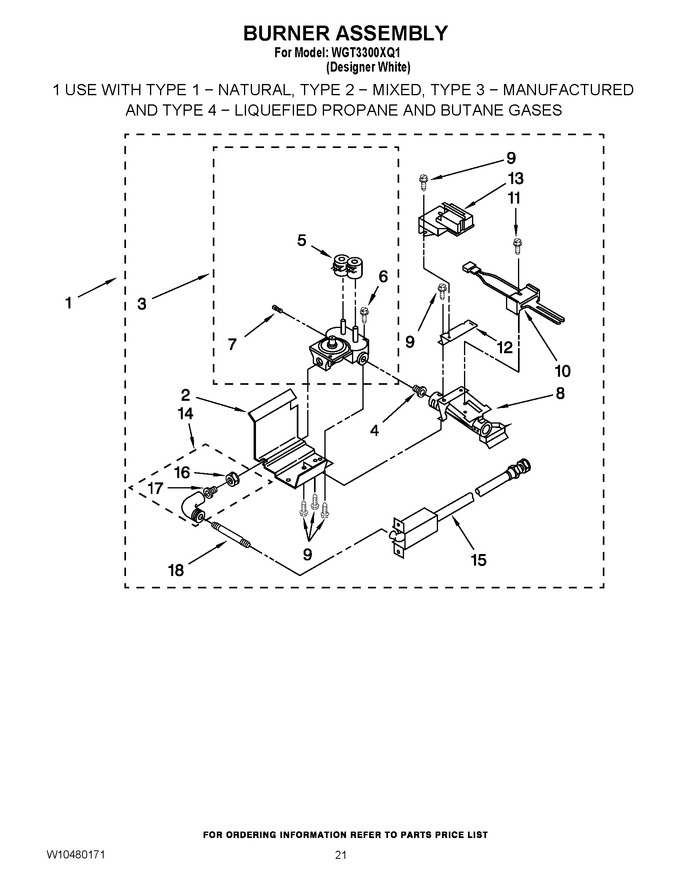

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10449296		Burner Assembly 60 Hz.		Appelez-nous	-
2	3391699		Base, Burner		Appelez-nous	-
3	279889		Valve, 60 Hz.   (Replaces: W10304601)				$ 200.94
4	3394360		Orifice, Natural Gas		Appelez-nous	-
5	WPW10368268		Coil, 60 Hz.   (Replaces: W10368268)				$ 159.92
6	326049536		Screw		Appelez-nous	-
7	W10295523		Pipe, Plug		Appelez-nous	-
8	8578392		Burner		Appelez-nous	-
9	WP693995		Screw, 8-18 X 3/8   (Replaces: 3387057)			Immediately	$ 6.47
10	279311		Ignitor   (Replaces: 686590)			Immediately	$ 71.01
11	WPW10366705		Screw And Washer 8-32 X 1   (Replaces: 3393909)				$ 6.75
12	697409		Bracket, Sensor		Appelez-nous	-
13	WP338906		Sensor, Radiant   (Replaces: 338906)			Immediately	$ 46.72
14	3406051		Elbow Union Assembly				$ 90.15
15	3391118		Supply Line (gas)		Appelez-nous	-
16	233076		Nut				$ 43.19
17	3393767		Pipe				$ 123.97
18	W10110398		Pipe, Supply		Appelez-nous	-
NI	3392235A		Conversion Kit   (Replaces: 3392235)			Immediately	$ 70.11
