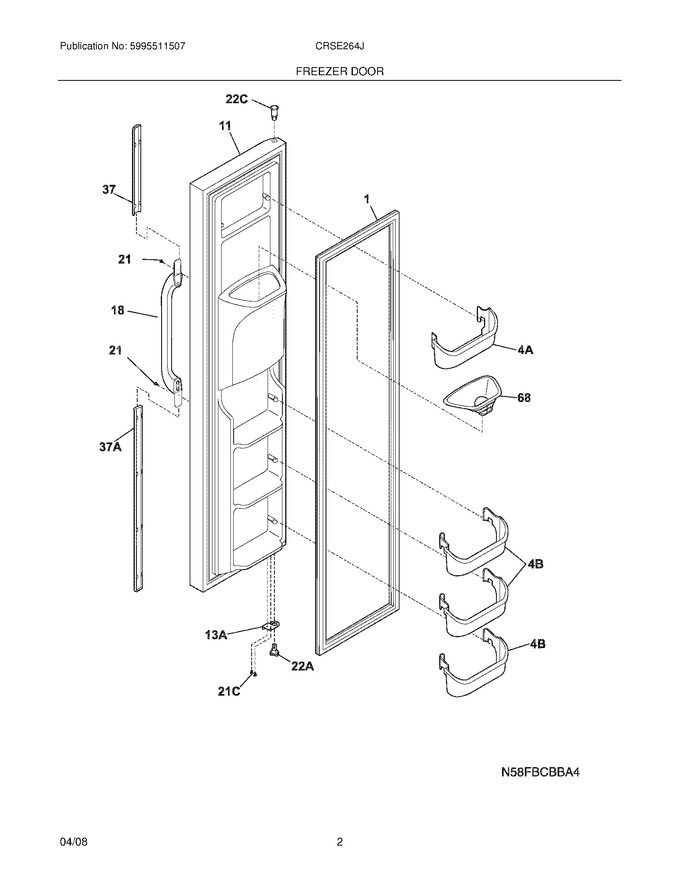

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241786014		Freezer Door Gasket, Grey, Magnetic   (Replaces: 241786006)				$ 95.17
11	241615183		Door-frzr,black ,complete Assy		Appelez-nous	-
18	218668404		Handle-door,black		Appelez-nous	-
21	5304465886		Screw,no.8-18 X 9/16 ,truss Hd		Appelez-nous	-
37	218811651		Trim-handle,black ,upper		Appelez-nous	-
68	241525101		Chute-ice				$ 82.25
13A	240581906		Door Stop,black ,frzr				$ 73.00
21C	5303323137		Screw,10-32 X 1/2   (Replaces: 240598402)				$ 11.88
22A	242000502		Bearing-hinge(frz),black ,closer   (Replaces: 240328204)				$ 7.18
22C	240328404		Bearing-hinge,black ,upper				$ 22.87
37A	218811650		Trim-handle,black ,lower		Appelez-nous	-
37A	215782300		Lock-handle Trim,snap-in				$ 34.49
4A	240334201		Bin-door,frzr-upper				$ 67.21
4B	240351601		Bin-door			Immediately	$ 58.73
NI	240451503		Screw,ind Hex Wshr Hd ,8-32 X 0.375 ,trilobe				$ 3.79
NI	5304521763		Harness-wiring,door   (Replaces: 240552101)				$ 85.69
NI	241806601		Connector-water,straight			Immediately	$ 70.56
NI	5303918256		Dispenser Heater Kit				$ 474.16
