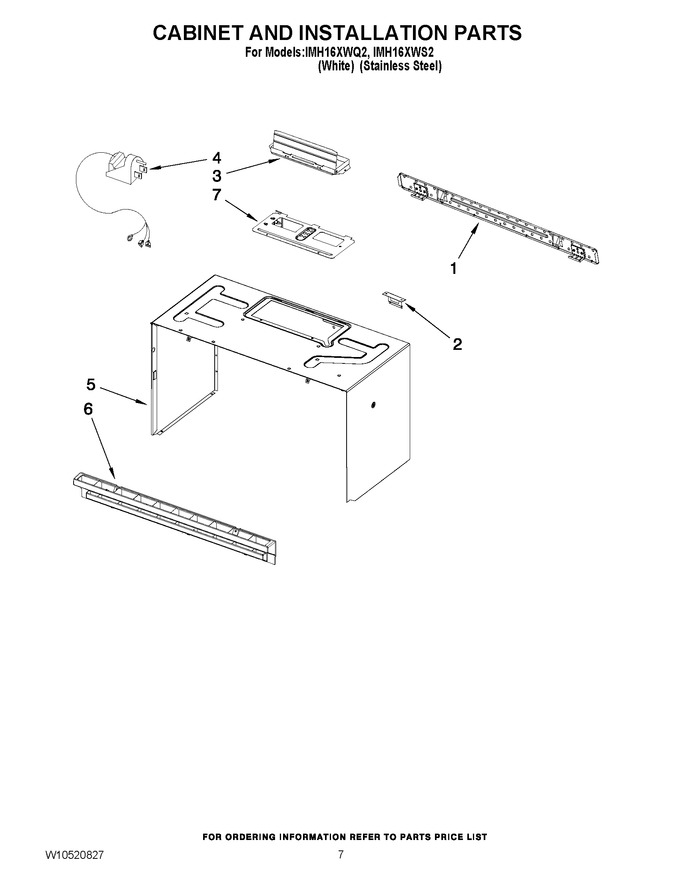

01 - Control Panel Parts


02 - Door Parts


03 - Interior And Ventilation Parts


04 - Air Flow Parts


05 - Magnetron And Turntable Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10269225		Plate, Mounting   (Replaces: W10269225)				$ 69.20
2	8206385		Support, Wire Clip				$ 31.89
3	W10843943		Damper Assembly   (Replaces: 8206442)			Immediately	$ 65.74
4	W10708076		Cord, Power   (Replaces: W10313271)				$ 18.48
5	W10269453		Case, Outer (white)				$ 117.00
5	W10269454		Case, Outer (stainless Model)				$ 126.39
6	W10111339		Grille, Vent (white Model)		Appelez-nous	-
6	W10313273		Grille, Vent (stainless Model)				$ 66.33
7	W10210832		Plate, Damper				$ 6.68
NI	8205948		Installation, Hardware				$ 23.06
NI	8206002		Template, Upper				$ 6.99
NI	WP8169704		Screw, Top Mountng   (Replaces: 8169704)			Immediately	$ 10.07
NI	W10399320		Main Harness				$ 101.91
NI	W10163438		Ground Wire Assy		Appelez-nous	-
NI	W10539841		Hdlmp/tt Wire Assy   (Replaces: W10269479)				$ 17.98
NI	W10539842		Hv Trnsfmr Wr Assy   (Replaces: W10163436)				$ 14.31
NI	W10470168		Harness Wire, Ntc   (Replaces: W10163439)				$ 36.63
NI	W10539840		Ground Wire Pcba   (Replaces: 8205696)				$ 21.50
