Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 323758 Wire Cover Appelez-nous -
2 323760 Air Chamber Cover Appelez-nous -
3 336592 Oven Back Appelez-nous -
4 97047 Clip (for Key 5) Appelez-nous -
5 232132 Range Service Cord Appelez-nous -
6 232150 Disconnect Appelez-nous -
7 315233 Channel Trim - Lt. Or Rt. Appelez-nous -
8 WP112432 Screw 10-32x7/16``   (Replaces: 311484) Special Order $ 7.16

9 336622 Side Trim-front Frame (left) Appelez-nous -
9 336623 Side Trim-front Frame (right) Appelez-nous -
10 281160 Accordian Rivet Appelez-nous -
11 327621 Screw 6-20x3/8`` Appelez-nous -
12 302862 Spacer-side Trim (2 Req) Appelez-nous -
13 323756 Body Side (right) Appelez-nous -
13 323755 Body Side (left) Appelez-nous -
14 327981 Cover Plate Appelez-nous -
15 323750 Burner Box Appelez-nous -
16 281418 Baffle-oven Bottom Appelez-nous -
17 319446 Oven Bottom W/baffle Appelez-nous -
18 323766 Cover Plate Appelez-nous -
19 335851 Sensor Appelez-nous -
20 336639 Insulation-oven Back Appelez-nous -
21 313321 Insulation-oven Top & Back (1 Piece) Appelez-nous -
22 70588 Clip Appelez-nous -
23 313359 Oven Top Appelez-nous -
24 108069 Speed Nut 10 - 32 Appelez-nous -
25 102429 Screw 10 - 32 X 3/8`` Appelez-nous -
26 327985 Insulation Shield (2 Req) Appelez-nous -
27 6501 Main Bottom   (Replaces: 306501) In-Stock Immediately $ 63.98

28 288881 Bolt 1/4-20x3/8`` Appelez-nous -
29 323451 Washer Appelez-nous -
30 69459 Lockwasher Appelez-nous -
31 286547 Oven Door Spring (2 Req) Appelez-nous -
32 104735 Shoulder Rivet Appelez-nous -
33 104734 Roller Appelez-nous -
34 324036 Oven Door Hinge (inc`s. 35, 36 & 39) (left) Appelez-nous -
34 324037 Oven Door Hinge (inc`s. 35, 36 & 39) (right) Appelez-nous -
35 97717 Hinge Pivot Sleeve Appelez-nous -
36 97748 Rivet Appelez-nous -
37 103208 Washer Appelez-nous -
38 323456 Hlnge Latch (right) Appelez-nous -
38 323457 Hlnge Latch (left) Appelez-nous -
39 97749 Washer Appelez-nous -
40 324039 Oven Door Arm (inc`s. 35, 36 & 39) (left) Appelez-nous -
40 324038 Oven Door Arm (inc`s. 35, 36 & 39) (right) Appelez-nous -
41 104629 Hinge Pivot Sleeve Appelez-nous -
42 323454 Spring Link Appelez-nous -
43 97221 Screw 6-32x5/16`` Appelez-nous -
44 336626 Lower Trim-front Frame Appelez-nous -
45 279457 Bracket-front Frame Support (2 Req) In-Stock Immediately $ 7.13

46 336034 Seal-top & Bottom Appelez-nous -
47 315945 Seal-side (rt. Or Lt.) Appelez-nous -
48 286448 Insulation (rt. Or Lt.) Appelez-nous -
49 323446 Support-hinge (2 Req) Appelez-nous -
50 327977 Bracket-door Spring (2 Req) Appelez-nous -
51 331856 Front Frame (inc`s. 35, 36 & 39) Appelez-nous -
52 289836 Skirt-broiler Burner Appelez-nous -
53 97324 Insulation Appelez-nous -
54 294506 Raceway-capillary Appelez-nous -
55 98230 Plug Button Special Order $ 257.43

56 70588 Clip Appelez-nous -
57 313324 Insulation-oven Top & Sides (1 Piece) Appelez-nous -
58 313320 Vent Box Appelez-nous -
59 336593 Oven Cabinet Top Appelez-nous -
60 331592 Broiler Pan Appelez-nous -
61 326297 Broiler Pan Grid Appelez-nous -
62 279538 Oven Rack Guide (right) Appelez-nous -
62 279537 Oven Rack Guide (left) Appelez-nous -
63 279539 Oven Rack (2 Req) Appelez-nous -
64 87883 Holder-oven Lamp Appelez-nous -
65 DA96-01243C Oven Lamp Bulb   (Replaces: 111257) Special Order $ 144.00

66 331859 Oven Side (right) Appelez-nous -
66 331858 Oven Side (left) Appelez-nous -
67 279470 Insulation-door Spring (2 Req) Appelez-nous -
68 336152 Screw Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

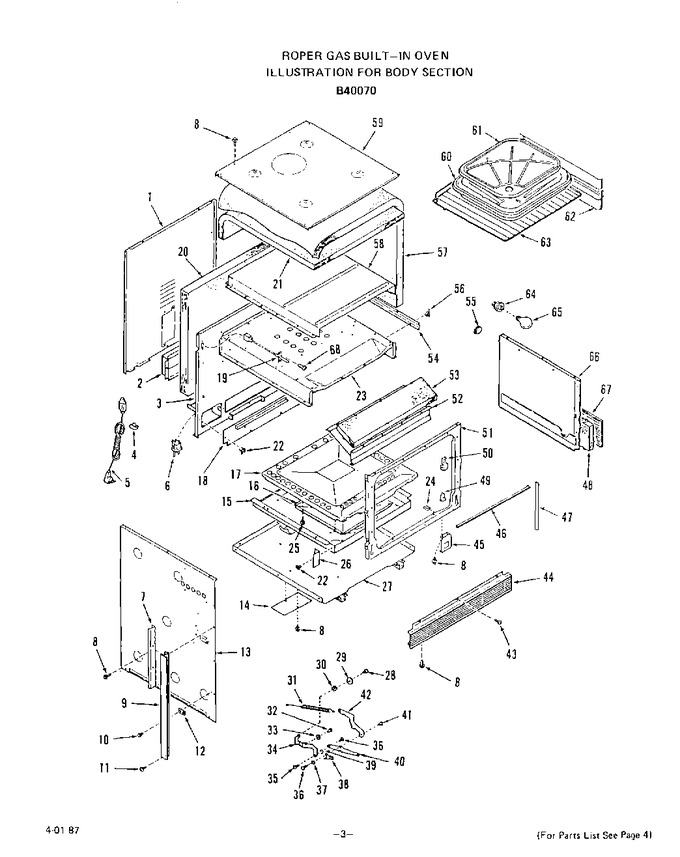

Diagram for B4007X0
