02 - Burner Section

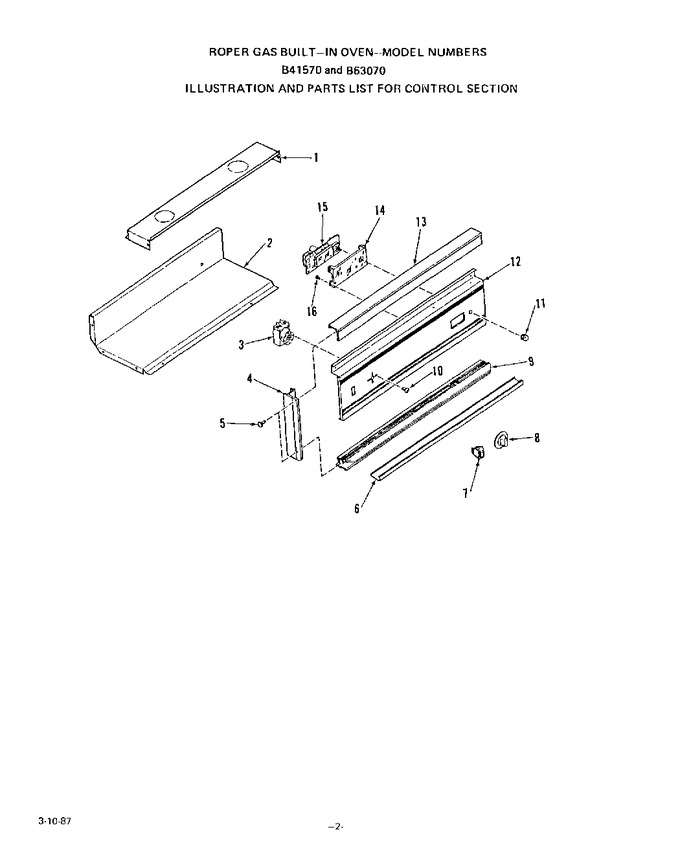

03 - Control Section, Lit/optional


04 - Body Section


05 - Full Glass Upper Oven And Lower Broiler


06 - Oven And Broiler Door W/glass


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	323572		Top Cover (front)		Appelez-nous	-
2	323566		Control Cover		Appelez-nous	-
3	336811		Thermostat		Appelez-nous	-
4	336633		Side Trim-control Panel (right)		Appelez-nous	-
4	336634		Side Trim-control Panel (left)		Appelez-nous	-
5	336706		Screw 6-32x1/2``		Appelez-nous	-
7	334649		Switch		Appelez-nous	-
8	336647		Thermostat Knob		Appelez-nous	-
9	336635		Lower Trim-control Panel		Appelez-nous	-
10	078565		Screw 8-32x3/16``		Appelez-nous	-
11	334961		Knob-clock		Appelez-nous	-
12	336656		Control Panel		Appelez-nous	-
13	336629		Lamp Shade		Appelez-nous	-
14	336943		Clock Lens		Appelez-nous	-
15	336796		Repair Parts List		Appelez-nous	-
15	335616		Clock		Appelez-nous	-
15	336724		Installation Guide		Appelez-nous	-
15	336726		Use & Care Manual		Appelez-nous	-
