Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 308417 Oven Burner Support Appelez-nous -
2 336649 Igniter Bracket Appelez-nous -
3 327320 Screw Appelez-nous -
4 97217 Screw 8 - 32x3/8`` Appelez-nous -
5 12400035 Igniter   (Replaces: 336650) In-Stock Immediately $ 60.44

6 339848 Tubing Appelez-nous -
7 322338 Orfice Tubing W/nut Appelez-nous -
8 113384 Invert Nut 3/8`` Appelez-nous -
9 333671 Pressure Regulator Appelez-nous -
10 336651 Control Valve Appelez-nous -
11 294391 Connector Appelez-nous -
12 114660 Bracket-control Valve Appelez-nous -
13 320479 Shut-off Valve Inlet Appelez-nous -
14 113384 Inverted Nut Appelez-nous -
15 105771 Screw Appelez-nous -
16 323455 Air Shutter Appelez-nous -
17 332304 Oven Burner Appelez-nous -
18 105771 Screw 10 - 32 X 1/4`` Appelez-nous -
19 336648 Igniter Support Bracket Appelez-nous -
20 WP112432 Screw 10-32x7/16``   (Replaces: 311484) Special Order $ 7.16


    View Diagram in Separate Window     Print Icon   Print Part List

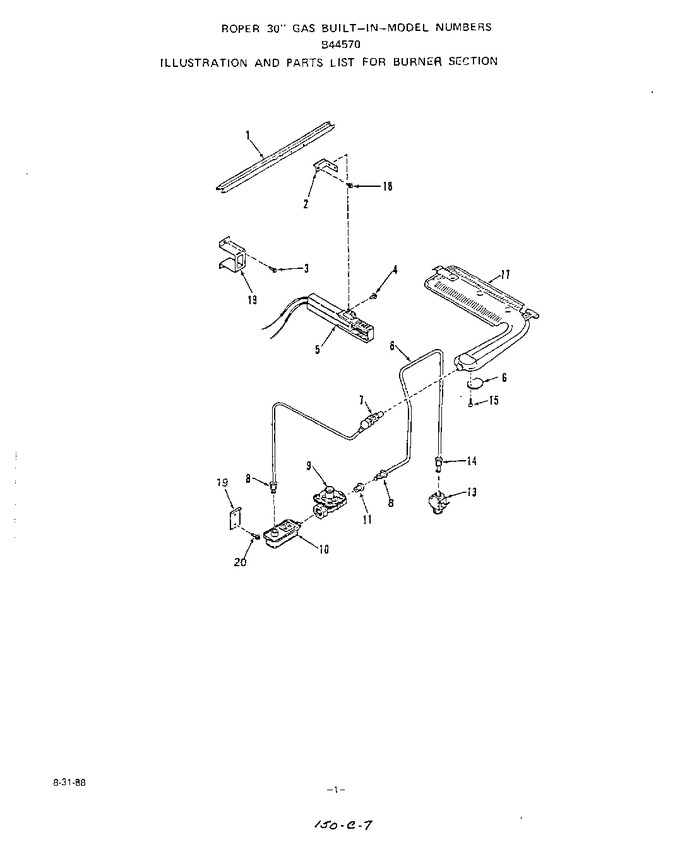

Diagram for B445710
