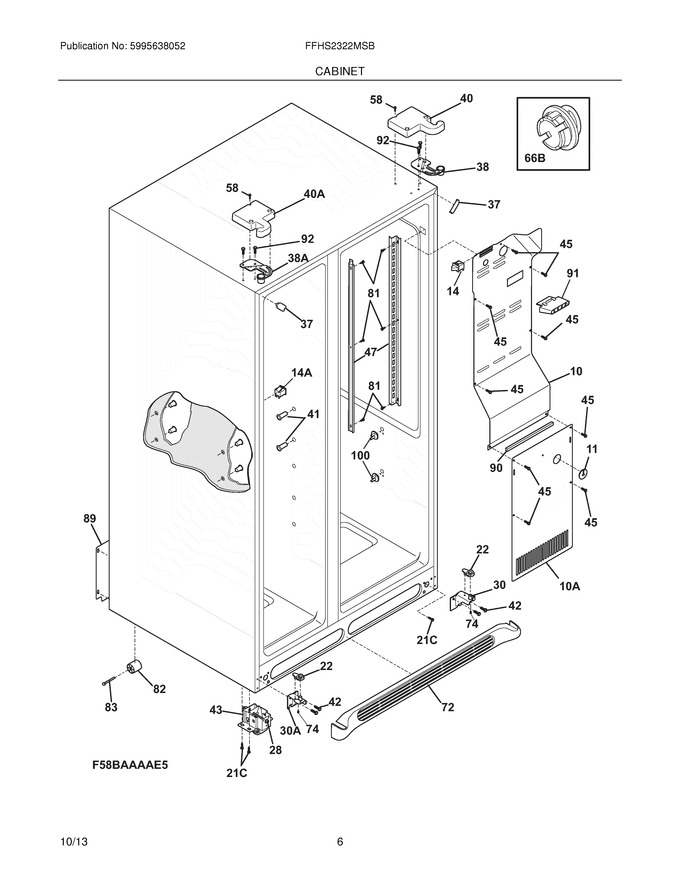

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	240435911		Cover-air Duct				$ 105.44
11	5303208309		Plug-hole,factory Test				$ 45.50
22	241917801		Plate-door Closer				$ 7.09
28	5304499445		Bolt-roller Adj,hex Washer Head ,1/4-20 X 4.020,(2) ,special   (Replaces: 240335502)			Immediately	$ 31.33
30	241918001		Bracket-lower Hinge,w/hinge Pin ,rh ,and Screw				$ 65.92
37	242161202		Trim-cabinet Corner,black ,(2)			Immediately	$ 8.66
38	241761301		Bracket-upper Hinge,rh				$ 66.25
40	241946715		Cover-upper Hinge,black ,rh				$ 34.70
41	241550801		Grommet-shelf Mtg,1.40`` Long				$ 63.70
42	240578902		Screw,hex Head ,1/4-20 X 5/8			Immediately	$ 14.18
43	5304499445		Roller Assy,front ,(2)   (Replaces: 240335006)			Immediately	$ 31.33
45	241500303		Screw,hex Washer Head ,8-18ab X 1/2			Immediately	$ 4.55
47	218659500		Channel-shelf Mtg,side ,(2)				$ 121.38
58	218781101		Screw,pan Head ,8-18 X 0.625				$ 15.60
72	241521603		Grille/kickplate,black   (Replaces: 240324405)				$ 140.29
74	218755402		Screw-set,10-32 X .500 In			Immediately	$ 33.00
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
82	5304418225		Roller,compressor Base ,rear ,(2)				$ 51.57
83	5304455655		Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin			Immediately	$ 35.34
89	241733901		Cover-access,w/label			Immediately	$ 52.92
90	218249807		Seal-coil Cover		Appelez-nous	-
91	240380101		Duct-ice Maker				$ 75.08
92	241710601		Screw,hex Washer Hd ,1/4 X 7/8 ,hinge Mtg				$ 13.46
100	241993101		Support-crisper Cvr			Immediately	$ 5.62
10A	241719716		Cover-evap Coil,lower   (Replaces: 241719710)		Appelez-nous	-
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 14.18
30A	241918004		Bracket-lower Hinge,w/hinge Pin ,lh ,and Screw				$ 52.45
38A	241761302		Bracket-upper Hinge,lh				$ 64.49
40A	241946716		Cover-upper Hinge,black ,lh				$ 35.00
66B	240374301		Diffuser-air				$ 77.26
F100	241993001		Support-crisper Cvr			Immediately	$ 19.23
F14	240505801		Switch,light/lamp				$ 66.63
F14A	241547902		Switch-light/lamp,frzr Door   (Replaces: 241547901)			Immediately	$ 23.25
F66B	240518802		Pin-push,push-in ,plastic				$ 16.30
NI	5303321321		Paint,touch-up ,black			Immediately	$ 21.97
NI	240396801		Clamp,tube/wiring ,nylon ,black/natural				$ 19.13
NI	240494001		Plug-button,white ,cab Liner Holes			Immediately	$ 18.20
NI	241550701		Grommet-shelf Mtg,.96`` Long				$ 18.20
