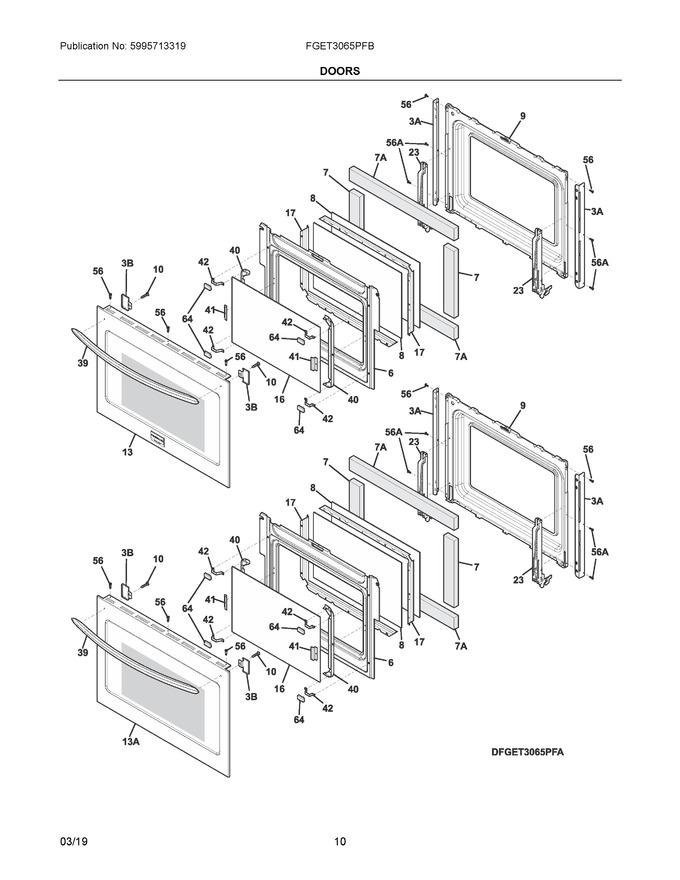

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	139006903		Baffle, Door		Appelez-nous	-
7	318372017		Insulation, Door				$ 16.30
8	5304503232		Glass, Oven Door, Heat Barrier, Inner, Hrc2   (Replaces: 316117502)				$ 116.95
9	139000411		Liner, Oven Door				$ 152.43
10	5303311174		Screw, 10-24 X 3/8			Immediately	$ 14.89
13	139099629		Door Assembly, Outer, Stainless/black, W/trim & Badge   (Replaces: 808950006)				$ 526.05
16	316446401		Glass, Oven Door, Airwash   (Replaces: 316446400)			Immediately	$ 125.13
17	318264731		Spacer, Glass, (2)   (Replaces: 318264712)				$ 72.05
23	316575912		Hinge, Oven Door, Lime Green, (2)   (Replaces: 139014300)				$ 76.59
39	316554010		Handle, Door/drawer, Stainless   (Replaces: 316554005)			Immediately	$ 168.44
40	318242702		Bracket, Glass Holder, Door, (2)				$ 19.72
41	318370602		Bracket, Glass Panel, (2)				$ 13.65
42	318382302		Bracket, Glass Retainer, (4)   (Replaces: 318382301)				$ 50.81
56	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
64	318165800		Spacer				$ 17.72
13A	139099629		Door Assembly, Outer, Steel/glass, Stainless/black, W/trim				$ 526.05
3A	139014401		Trim, Oven Door, Black, Side, (2), Vented				$ 32.62
3B	318262111		Cover, Rear Door, Black, (2)				$ 54.60
56A	5303324184		Screw, 8-18 X 5/16, Black			Immediately	$ 14.18
7A	318372016		Insulation, Door				$ 17.72
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
