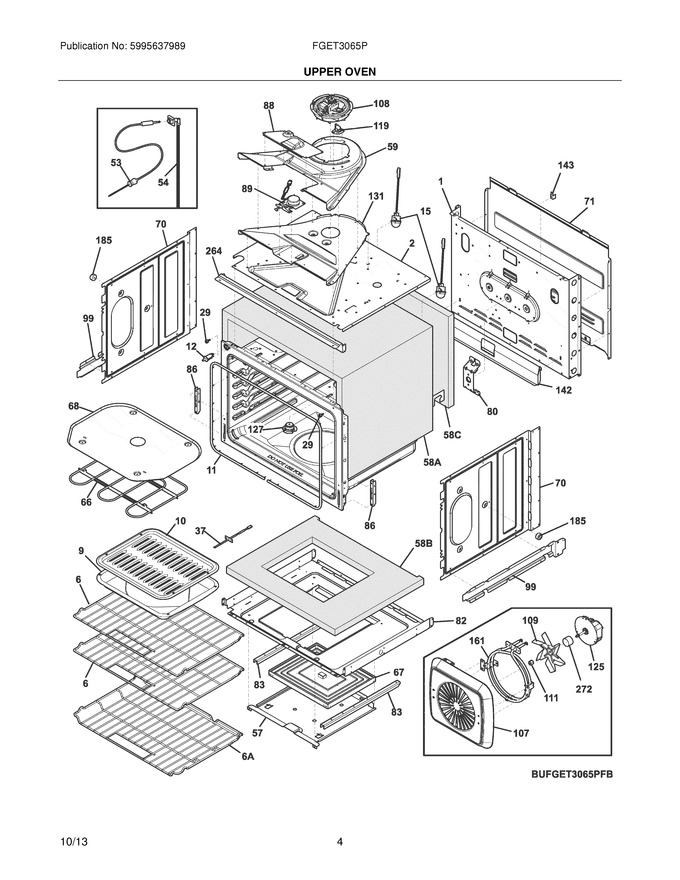

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	139017304		Panel,main Back		Appelez-nous	-
2	139028100		Shield,insulation ,top		Appelez-nous	-
6	139011600		Rack,oven ,w/handle				$ 124.74
9	318138801		Pan,broileroptional Access0ry		Appelez-nous	-
10	318126401		Insert,broiler Panoptional Access0ry		Appelez-nous	-
11	807545502		Seal,oven Door ,gray				$ 140.34
12	316445501		Switch,oven Light ,door Frame				$ 90.01
29	316517600		Spacer,oven Door				$ 12.05
57	807988901		Panel,service ,bake Element		Appelez-nous	-
59	139027600		Duct,cooling Fan ,upper				$ 85.76
68	807890403		Shield,broil Element		Appelez-nous	-
70	139000601		Shield,insulation ,sides ,(2)   (Replaces: 139000600)				$ 72.05
71	139020000		Shield,rear Wire ,main Back				$ 99.23
80	139021101		Bracket,support ,chassis/fan   (Replaces: 139021100)				$ 14.89
82	807988801		Shield,insulation ,lower		Appelez-nous	-
83	808647301		Brace,lower Shield ,(2)		Appelez-nous	-
86	318561100		Receptacle,hinge ,(2)				$ 21.23
88	5304506964		Cover,latch Motor   (Replaces: 139027900)				$ 24.10
99	139005201		Bracket,support ,side ,(2)		Appelez-nous	-
107	139013903		Cover,convection Fan				$ 46.86
109	318398302		Blade,fan ,convection   (Replaces: 139009100)			Immediately	$ 29.11
111	316136600		Nut,fan Retainer			Immediately	$ 19.13
127	5304538693		Tube Assembly,vent ,w/catalyst   (Replaces: 139042600)			Immediately	$ 10.03
131	139027700		Duct,cooling Fan ,lower				$ 73.00
142	139018000		Shield,air Deflector ,main Back		Appelez-nous	-
143	318172904		Support,wire		Appelez-nous	-
185	318531800		Spacer,oven Shield ,(2)				$ 12.76
264	139017601		Trim,vent ,black ,front				$ 47.78
272	139021700		Tube,convection Fan				$ 17.72
58A	139001700		Insulation,oven Wrapper ,top & Sides		Appelez-nous	-
58B	807989001		Insulation,oven Bottom				$ 102.78
58C	139021400		Insulation,oven Back		Appelez-nous	-
6A	139012400		Rack,oven ,offset ,w/handle				$ 181.34
F107	807597603		Screw,self Tapping ,8-18 X 11/32 ,(4)				$ 9.22
F108	318575612		Motor,cooling Fan			Immediately	$ 196.61
F119	318578506		Thermostat,cooling Fan ,105 Deg.			Immediately	$ 58.19
F125	139008502		Motor,convection Fan				$ 139.48
F15	5304528790		Lamp Assembly,round ,halogen ,25w   (Replaces: 139009000)			Immediately	$ 20.56
F161	8581390065036		Element,convection ,2500w   (Replaces: 139006500)				$ 47.63
F37	5304504897		Sensor,oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
F53	5304504202		Probe,meat Temp ,red   (Replaces: 318601303)			Immediately	$ 106.19
F54	139017203		Receptacle Assy,meat Probe   (Replaces: 139017200)			Immediately	$ 153.09
F66	5304521498		Element,broil ,6 Pass ,3400w   (Replaces: 139008900)			Immediately	$ 87.21
F67	318601604		Element,hidden Bake ,2000w   (Replaces: 808650402)			Immediately	$ 260.38
F89	139021302		Motor,latch Assy. ,2 Pole				$ 147.56
FNI	318231870		Wiring Harness,bake Element				$ 83.42
FNI	807048302		Wiring Harness,latch Motor ,upper Oven		Appelez-nous	-
NI	316021109		Screw,8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	807597605		Screw,phillips ,8-18 X 12 ,zinc ,(10)		Appelez-nous	-
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	318579001		Bracket,wire				$ 11.08
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	5303288566		Screw,8 X 1/4 ,(4)   (Replaces: 5303323130)				$ 2.12
