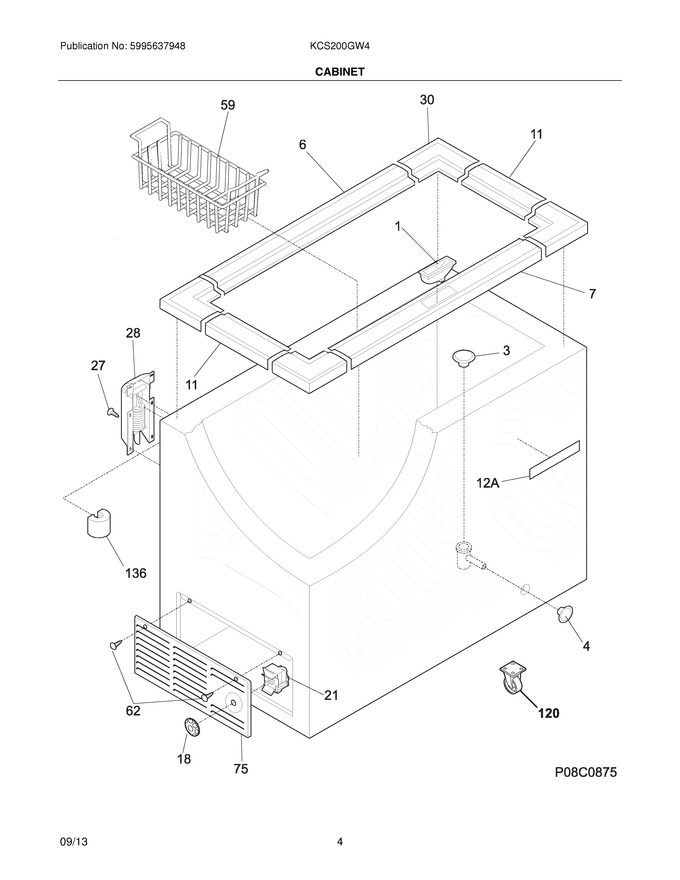

05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216954500		Catch-lock				$ 19.16
3	216502600		Plug,drain ,interior			Immediately	$ 17.35
4	297013600		Plug,drain ,exterior				$ 9.98
6	216955513		Breaker,hinge Side				$ 19.48
7	297129400		Breaker,lock Side ,w/lock Catch				$ 33.29
11	216955500		Breaker,chest End ,(2)				$ 15.75
18	216707201		Knob,temp Control				$ 37.54
23	297181900		Light,signal ,amber				$ 16.96
27	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping				$ 13.01
28	297322000		Hinge Assy				$ 109.15
30	216110700		Breaker,corners				$ 28.45
59	297118601		Basket		Appelez-nous	-
62	5304460602		Screw,cr Truss Head ,8-18ab X 0.750		Appelez-nous	-
75	216034301		Panel,access ,white				$ 103.01
120	216621000		Caster		Appelez-nous	-
136	216726600		Guard-splash		Appelez-nous	-
12A	297146601		Nameplate,commercial		Appelez-nous	-
F21	216759000		Control-temperature		Appelez-nous	-
NI	5303321319		Paint,touch-up ,white   (Replaces: 5303305324)			Immediately	$ 13.46
NI	297151500		Caster Pack,4 Casters ,wrench ,16 Screws		Appelez-nous	-
