01 - Cover Sheet
02 - Door
03 - Cabinet
04 - Shelves
05 - System
06 - Wiring Schematic
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

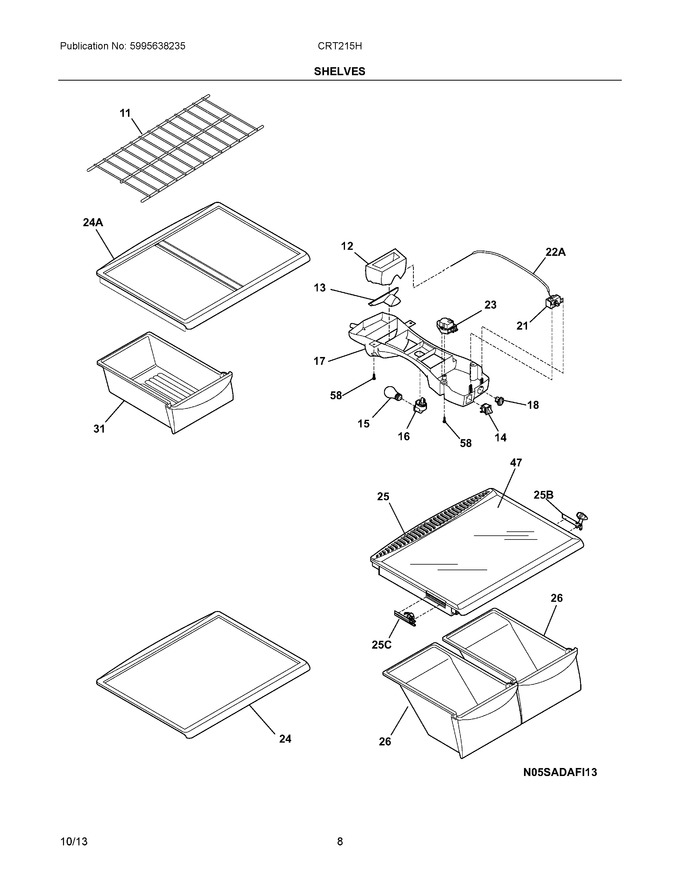

| 11 | 240358006 | Shelf, Freezer, Full-width, Wire |
|
$ 45.41 | |||||
| 12 | 240545901 | Diffuser-air, Top |
|
$ 70.16 | |||||
| 13 | 240362601 | Diffuser, Air, Bottom |
|
Immediately | $ 41.81 | ||||
| 14 | 241554901 | Switch-light/lamp |
|
$ 70.88 | |||||
| 15 | 316538904 | Light Bulb (Replaces: 241555401) |
|
Immediately | $ 20.48 | ||||
| 16 | 241559801 | Socket-light |
|
$ 72.68 | |||||
| 17 | 240368105 | Box-control, Front (Replaces: 240368103) |
|
Immediately | $ 130.44 | ||||
| 18 | 240360801 | Knob, Temp Control |
|
$ 43.95 | |||||
| 21 | 241537103 | Control-temperature (Replaces: 5304445058) |
|
Immediately | $ 72.31 | ||||
| 23 | 215846604 | Timer-defrost (Replaces: 241809402) |
|
Immediately | $ 24.58 | ||||
| 24 | 240358904 | Shelf-fixed, Spill Safe, W/meat Pan Hang |
|
- | |||||
| 25 | 240364790 | Cover-crisper Pan |
|
$ 135.66 | |||||
| 26 | 240343803 | Pan, Crisper, (2) |
|
Immediately | $ 171.91 | ||||
| 31 | 240530811 | Pan-meat, W/o Graphics, Clear (Replaces: 240530803) |
|
Immediately | $ 135.77 | ||||
| 47 | 240350609 | Insert-pan Cover, Glass |
|
Immediately | $ 162.30 | ||||
| 58 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| 22A | 240468202 | Tube, Sensor Sleeve, 31 Inch, Plastic, White |
|
$ 9.10 | |||||
| 24A | 240358903 | Shelf, Fixed, Spill Safe |
|
- | |||||
| 25B | 241613501 | Control-humidity, Rh |
|
Immediately | $ 12.05 | ||||
| 25C | 241613502 | Control-humidity, Lh |
|
$ 47.78 | |||||
| NIA | 5304455649 | Screw, Pan Hd, 6-20 X 0.438 |
|
$ 17.01 | |||||
| NIA | 218743613 | Tape, Aluminum, 3" X 7 |
|
- | |||||
| NIB | 240388701 | Wiring Harness, Control Box |
|
Immediately | $ 80.09 |
