SELECT A DIAGRAM

01 - Cover Sheet


02 - Upper Cabinet/drum Heater


03 - Motor/blower/belt


04 - Control Panel


05 - Lower Cabinet/top

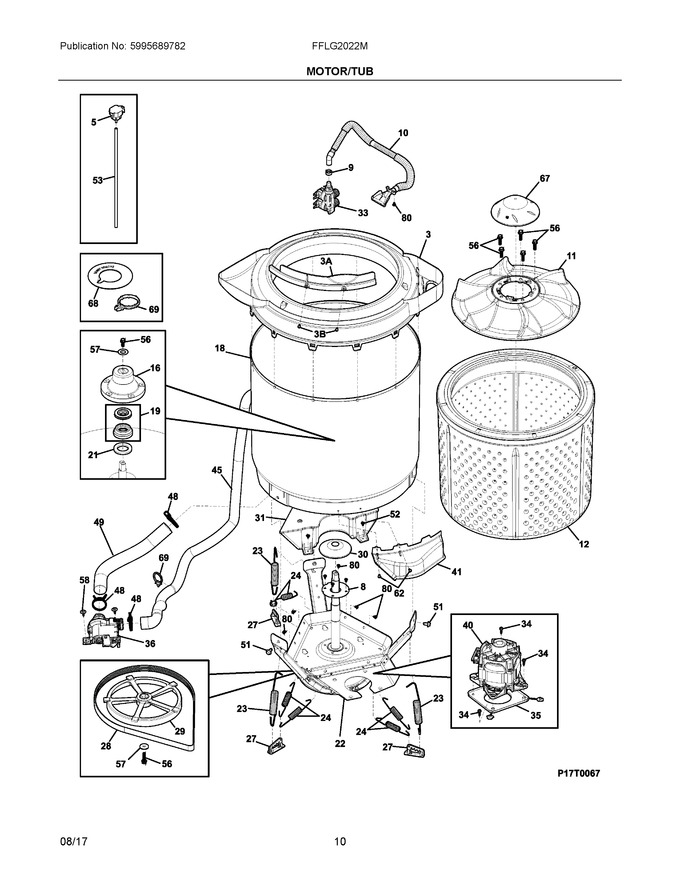

06 - Motor/tub


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	137304900		Cover, Splash Tub Asmy				$ 86.26
5	137055800		Sensor, Pressure, Low Freq Analog			Immediately	$ 90.72
8	137363400		Cover, Bearing				$ 26.57
9	5304488479		Clamp			Immediately	$ 32.09
10	137308000		Hose, Fill Nozzle Asy			Immediately	$ 69.46
11	137494000		Wash Plate				$ 142.91
12	137492801		Spin Tub Assy, W/o Lint Filter				$ 288.53
16	137489100		Trunnion, Standard				$ 152.54
18	137326200		Tub, Splash, W/air Dome/brng		Appelez-nous	-
19	137547700		Tub Seal Kit				$ 73.03
21	137272000		Grommet, Seal				$ 50.19
22	137513900		Leg, Dome & Brackets, Assembly				$ 499.00
23	134885900		Spring, Vertical				$ 21.27
24	137272300		Spring, Horizontal				$ 26.20
27	137491600		Retainer, Insert, Spring				$ 23.99
28	137051400		Belt, Poly V			Immediately	$ 47.48
29	137489000		Pulley, Drive, 250 Mm				$ 209.79
30	137049800		Shield, Slinger				$ 20.42
31	137466600		Counterweight				$ 219.82
33	137465100		Valve-3 Coil, 120v 60hz Water				$ 178.57
34	137470600		Screw, Quad Hex, 12-14 X 0.75				$ 12.08
35	137510300		Plate, Motor Isolator				$ 29.24
36	137221600		Pump, Drain   (Replaces: 137108100)			Immediately	$ 189.21
40	137326000		Motor, 3 Phase, Induction			Immediately	$ 395.91
41	137282900		Shield, Motor		Appelez-nous	-
45	134592700		Hose, Drain			Immediately	$ 89.31
48	5304536802		Clamp, Hose, Wire   (Replaces: 131306234)			Immediately	$ 4.01
49	131494800		Hose, Pump To Tub			Immediately	$ 72.30
51	137466300		Screw, Hex Washer Head, 5/16 X 0.625, Special		Appelez-nous	-
52	131202300		Screw, 10-16ab X 0.625			Immediately	$ 13.46
53	5304401845		Tubing, Vinyl, 16" Long   (Replaces: 5303292722)				$ 58.12
56	137050600		Screw 5/16-18-2a, Unc X 1.25				$ 17.39
57	134716700		Washer, Flat   (Replaces: 137489500)				$ 2.12
58	134160900		Screw, Washer Hd, 10-16ab X 0.75				$ 12.05
62	131302800		Screw, 10-16ab X 0.500   (Replaces: 131258400)			Immediately	$ 26.58
67	137193200		Cap, Wash Plate				$ 55.02
68	131707800		Ring, Drain Hose				$ 45.25
69	5303309503		Clip, Drain Hose, Back Sheet				$ 7.09
80	137511100		Screw, Hex Head, 10-24 X 0.500, Type F				$ 12.05
3A	137419200		Shield, Tub Cover				$ 27.08
3B	131302800		Screw, Quadrex Ph, 10-16ab X 0.5			Immediately	$ 26.58
40A	137324300		Wiring Harness, Motor				$ 101.35
NIA	131901400		Seal, Splash Cover			Immediately	$ 21.69
NIA	131453000		Bushing, Snap-in				$ 10.63
NIB	137457100		Bracket, Motor, Tlw, Lc				$ 37.43
NIB	131663500		Cushion, Drain Hose, Base				$ 23.00
NIC	134261300		Clip, Drain Hose, Push-mount				$ 12.05
NID	134745300		Clip, Drain Hose				$ 11.66

    View Diagram in Separate Window       Print Part List
