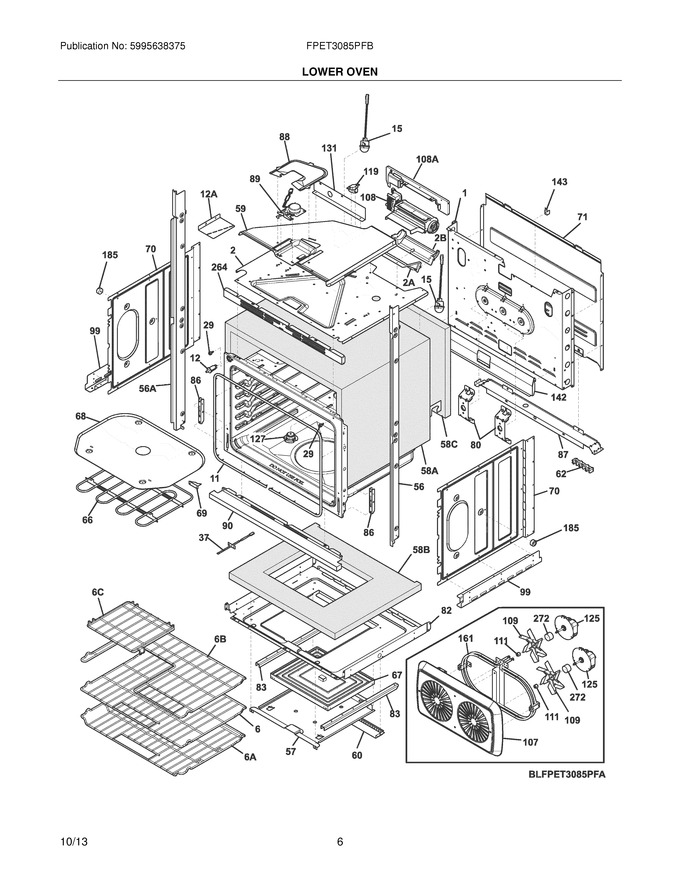

07 - Lower Oven


09 - Doors


10 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	139017301		Panel,main Back ,lower Oven		Appelez-nous	-
2	139028101		Shield,insulation ,top ,lower Oven		Appelez-nous	-
6	139011600		Rack,oven ,w/handle				$ 124.74
11	807545502		Seal,oven Door ,gray				$ 140.34
29	316517600		Spacer,oven Door				$ 12.05
56	318903676		Trim,side Filler ,black ,rh				$ 126.86
57	807988901		Panel,service ,bake Element		Appelez-nous	-
59	139015700		Duct,cooling ,lower Oven		Appelez-nous	-
60	807285601		Shield,heat ,oven Bottom		Appelez-nous	-
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
68	807890403		Shield,broil Element		Appelez-nous	-
69	139022500		Bracket,element Guide		Appelez-nous	-
70	139000601		Shield,insulation ,sides ,(2)   (Replaces: 139000600)				$ 72.05
71	139020000		Shield,rear Wire ,main Back				$ 99.23
80	139021101		Bracket,support ,chassis/fan   (Replaces: 139021100)				$ 14.89
82	807988801		Shield,insulation ,lower		Appelez-nous	-
83	808647301		Brace,lower Shield ,(2)		Appelez-nous	-
86	318561100		Receptacle,hinge ,(2)				$ 21.23
87	139020100		Bracket,cable Mtg.		Appelez-nous	-
88	139038700		Cover,latch Motor ,lower Oven		Appelez-nous	-
90	139008713		Trim,base ,stainless   (Replaces: 139008711)				$ 138.20
99	318256201		Bracket,side ,bottom ,(2)				$ 56.70
107	139001501		Cover,dual Fan ,convection				$ 60.80
109	318398302		Blade,fan ,convection   (Replaces: 139009100)			Immediately	$ 29.11
111	316136600		Nut,fan Retainer			Immediately	$ 19.13
127	5304538693		Tube Assembly,vent ,w/catalyst   (Replaces: 139042600)			Immediately	$ 10.03
131	139022400		Cover,center Rear ,cross Flow		Appelez-nous	-
142	139018000		Shield,air Deflector ,main Back		Appelez-nous	-
143	318172904		Support,wire		Appelez-nous	-
185	318531800		Spacer,oven Shield ,(2)				$ 12.76
264	139007801		Trim,center Vent ,black		Appelez-nous	-
272	139021700		Tube,convection Fan				$ 17.72
12A	807641201		Shield,door Switch				$ 64.49
2A	139015900		Shield,fan ,cross Flow		Appelez-nous	-
2B	139038901		Housing,fan ,air Diverter				$ 31.19
56A	318903677		Trim,side Filler ,black ,lh		Appelez-nous	-
58A	139001700		Insulation,oven Wrapper ,top & Sides		Appelez-nous	-
58B	807989001		Insulation,oven Bottom				$ 102.78
58C	139021400		Insulation,oven Back		Appelez-nous	-
6A	139012400		Rack,oven ,offset ,w/handle				$ 181.34
6B	139012800		Rack,oven ,half ,w/handle				$ 192.94
6C	139013000		Rack Insert,half Rack				$ 91.30
F108	139023900		Bracket,fan Mtg. ,cross Flow				$ 31.90
F108	139038301		Blower Assembly,cooling ,cross Flow ,w/baffle				$ 188.21
F119	318578506		Thermostat,cooling Fan ,105 Deg.			Immediately	$ 58.19
F12	316445501		Switch,oven Light ,door Frame				$ 90.01
F125	139008502		Motor,convection Fan				$ 139.48
F15	5304528790		Lamp Assembly,round ,halogen ,25w   (Replaces: 139009000)			Immediately	$ 20.56
F161	5304522063		Element,convection ,dual ,2500w   (Replaces: 139006600)				$ 132.71
F37	5304504897		Sensor,oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
F66	5304521861		Element,broil ,8 Pass ,4000w   (Replaces: 139000900)			Immediately	$ 90.25
F67	318601604		Element,hidden Bake ,2000w   (Replaces: 808650402)			Immediately	$ 260.38
F89	139021302		Motor,latch Assy. ,2 Pole				$ 147.56
FNI	807460603		Harness,wiring ,main		Appelez-nous	-
FNI	5304506955		Box & Wires Assy   (Replaces: 318394443)				$ 174.43
FNI	318231870		Wiring Harness,bake Element				$ 83.42
FNI	807181801		Wiring Harness,latch Motor ,lower Oven		Appelez-nous	-
NI	316021119		Screw,ab Nickel ,8-18 X 11/16		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5304470882		· Screw,anti-tip ,8 - 5/8 ,black ,(2)				$ 13.46
NI	316001017		Screw,ground Wire   (Replaces: 316001003)				$ 3.03
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	139022101		Insualtion,noise Dampening		Appelez-nous	-
NI	5303288566		Screw,8 X 1/4 ,(4)   (Replaces: 5303323130)				$ 2.12
NI	5303289910		Screw,truss Sqdr ,8a X 1``				$ 5.67
NI	316205500		Nut,hex Flange ,3/8 10-32				$ 11.34
NI	318165800		Spacer				$ 17.72
