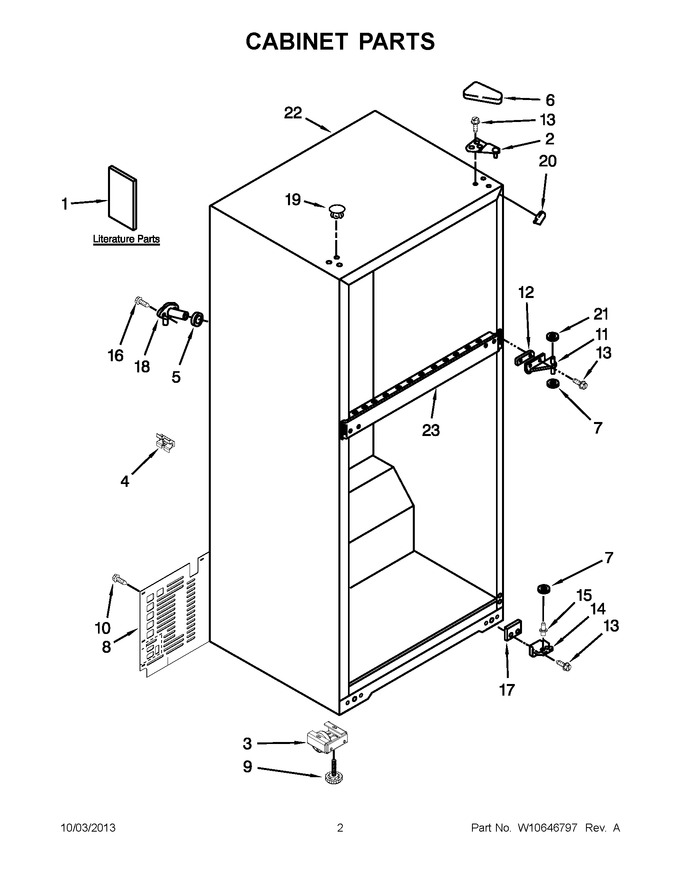

02 - Cabinet Parts
03 - Door Parts
04 - Liner Parts
05 - Unit Parts
06 - Icemaker Parts
07 - Shelf Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10344152 | Service & Wiring Sheet |
|
- | |||||
| 1 | W10214132 | Use & Care Guide |
|
- | |||||
| 1 | W10504134 | Energy Guide |
|
- | |||||
| 2 | WP2261963 | Top Hinge Assembly (Replaces: 2261963) |
|
Immediately | $ 89.51 | ||||
| 3 | WPW10142530 | Assembly, Roller (Replaces: W10142530) |
|
Immediately | $ 101.23 | ||||
| 4 | 2266506 | Spacer, Back |
|
$ 12.33 | |||||
| 5 | WP1106508 | Gasket, Seal (Replaces: 1106508) |
|
Immediately | $ 8.94 | ||||
| 6 | WP2213363 | Cover, Hinge (black) (Replaces: 2213363) |
|
Immediately | $ 16.39 | ||||
| 6 | WP2213360 | Cover, Hinge (white) (Replaces: 2213360) |
|
$ 17.31 | |||||
| 7 | WP487576 | Washer, Plastic (Replaces: 487576) |
|
Immediately | $ 8.89 | ||||
| 8 | W11307292 | Cover, Unit (Replaces: W10626437) |
|
$ 42.71 | |||||
| 9 | WPW10133299 | Leveler (Replaces: W10133299) |
|
$ 10.58 | |||||
| 10 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 9.85 | ||||
| 11 | WP2166037 | Hinge Assembly, Center (Replaces: 2166086) |
|
$ 70.34 | |||||
| 12 | 2215385 | Shim, Hinge Center (black) |
|
$ 78.29 | |||||
| 12 | 2166043 | Shim, Hinge Center (white) |
|
$ 59.80 | |||||
| 13 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 14 | WP2325482 | Hinge, Bottom (Replaces: 2325482) |
|
Immediately | $ 68.57 | ||||
| 15 | WP2325483 | Pin, Bottom Hinge (Replaces: 2325483) |
|
Immediately | $ 6.47 | ||||
| 16 | WP488729 | Screw (Replaces: 2262176) |
|
Immediately | $ 7.01 | ||||
| 17 | WP2201567 | Shim, Bottom Hinge (Replaces: 2201567) |
|
$ 6.99 | |||||
| 18 | WPW10601149 | Fitting, Water Tube (Replaces: W10601149) |
|
Immediately | $ 7.34 | ||||
| 19 | WPW10520304 | Hole Plug (white) (Replaces: W10520304) |
|
Immediately | $ 16.47 | ||||
| 19 | WPW10520305 | Hole Plug (black) (Replaces: W10520305) |
|
$ 16.44 | |||||
| 20 | W10859322 | Corner Filler (white) (Replaces: 2166003) |
|
$ 6.93 | |||||
| 20 | W11500943 | Corner Filler (black) (Replaces: 2215384) |
|
$ 6.84 | |||||
| 21 | WP489467 | Washer, Plastic (Replaces: 489341) |
|
Immediately | $ 9.79 | ||||
| 22 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 23 | N/P | Rail, Center (not Serviced) |
|
- | |||||
| NI | 677969 | Do-it-yourself Repair Manuals |
|
$ 30.30 |
