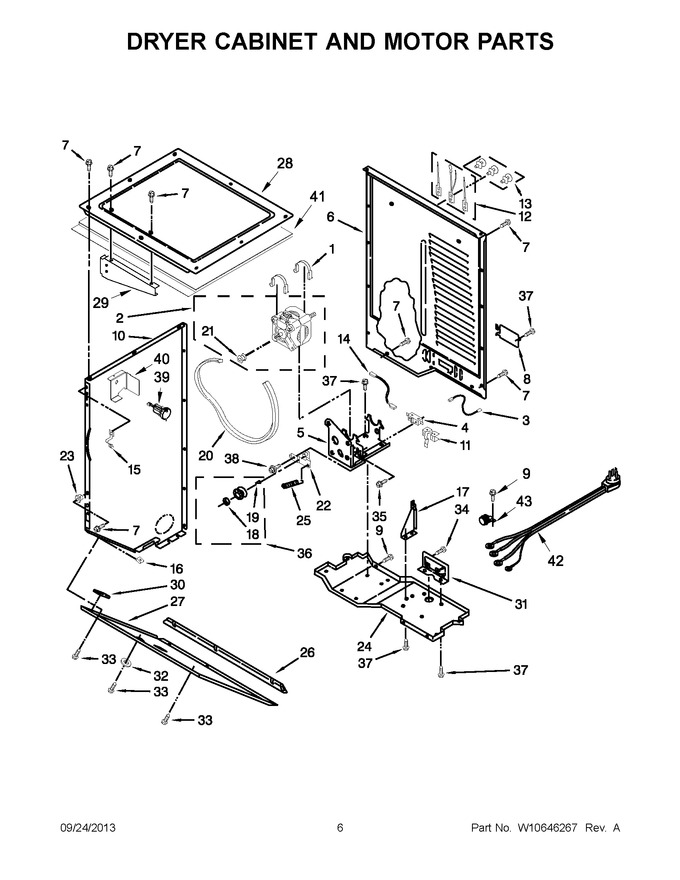

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
WP660658 |
 |
Clamp, Motor (Replaces: 660658) |
|
|
|
$ 7.05 |
|
|
| 2 |
279811 |
 |
Motor, Main Drive (60 Hz) (Replaces: W10396030) |
|
|
Immediately |
$ 342.58 |
|
|
| 3 |
3398948 |
|
Wire, Jumper (broken Belt Switch) |
|
|
|
$ 55.42 |
|
|
| 4 |
279782 |
 |
Switch - Belt (Replaces: 3394881) |
|
|
Immediately |
$ 49.00 |
|
|
| 5 |
W11107903 |
|
Bracket, Motor (Replaces: 3388858) |
|
|
|
$ 48.53 |
|
|
| 6 |
3389847 |
|
Panel, Rear |
|
Appelez-nous
|
- |
|
|
|
| 7 |
WP681414 |
 |
Screw (Replaces: 343641) |
|
|
Immediately |
$ 7.07 |
|
|
| 8 |
279814 |
|
Cover, Terminal Block (Replaces: 3387673) |
|
|
|
$ 90.46 |
|
|
| 9 |
W10850756 |
|
Screw (Replaces: 8533974) |
|
|
|
$ 6.98 |
|
|
| 10 |
3389264 |
|
Panel, Side (white (lh)) |
|
|
|
$ 300.70 |
|
|
| 10 |
3389256 |
|
Panel, Side (white (rh)) |
|
|
|
$ 296.46 |
|
|
| 11 |
WP8066120 |
 |
Lever Switch (Replaces: 8066120) |
|
|
Immediately |
$ 29.80 |
|
|
| 12 |
279318 |
 |
Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
|
Immediately |
$ 90.89 |
|
|
| 13 |
279393 |
 |
Screw Kit, Terminal Block |
|
|
Immediately |
$ 42.63 |
|
|
| 14 |
W10167612 |
|
Wire, Belt Switch |
|
|
|
$ 11.50 |
|
|
| 15 |
3389231 |
|
Clip, Front Panel |
|
|
|
$ 11.39 |
|
|
| 16 |
WP98234 |
 |
Clip, Ground (Replaces: 98234) |
|
|
Immediately |
$ 10.25 |
|
|
| 17 |
W11100260 |
|
Bracket, Bulkhead (Replaces: 3391639) |
|
|
|
$ 17.55 |
|
|
| 18 |
WPW10512946 |
 |
Washer, Tri Ring (Replaces: W10512946) |
|
|
Immediately |
$ 7.92 |
|
|
| 19 |
WPW10121334 |
 |
Washer (Replaces: W10121334) |
|
|
Immediately |
$ 6.47 |
|
|
| 20 |
661570V |
 |
Belt, Drive (Replaces: 3387610) |
|
|
Immediately |
$ 29.53 |
|
|
| 21 |
279811 |
|
Pulley, Motor (60 Hz.) (Replaces: 3391087) |
|
|
Immediately |
$ 342.58 |
|
|
| 22 |
WPW10547294 |
 |
Bracket, Idler (Replaces: 3389332) |
|
|
Immediately |
$ 30.27 |
|
|
| 23 |
WP692400 |
 |
Screw Grommet (Replaces: 692400) |
|
|
Immediately |
$ 6.88 |
|
|
| 24 |
W11436283 |
|
Base, Dryer (Replaces: W10360901) |
|
|
|
$ 61.61 |
|
|
| 25 |
WPW10446781 |
 |
Spring, Idler (Replaces: W10446781) |
|
|
Immediately |
$ 22.11 |
|
|
| 26 |
3389683 |
 |
Cove, Transition Panel (black) |
|
|
|
$ 111.39 |
|
|
| 27 |
3389272 |
 |
Panel, Transition |
|
|
|
$ 227.87 |
|
|
| 28 |
W10573869 |
|
Top, Dryer |
|
Appelez-nous
|
- |
|
|
|
| 29 |
3390722 |
|
Shield, Console To Drum |
|
Appelez-nous
|
- |
|
|
|
| 30 |
3389682 |
|
Spacer, Toe Panel |
|
|
|
$ 7.91 |
|
|
| 31 |
3393721 |
|
Bracket, Terminal Block (Replaces: 3393722) |
|
|
|
$ 19.23 |
|
|
| 32 |
WP3389431 |
|
Bumper, Lid Stop (Replaces: 3389431) |
|
|
|
$ 10.22 |
|
|
| 33 |
WP693304 |
 |
Screw (Replaces: 693304) |
|
|
|
$ 7.04 |
|
|
| 34 |
WP273556 |
 |
Screw (Replaces: 3387485) |
|
|
Immediately |
$ 7.04 |
|
|
| 35 |
WP98129 |
|
Screw (Replaces: 98129) |
|
|
|
$ 6.80 |
|
|
| 36 |
279640 |
 |
Assembly, Pulley (Replaces: W10468057) |
|
|
Immediately |
$ 29.26 |
|
|
| 37 |
WP3390631 |
 |
Screw (Replaces: 3390631) |
|
|
|
$ 7.04 |
|
|
| 38 |
WP3389420 |
 |
Screw (Replaces: 3389420) |
|
|
|
$ 7.22 |
|
|
| 39 |
WPW10663966 |
 |
Switch, Pressure (3 Level) (Replaces: W10537873) |
|
|
|
$ 192.22 |
|
|
| 40 |
W10549488 |
|
Bracket, Pressure Switch |
|
Appelez-nous
|
- |
|
|
|
| 41 |
W10123956 |
|
Panel, Dampening |
|
Appelez-nous
|
- |
|
|
|
| 42 |
W10237089 |
|
Power Cord (30 Amp) |
|
|
Immediately |
$ 38.03 |
|
|
| 43 |
687000 |
|
Relief, Strain (power Cord) |
|
|
|
$ 70.88 |
|
|
