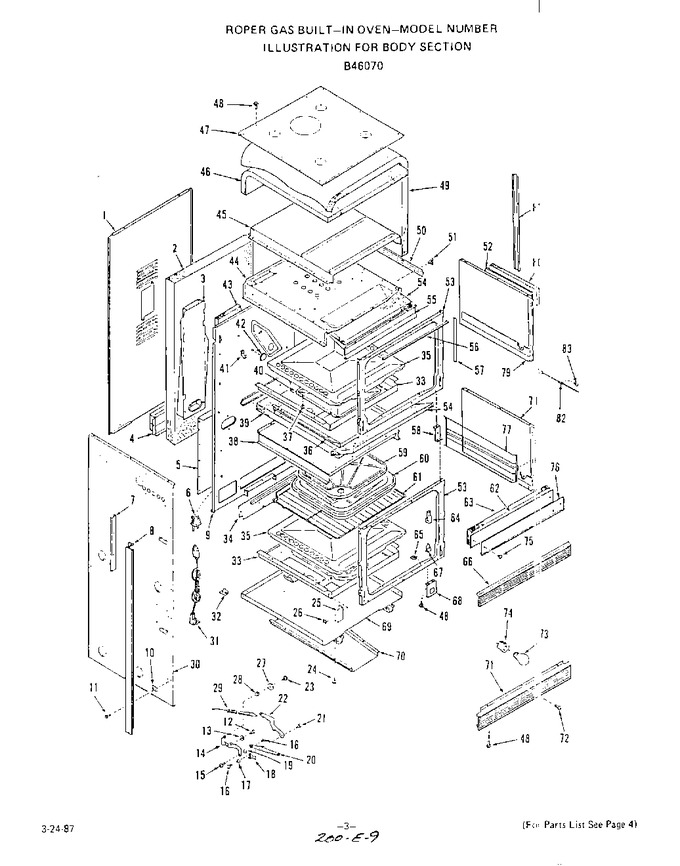

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	323788		Wire Cover		Appelez-nous	-
2	336824		Insulation-oven Back		Appelez-nous	-
3	323779		Vent Box		Appelez-nous	-
4	323760		Air Chamber Cover		Appelez-nous	-
5	WP4391960		Cover-air Box   (Replaces: 279478)			Immediately	$ 54.50
6	232150		Disconnect		Appelez-nous	-
7	315233		Channel Trim - Lt. Or Rt.		Appelez-nous	-
8	336822		Right		Appelez-nous	-
8	336821		Left		Appelez-nous	-
9	336812		Oven Back		Appelez-nous	-
10	302862		Spacer-side Trim (4 Req)		Appelez-nous	-
11	281160		Accordian Rivet		Appelez-nous	-
12	104735		Shoulder Rivet		Appelez-nous	-
13	104734		Roller		Appelez-nous	-
14	324036		Left (up. Or Lo. Oven)		Appelez-nous	-
14	324037		Right (up. Or Lo. Oven)		Appelez-nous	-
15	97717		Hinge Pivot Sleeve		Appelez-nous	-
16	97748		Rivet		Appelez-nous	-
17	103208		Washer		Appelez-nous	-
18	323457		Hinge Latch (left)		Appelez-nous	-
18	323456		Hinge Latch (right)		Appelez-nous	-
19	97749		Washer		Appelez-nous	-
20	324039		Left (up. Or Lo. Oven)		Appelez-nous	-
20	324038		Right (up. Or Lo. Oven)		Appelez-nous	-
21	104629		Hinge Pivot Sleeve		Appelez-nous	-
22	323454		Spring Link		Appelez-nous	-
23	288881		Bolt 1/4-20x3/8``		Appelez-nous	-
24	71269		Screw 10ax3/8``		Appelez-nous	-
25	327985		Insulation Shield (2 Req)		Appelez-nous	-
26	70588		Clip		Appelez-nous	-
27	323451		Washer		Appelez-nous	-
28	69459		Lockwasher		Appelez-nous	-
29	286547		Oven Door Spring (up Or Lo Oven)		Appelez-nous	-
30	323786		Right		Appelez-nous	-
30	323785		Left		Appelez-nous	-
31	232132		Service Cord		Appelez-nous	-
32	97047		Clip (for Key31)		Appelez-nous	-
33	323750		Burner Box		Appelez-nous	-
34	323766		Cover Plate-lower Oven		Appelez-nous	-
35	331857		Oven Bottom W/baffle		Appelez-nous	-
36	323774		Insulation Retainer		Appelez-nous	-
37	102429		Screw 10 - 32 X 3/8``		Appelez-nous	-
38	324739		Oven Top-lower Oven		Appelez-nous	-
39	279468		Insulation-oven Top & Sides (1 Piece)		Appelez-nous	-
40	281418		Baffle-oven Bottom		Appelez-nous	-
41	335535		Thermostat Bulb Clip (4 Req)		Appelez-nous	-
42	98230		Plug Button				$ 257.43
43	279544		Insulation		Appelez-nous	-
44	336817		Oven Top-upper Oven		Appelez-nous	-
45	313320		Vent Box		Appelez-nous	-
46	313321		Insulation-oven Top & Back (1 Piece)		Appelez-nous	-
47	323762		Oven Cabinet Top		Appelez-nous	-
48	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
49	313324		Insulation-oven Top & Sides (1 Piece)		Appelez-nous	-
50	323619		Raceway-inner Capillary		Appelez-nous	-
51	70588		Clip		Appelez-nous	-
52	279470		Insulation-oven Door Spring (4 Req)		Appelez-nous	-
53	331856		Frt. Frame		Appelez-nous	-
54	97324		Insulation		Appelez-nous	-
55	331848		Skirt-broiler Burner		Appelez-nous	-
56	315944		Seal-top & Bottom (4 Req)		Appelez-nous	-
57	315945		Seal-sides (4 Req)		Appelez-nous	-
58	279476		Support Bracket (2 Req)		Appelez-nous	-
59	331851		Broiler Pan Grid		Appelez-nous	-
60	331850		Broiler Pan		Appelez-nous	-
61	279539		Oven Rack (3 Req)		Appelez-nous	-
62	303382		Insulation-center Trim		Appelez-nous	-
63	306481		Insulation-center Trim		Appelez-nous	-
64	327977		Door Spring Bracket (4 Req)		Appelez-nous	-
65	108069		Speed Nut 10 - 32		Appelez-nous	-
66	336823		Center Trim-front Frame		Appelez-nous	-
67	323446		Support-hinge (4 Req)		Appelez-nous	-
68	327982		Bracket-frame Support (2 Req)		Appelez-nous	-
69	327965		Main Bottom		Appelez-nous	-
70	279264		Air Channel Box			Immediately	$ 67.07
71	336626		Lower Trim-front Frame		Appelez-nous	-
72	231648		Screw 6-32x5/16``		Appelez-nous	-
73	DA96-01243C		Lamp Bulb-40 W (up. & Lo. Oven)   (Replaces: 111257)				$ 144.00
74	87883		Oven Lamp Holder (up. & Lo. Oven)		Appelez-nous	-
75	105667		Screw 6-32x3/8``		Appelez-nous	-
76	303383		Shield-burner Box		Appelez-nous	-
77	279538		Right		Appelez-nous	-
77	279537		Left		Appelez-nous	-
78	331858		Left		Appelez-nous	-
78	331859		Right		Appelez-nous	-
79	332376		Left		Appelez-nous	-
79	331859		Right		Appelez-nous	-
80	279470		Insulation-oven Door Spring (4 Req)		Appelez-nous	-
81	323619		Raceway-outer Capillary		Appelez-nous	-
82	335851		Sensor		Appelez-nous	-
83	336152		Screw		Appelez-nous	-
