SELECT A DIAGRAM

01 - Cover Sheet

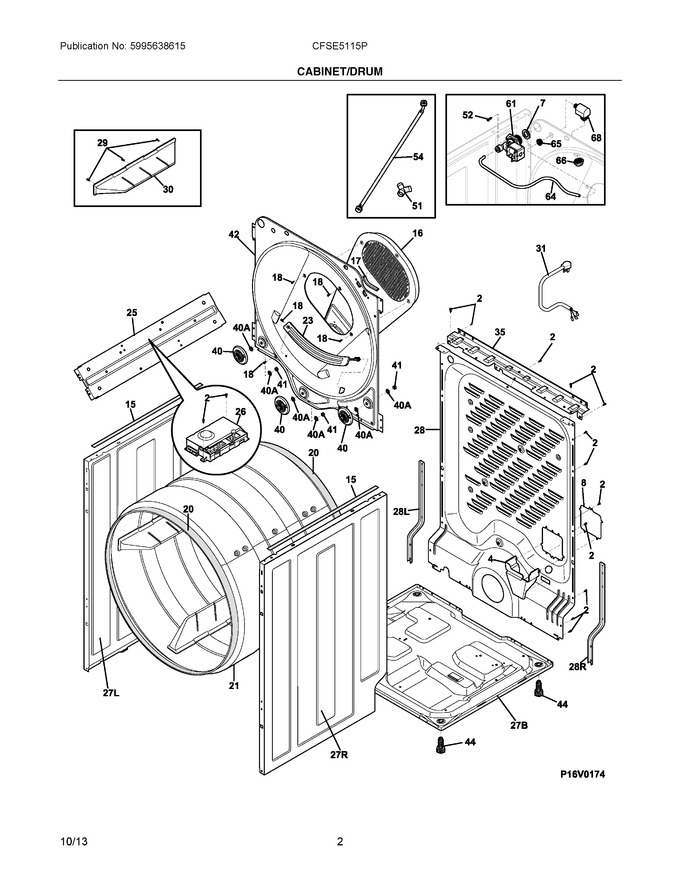

02 - Cabinet/drum


03 - Front Panel/lint Filter


04 - Controls/top Panel


05 - Motor


06 - Burner


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
4	134792200		Bracket, Mounting, Terminal Block				$ 26.09
7	5303161296		Washer, Inlet Hose			Immediately	$ 2,372.96
8	137578600		Cover, Access, Terminal Block				$ 12.65
15	137031800		Cushion, Vibration, Top Panel			Immediately	$ 8.51
16	5304508449		Duct, Heat, Rear   (Replaces: 134694030)			Immediately	$ 108.44
17	134792900		Protector, Edge, Right Top Front, 85.0+/-1.5				$ 13.46
18	131168200		Screw, 10-16ab X 0.375   (Replaces: 131477000)			Immediately	$ 14.18
20	137565300		Seal, Felt, Drum				$ 100.49
21	137623110		Drum, Dryer, Assembly 36				$ 342.41
23	134786100		Sensor, Moisture, Assembly				$ 84.27
25	134912100		Bracket, Mounting, Main Control Bx		Appelez-nous	-
26	809160802		Control Assembly, Main Electronic, With Housing   (Replaces: 137249940)				$ 294.24
28	137560313		Panel, Backsheet, Rear		Appelez-nous	-
29	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 14.18
30	137623210		Vane, Drum, Ncs 6502b		Appelez-nous	-
31	5304505408		Power Cord, Electric Svce, 240, 4-wire Canada   (Replaces: 134502300)				$ 194.62
33	3204267		Thermostat, Safety			Immediately	$ 53.49
34	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.36
35	134959000		Bracket, Top Panel Mtg., Rear		Appelez-nous	-
40	5304523155		Roller, Wheel, Complete Asmy   (Replaces: 134715900)			Immediately	$ 77.99
41	134716800		Nut, 3/8-16				$ 2.98
42	137556618		Bulkhead, Panel, Rear		Appelez-nous	-
44	134158000		Leveling Leg, Screw		Appelez-nous	-
51	5304500709		Fitting, "y" Hose, Adapter   (Replaces: 137016710)			Immediately	$ 12.56
52	131202300		Screw, 10-16ab X 0.625			Immediately	$ 13.46
54	5304503984		Hose, Inlet 48" Subassembly   (Replaces: 137471700)				$ 46.07
61	137544800		Valve, Mist Low Profile			Immediately	$ 78.44
64	5304529773		Tube, Water Valve To, Misting Nozzle   (Replaces: 137402400)				$ 77.30
65	137017200		Grommet, Misting Tube				$ 3.55
66	5304529773		Nut, Nozzle   (Replaces: 137017300)				$ 77.30
67	137017400		Clip, Mounting, Water Valve				$ 20.32
68	5304529773		Adapter, Water Nozzle, Complete   (Replaces: 137030100)				$ 77.30
27B	134690203		Base, Dryer				$ 273.58
27L	134690325		Panel, Left Side, Silver				$ 225.28
27R	134690425		Panel, Right Side, Silver				$ 228.22
28L	137029900		Bracket, Reinforcement, Left, Backsheet		Appelez-nous	-
28R	137066800		Bracket, Reinforcement, Right, Backsheet		Appelez-nous	-
40A	134716700		Washer, Flat				$ 2.12
NI	137240400		Brace, Side Panel, Left Or Right		Appelez-nous	-
NIA	134932400		Strain Relief, 240, Pwr Cord				$ 19.06
NIA	134716200		Retainer, Roller Wheel, Assembly				$ 3.12
NIA	5308027429		Adhesive, High Temp			Immediately	$ 60.25
NIA	134930800		Wiring Harness, Moisture Sensor			Immediately	$ 48.44

    View Diagram in Separate Window       Print Part List
