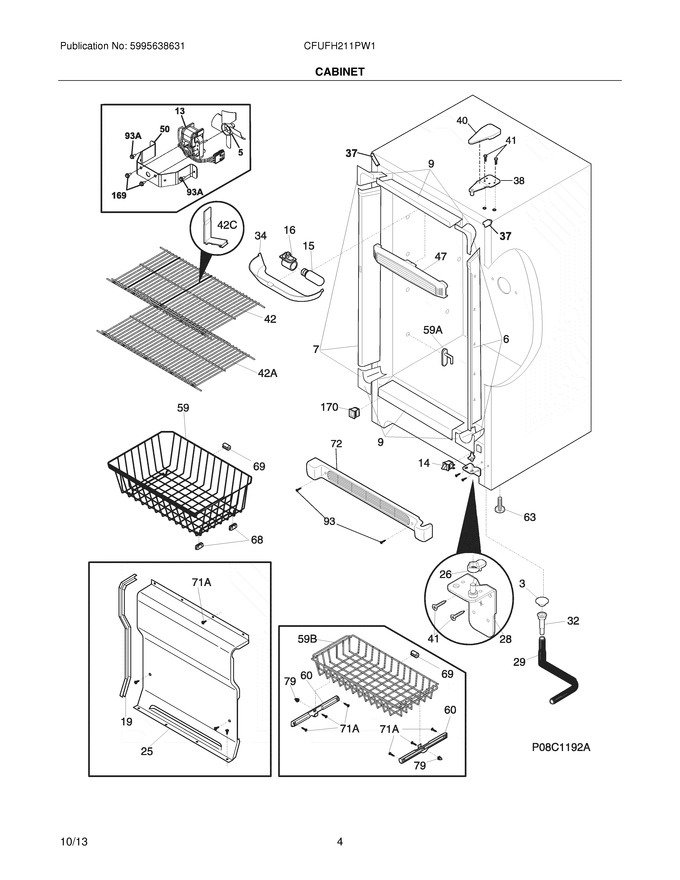

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 216503100 | Screen-drain |
|
$ 62.17 | |||||
| 6 | 297200900 | Breaker Kit W/corners |
|
Immediately | $ 70.85 | ||||
| 7 | 297201100 | Breaker Kit W/corners,lock Catch |
|
$ 89.57 | |||||
| 9 | 297200100 | Breaker Kit W/corners,32`` ,top And Bottom |
|
$ 59.28 | |||||
| 14 | 216822900 | Switch,light/lamp ,ramp |
|
Immediately | $ 70.16 | ||||
| 15 | 5304517886 | Light Bulb,short ,blue Tint ,40w (Replaces: 297114000) |
|
Immediately | $ 73.06 | ||||
| 16 | 297139500 | Socket,light/lamp |
|
$ 18.08 | |||||
| 19 | 216204902 | Gasket-evap Cover |
|
Immediately | $ 35.74 | ||||
| 25 | 297099251 | Cover-evaporator |
|
$ 109.93 | |||||
| 26 | 216503300 | Ramp,door Closer |
|
$ 8.82 | |||||
| 28 | 297283900 | Hinge-bottom,stepped Pin |
|
Immediately | $ 54.23 | ||||
| 29 | 5304512272 | Hose-drain (Replaces: 216313501) |
|
Immediately | $ 15.90 | ||||
| 32 | 5304511843 | Drain (Replaces: 5308005500) |
|
$ 13.74 | |||||
| 34 | 297184400 | Shield-light |
|
$ 21.16 | |||||
| 37 | 297273904 | Trim-cabinet Corner,white ,(2) (Replaces: 297273900) |
|
$ 7.59 | |||||
| 38 | 297283803 | Hinge-upper (Replaces: 297283800) |
|
Immediately | $ 19.52 | ||||
| 40 | 297164400 | Cover-hinge |
|
$ 12.65 | |||||
| 41 | 240578902 | Screw,tamper Proof ,1/4-20 X 5/8 (Replaces: 297236200) |
|
Immediately | $ 14.18 | ||||
| 42 | 297367500 | Shelf,wire ,16.69x27.88 ,white ,(3) |
|
$ 104.00 | |||||
| 47 | 297192903 | Baffle,air (Replaces: 297192900) |
|
Immediately | $ 25.31 | ||||
| 50 | 216394050 | Bracket,fan Motor Mount |
|
$ 22.75 | |||||
| 59 | 5304497657 | Basket (Replaces: 297343500) |
|
$ 121.91 | |||||
| 60 | 297013500 | Slide,shelf |
|
$ 38.98 | |||||
| 63 | 216396900 | Screw,leveling Foot ,plastic ,adjustable |
|
Immediately | $ 38.39 | ||||
| 68 | 08009560 | Glide-basket |
|
$ 35.25 | |||||
| 69 | 5305878546 | Bumper-basket |
|
$ 7.23 | |||||
| 72 | 297198900 | Grille/kickplate,32`` ,white |
|
$ 30.71 | |||||
| 86 | 216036601 | Screw,rwhd ,8-32a X 0.500 ,gx-ca |
|
$ 13.65 | |||||
| 93 | 216858001 | Screw,ph Truss Head ,8-18ab X 0.500 (Replaces: 5304460605) |
|
Immediately | $ 10.85 | ||||
| 169 | 216912401 | Screw,hex Washer Head ,8-32 X 0.500 ,bracket Fan Mtr,(2) |
|
$ 12.76 | |||||
| 170 | 297280400 | Valve,breather |
|
$ 10.13 | |||||
| 42A | 297367400 | Shelf Wh 14.50 X 27.88 |
|
$ 101.33 | |||||
| 42C | 297183701 | Divider,blue ,wire Shelf |
|
- | |||||
| 59A | 216486500 | Stop-basket,(2) |
|
$ 20.58 | |||||
| 59B | 297343700 | Basket |
|
$ 84.63 | |||||
| 71A | 297146820 | Screw,8-18ab X.470 Qx |
|
$ 7.33 | |||||
| 93A | 241500305 | Screw, Self Pierce,no.8 ,18x.63 (Replaces: 297174300) |
|
$ 3.03 | |||||
| F13 | 297309000 | Motor,fan ,115 V (Replaces: 297250000) |
|
Immediately | $ 55.32 | ||||
| F5 | 5308000010 | Fan Blade (Replaces: 216325600) |
|
Immediately | $ 49.03 | ||||
| NI | 297164650 | Bracket,lh Leg Levelor |
|
$ 18.43 | |||||
| NI | 30534600 | Clip,wire (Replaces: 5303313703) |
|
$ 3.79 | |||||
| NI | 216502400 | Grommet-shelf Mtg |
|
$ 16.63 | |||||
| NI | 5303321319 | Paint,touch-up ,white (Replaces: 5303305324) |
|
Immediately | $ 13.46 | ||||
| NI | 125963-48 | Insulation,24`` ,drain Tube (Replaces: 297001704) |
|
Immediately | $ 59.16 | ||||
| NI | 297241400 | Label,ez Start Guide |
|
- | |||||
| NI | 297164651 | Bracket,rh Leg Levelor |
|
$ 17.51 | |||||
| NI | 297246001 | Service Data Sheet |
|
- |
