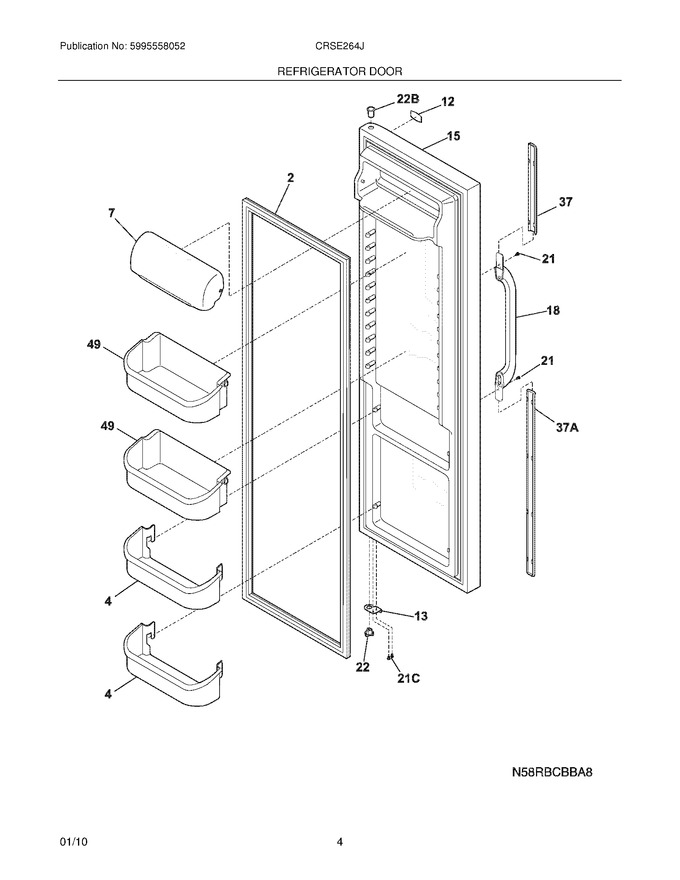

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241786013		Gasket-refr Door,white ,magnetic   (Replaces: 241786001)				$ 95.90
4	240323002		Bin-door,pseudo ,clear ,bottom			Immediately	$ 67.21
7	240326203		Door-dairy				$ 40.37
12	242013601		Label-nameplate		Appelez-nous	-
13	240581903		Door Stop,bisque ,ref				$ 29.87
15	241629352		Door-refr,bisque ,complete Assy		Appelez-nous	-
18	218668405		Handle-door,bisque		Appelez-nous	-
21	5304465886		Screw,no.8-18 X 9/16 ,truss Hd		Appelez-nous	-
22	242015301		Bearing-hinge(ref),natural ,closer				$ 11.44
37	218811647		Trim-handle,bisque ,upper		Appelez-nous	-
49	240356415		Bin-door,gallon		Appelez-nous	-
21C	240442708		Screw-no.10-32 X 3/4,zinc   (Replaces: 240442706)				$ 8.34
22B	240328402		Bearing-hinge,natural ,upper				$ 19.85
37A	218811646		Trim-handle,29.84`` ,bisque ,lower ,w/mtg Lock		Appelez-nous	-
