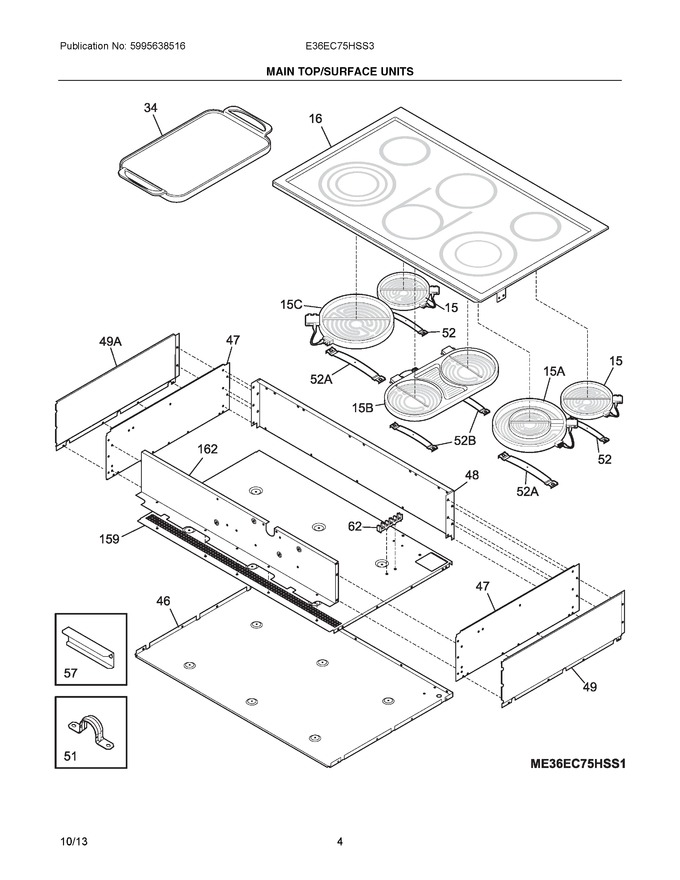

03 - Main Top/surface Units


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	318178110		Element, Surface, 6", 1200, (2), Radiant			Immediately	$ 122.86
16	318185223		Main Top Assy, Frame/glass, Stainless/black				$ 964.89
34	5304495353		Griddle   (Replaces: 316432200)			Immediately	$ 166.84
46	318242806		Panel, Base		Appelez-nous	-
47	318241704		Panel, Side, (2)		Appelez-nous	-
48	318241804		Panel, Rear		Appelez-nous	-
49	318241902		Panel, Interior Side, Rh		Appelez-nous	-
51	318389600		Bracket, Conduit Mtg.				$ 12.76
52	318122006		Spring, Element Mtg, Small				$ 66.25
57	318402801		Plate, Cover		Appelez-nous	-
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
159	318242951		Panel, Bottom		Appelez-nous	-
162	318245508		Shield, Heat		Appelez-nous	-
15A	5304533520		Element, Dual, 9"/6", Surface, 3000w, Quick Boil   (Replaces: 316282000)			Immediately	$ 90.14
15B	318258203		Element, Bridge, 1800/2600			Immediately	$ 371.39
15C	318297804		Element, Surface, Triple, 800/900/1000				$ 345.24
49A	318241903		Panel, Interior Side, Lh		Appelez-nous	-
52A	318122010		Spring, Element Mtg, 3000w				$ 62.51
52B	318122008		Spring, Element Mtg, 1800w/3000w				$ 90.80
NI	5303323140		Screw, Ground, 10-32 X 0.375		Appelez-nous	-
NI	318163602		Cleaner, Stainless Steel				$ 26.51
NI	08016432		Screw, Truss Head, 8-18 X 0.375		Appelez-nous	-
NI	318394455		Box & Wires Assy		Appelez-nous	-
NI	318199491		Harness, Wiring, Main		Appelez-nous	-
NI	5304400192		Retainer, Wiring		Appelez-nous	-
NI	318406000		Sponge, Cleaning				$ 19.71
NI	318163601		Cleaner-cooktop				$ 0.42
NIA	5303323139		Screw, 10-24 X 0.906				$ 13.46
NIB	316205500		Nut, 10-32   (Replaces: 5303323144)				$ 11.34
