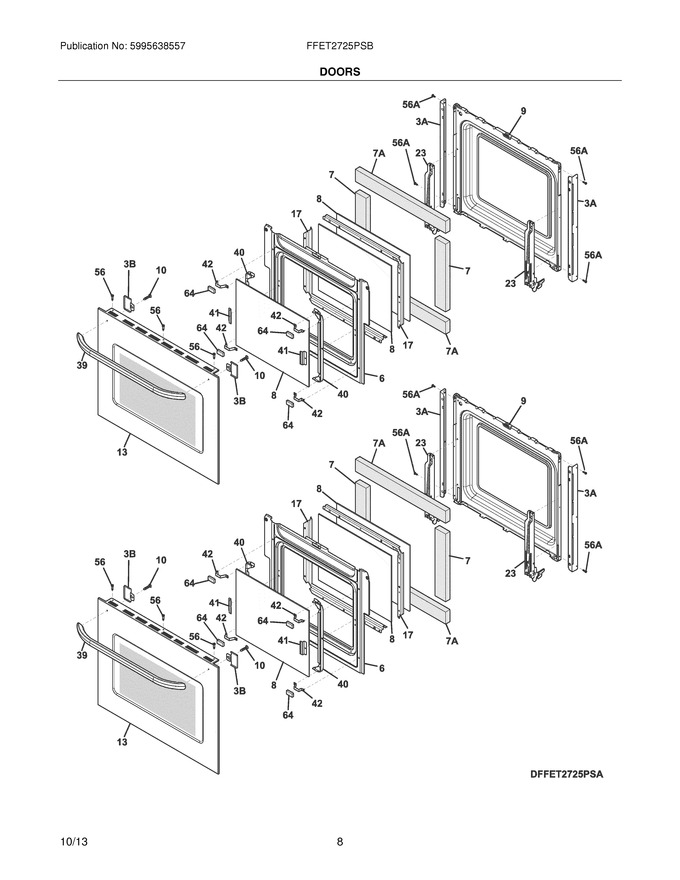

09 - Doors


10 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	139014203		Baffle,door		Appelez-nous	-
7	318372017		Insulation,door				$ 16.30
8	139085803		Glass,oven Door ,heat Barrier   (Replaces: 318212201)			Immediately	$ 108.45
9	139002912		Liner,oven Door		Appelez-nous	-
10	5303311174		Screw,10-24 X 3/8			Immediately	$ 14.89
13	139099601		Door Assembly,outer ,steel/glass ,stainless/black,w/trim		Appelez-nous	-
17	318264702		Spacer,glass ,(2)		Appelez-nous	-
23	316575902		Hinge,oven Door ,red				$ 102.38
39	318927000		Handle,door ,stainless				$ 186.48
40	318242702		Bracket,glass Holder ,door ,(2)				$ 19.72
41	318370602		Bracket,glass Panel ,(2)				$ 13.65
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 50.81
56	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
64	318165800		Spacer				$ 17.72
3A	139014401		Trim,oven Door ,black ,side ,(2) ,vented				$ 32.62
3B	318262104		Cover,rear Door ,black ,(2)				$ 24.99
56A	5303324184		Screw,8-18 X 5/16 ,black			Immediately	$ 14.18
7A	318372018		Insulation,20.5 X 2.375 ,1`` Thick ,(2)   (Replaces: 318372015)				$ 14.18
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
