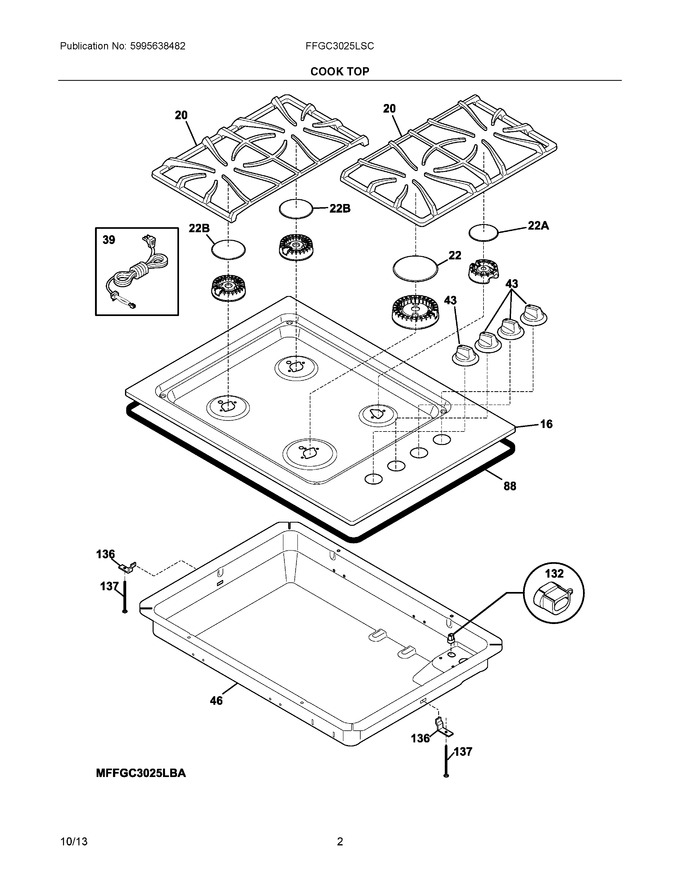

02 - Cook Top


03 - Burner


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318560642		Maintop, Assembly, Stainless		Appelez-nous	-
20	318560200		Grate, Burner, Black, (2)		Appelez-nous	-
22	5304508443		Cap, 14k Burner, Matte, Black   (Replaces: 316262004)			Immediately	$ 46.01
39	318144006		Cord, Service		Appelez-nous	-
43	316544038		Knob, Control, Black		Appelez-nous	-
46	318278907		Box, Burner		Appelez-nous	-
88	318280120		Gasket, Cooktop, 93				$ 138.29
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
136	318264301		Support, Box, (2)				$ 42.95
137	5303323138		Screw, 10-24x1/2				$ 14.13
22A	5304508441		Cap, 5k Burner, Matte, Black   (Replaces: 316261704)			Immediately	$ 35.04
22B	5304508442		Cap, 9.5k Burner, Matte, Black   (Replaces: 316261804)			Immediately	$ 36.55
NI	5303323171		Tape, Aluminum, 2		Appelez-nous	-
NI	5303323140		Screw, Ground, 10-32 X 0.375		Appelez-nous	-
NI	318163602		Cleaner, Stainless Steel				$ 26.51
