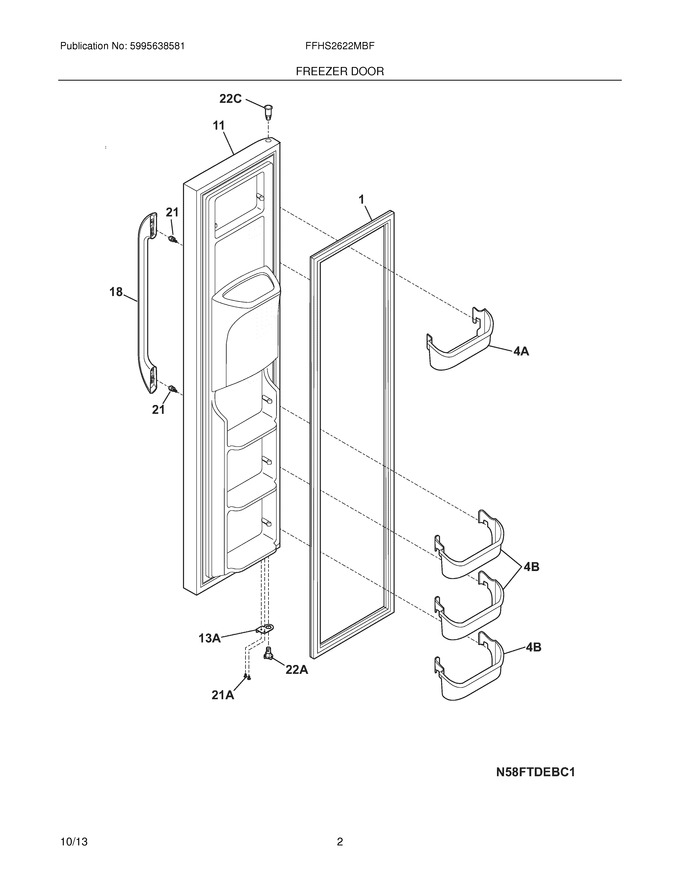

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241786014 | Freezer Door Gasket, Grey, Magnetic (Replaces: 241786006) |
|
$ 95.17 | |||||
| 11 | 242026491 | Door-frzr,black ,complete Assy |
|
- | |||||
| 18 | 242059104 | Handle-door,black |
|
$ 124.64 | |||||
| 21 | 241695904 | Screw |
|
$ 14.41 | |||||
| 26 | 215503203 | Screw,cr Pan Hd ,10-16 X 0.500 |
|
Immediately | $ 7.09 | ||||
| 45 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile |
|
$ 14.18 | |||||
| 45 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 58 | 218781101 | Screw,pan Head ,8-18 X 0.625 |
|
$ 15.60 | |||||
| 74 | 218755402 | Screw-set,10-32 X .500 In |
|
Immediately | $ 33.00 | ||||
| 21A | 240442708 | Screw-no.10-32 X 3/4,zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 22A | 241990302 | Bearing-hinge(frz),closer |
|
$ 7.09 | |||||
| 22C | 241760402 | Bearing,hinge ,top |
|
$ 19.13 | |||||
| 4A | 240334201 | Bin-door,frzr-upper |
|
$ 67.21 | |||||
| 4B | 240351601 | Bin-door |
|
Immediately | $ 58.73 | ||||
| NI | 241806601 | Connector-water,straight ,5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NI | 5308000039 | Screw,hex Washer Head ,8-32ca X 0.500 ,serrated Head |
|
- | |||||
| NI | 240451503 | Screw,ind Hex Wshr Hd ,8-32 X 0.375 ,trilobe |
|
$ 3.79 | |||||
| NI | 241806601 | Connector-water,straight |
|
Immediately | $ 70.56 | ||||
| NI | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 |
|
Immediately | $ 14.18 |
