SELECT A DIAGRAM

01 - Cover Sheet

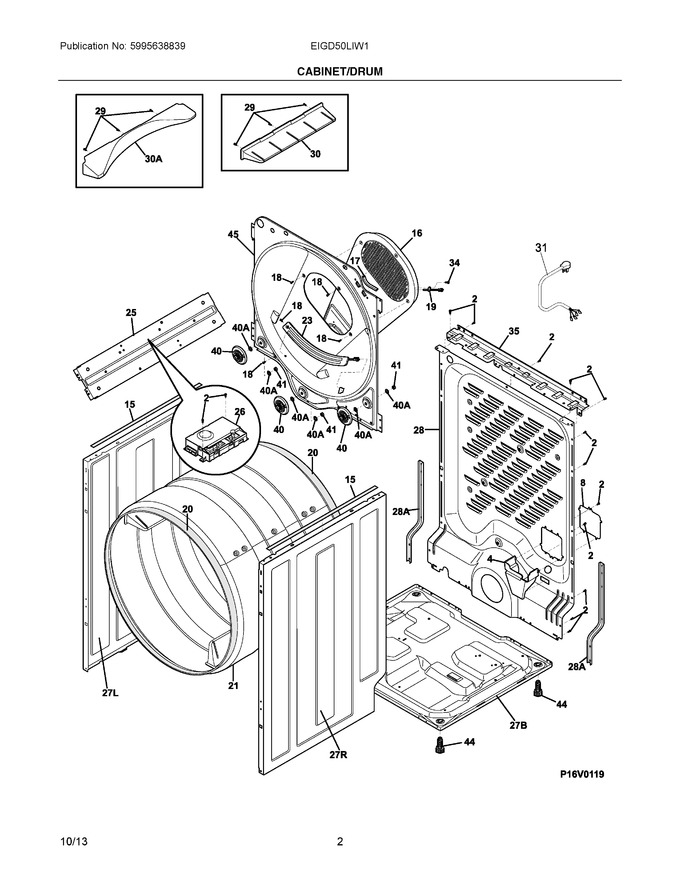

02 - Cabinet/drum


03 - Front Panel/lint Filter


04 - Controls/top Panel


05 - Motor


06 - Burner


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
4	134792100		Bracket, Main, Terminal				$ 29.07
8	134694400		Cover, Terminal Block				$ 72.18
15	137031800		Cushion, Vibration, Top Panel			Immediately	$ 8.51
16	5304509715		Duct, Heat, Rear   (Replaces: 137199820)			Immediately	$ 124.34
17	137360810		Protector, Edge, Side Brace		Appelez-nous	-
18	131168200		Screw, 10-16ab X 0.375   (Replaces: 131477000)			Immediately	$ 14.18
20	137565300		Seal, Felt, Drum				$ 100.49
21	137610700		Drum, Dryer, Assmy 30", White			Immediately	$ 383.44
23	134786110		Sensor-moisture, Assembly				$ 92.14
25	137567000		Bracket, Mounting, Main Cntl Box		Appelez-nous	-
26	134788410		Control Board, Main, With Housing		Appelez-nous	-
28	137560400		Panel, Backsheet, Rear Vented		Appelez-nous	-
29	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 14.18
30	137610610		Vane, Straight, Gray			Immediately	$ 65.21
31	5304505407		Power Cord, Electric Svce   (Replaces: 134501000)				$ 88.20
35	134713100		Bracket, Top Panel Mtg., Rear				$ 70.82
40	5304523155		Roller, Wheel, Complete Asmy   (Replaces: 134715900)			Immediately	$ 77.99
41	134716800		Nut, 3/8-16				$ 2.98
44	134158000		Leveling Leg, Screw		Appelez-nous	-
45	137556623		Bulkhead, Panel, Rear   (Replaces: 137556615)				$ 311.52
27B	134690201		Base, Dryer, Washed		Appelez-nous	-
27L	134712610		Panel, Left Side, White				$ 246.17
27R	134712710		Panel, Right Side, White				$ 197.56
28A	137029800		Bracket, Reinforcement, Backsheet		Appelez-nous	-
30A	5304531882		Vane, Mixing, Smooth   (Replaces: 137610510)				$ 20.24
40A	134716700		Washer, Flat				$ 2.12
NIA	134716200		Retainer, Roller Wheel, Assembly				$ 3.12
NIA	134790900		Strain Relief, 120, Pwr Cord		Appelez-nous	-
NIA	5308027429		Adhesive, High Temp			Immediately	$ 60.25
NIA	134930800		Wiring Harness, Moisture Sensor			Immediately	$ 48.44

    View Diagram in Separate Window       Print Part List
