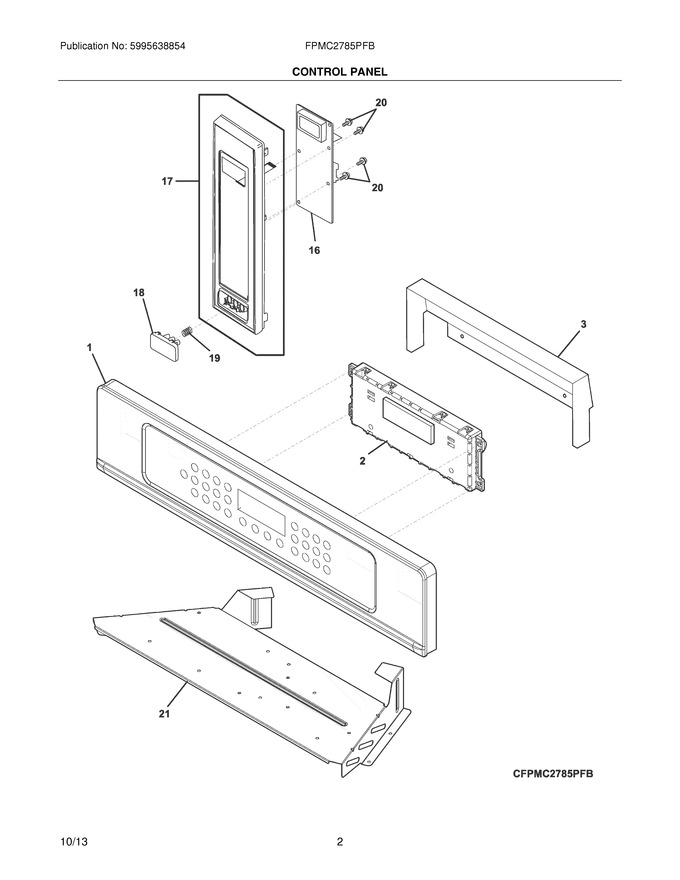

01 - Cover
03 - Control Panel
05 - Microwave
07 - Lower Oven
09 - Doors
10 - Wiring Diagram
11 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 807586802 | Deflector,timer |
|
- | |||||
| 18 | 5304497439 | Push Button,door ,stainless (Replaces: 5304472845) |
|
$ 262.49 | |||||
| 19 | 5304440831 | Spring,door Button |
|
$ 20.29 | |||||
| 20 | 5304456930 | Screw,3 Mm X 6 Mm ,(4) |
|
- | |||||
| 21 | 139028000 | Bracket,mounting |
|
$ 63.00 | |||||
| F1 | 139038808 | Control Panel Assembly,steel/glass ,stainless,w/touch Pad |
|
- | |||||
| F16 | 5304474853 | Control Board,assembly ,microwave |
|
$ 396.16 | |||||
| F17 | 5304493149 | Control Panel Assembly,stainless |
|
$ 179.92 | |||||
| F2 | 316560185 | Controller,electronic ,es530w5 |
|
$ 578.34 | |||||
| NI | 316021109 | Screw,hex Head Cup Pt ,8-18 X 0.375 ,black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw,8-18 X 0.5 ,black (Replaces: 316021110) |
|
Immediately | $ 27.50 |
