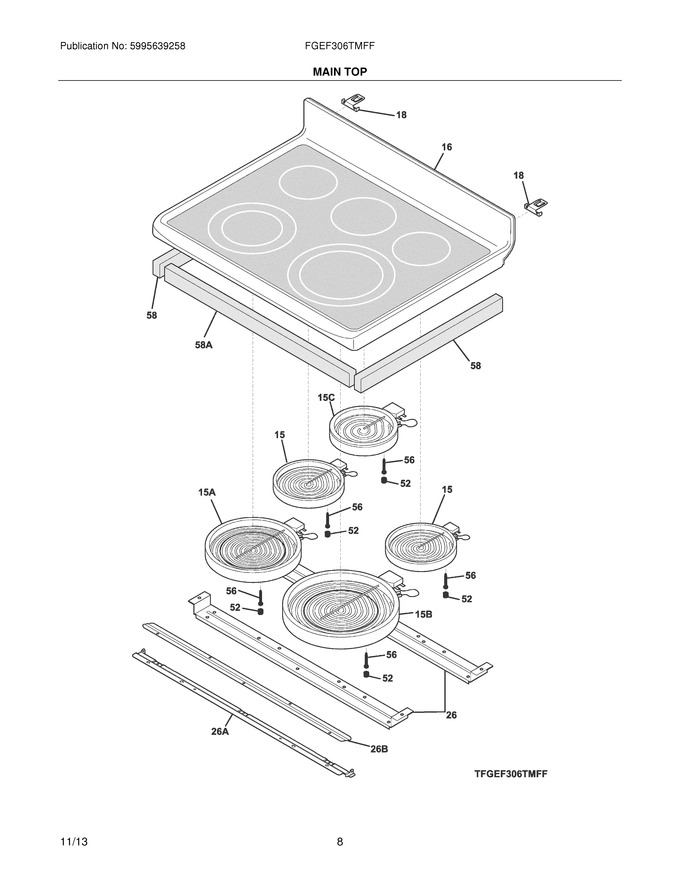

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	316531953		Main Top Assy,glass/steel ,black   (Replaces: 318394212)			Immediately	$ 563.72
18	316436600		Hinge Bracket,maintop ,(2)				$ 45.36
26	318410902		Bracket,element Mtg ,(2)		Appelez-nous	-
52	5303317177		Spring,element Mtg.				$ 12.74
56	5304400427		Screw,6-20 X 1/2 ,(8)		Appelez-nous	-
58	807157101		Insulation,19`` X ``2 ,1.25`` Thick				$ 11.34
26A	318640301		Bracket,cooktop ,black				$ 11.23
26B	316214202		Bracket,chassis Support ,front				$ 25.41
58A	807162601		Insualtion,28.5`` X 2.5`` ,1.5`` Thick				$ 20.63
F15	318178110		Element,surface ,6`` ,1200 ,(2) ,radiant			Immediately	$ 122.86
F15A	5304533520		Element,dual ,9``/6`` ,surface ,3000w ,quick Boil   (Replaces: 316282000)			Immediately	$ 90.14
F15B	316282101		Element,dual ,9/12`` ,surface ,1700/2700w,dual Radiant			Immediately	$ 283.03
F15C	140273621015		Element,surface ,warmer ,100 W   (Replaces: 318198832)			Immediately	$ 35.77
FNI	318228989		Harness,wiring ,cooktop		Appelez-nous	-
NI	5303323137		Screw,8-32 X 1/4   (Replaces: 5303305528)				$ 11.88
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	08016432		Screw,truss Head ,8-18 X 0.375		Appelez-nous	-
