SELECT A DIAGRAM
New Model Search:

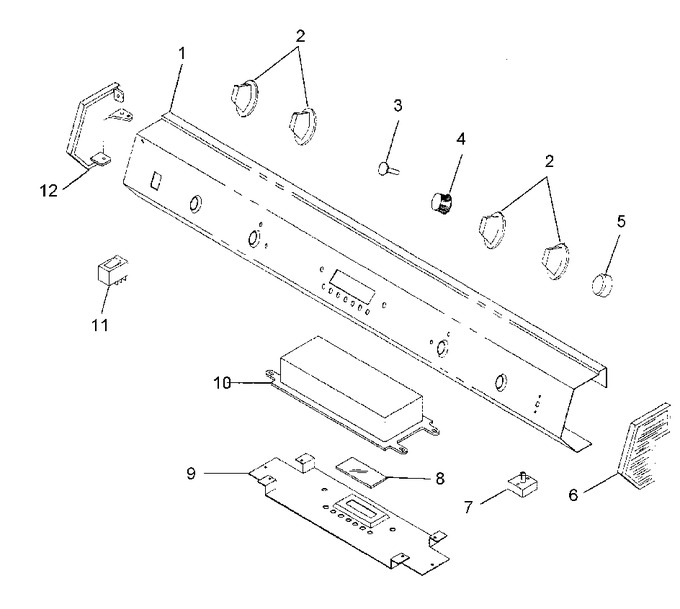

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 314686B | Panel, Control (blk) |
|
- | |||||
| 2 | Y0304728 | Knob Top Burner |
|
- | |||||
| 3 | 308957B | Knob, Set Button (blk) |
|
$ 5.85 | |||||
| 4 | 308956B | Knob, Clock (blk) |
|
$ 4.83 | |||||
| 5 | 31760709B | Knob, Fan Switch (black) |
|
- | |||||
| 6 | 308172B | End Cap, Rt (blk) |
|
- | |||||
| 7 | Y0300574 | Switch, Fan |
|
- | |||||
| 8 | Y0308107 | Glass, Clock |
|
- | |||||
| 9 | 308085B | Bracket,erc Mount |
|
- | |||||
| 10 | Y0308481 | Control, Erc |
|
- | |||||
| 11 | Y0300570 | Switch,oven Light Xx Blk |
|
- | |||||
| 12 | 308171B | End Cap, Lt (blk) |
|
- | |||||
| NI | Y0302114 | Filter, Gray |
|
- | |||||
| NI | 31750302 | Screw, No.3-32 X.187 Pan Hd Ph |
|
- | |||||
| NI | WP74004005 | Screw, No.6-32 X .312 Panhd(blk) (Replaces: 31750310) |
|
$ 6.95 | |||||
| NI | Y0308189 | Harness, Wire (clock/pcb) |
|
- |
