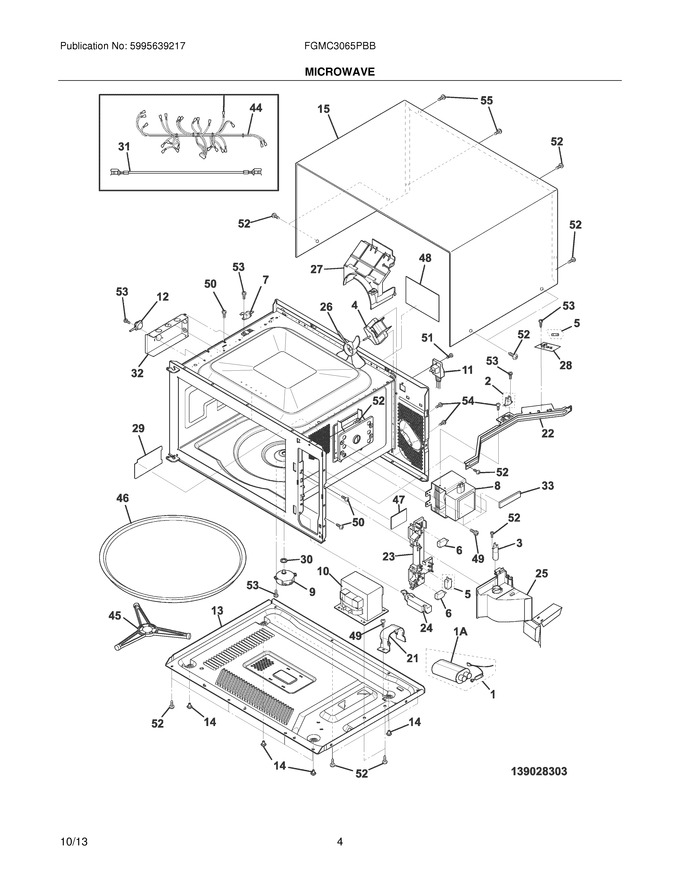

05 - Microwave


07 - Lower Oven


09 - Doors


10 - Wiring Diagram


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
13	5304493154		Base,unit Chassis				$ 154.14
14	5304474852		Foot,cabinet Support		Appelez-nous	-
15	5304478940		Cabinet,outer Casing ,black				$ 320.30
21	5304478941		Retainer,capacitor Strap		Appelez-nous	-
22	5304478942		Bracket,chassis Support		Appelez-nous	-
23	5304503439		Latch Hook   (Replaces: 5304483410)			Immediately	$ 60.62
24	5304485407		Lever,door Release   (Replaces: 5304464899)				$ 63.36
25	5304493448		Duct,magnetron		Appelez-nous	-
26	5304493155		Fan Blade,cooling Fan				$ 16.30
27	5304493156		Duct,cooling Fan		Appelez-nous	-
29	5304478947		Cover,waveguide		Appelez-nous	-
30	5304467718		Bushing,motor Shaft ,turntable				$ 19.14
32	5304478948		Duct,humidity Sensor		Appelez-nous	-
33	5304478949		Cushion,magnetron Pad		Appelez-nous	-
45	5304467717		Support Assy,turntable ,roller				$ 122.18
46	5304529482		Tray,turntable ,glass   (Replaces: 5304440868)				$ 108.44
47	5304467771		Label,caution-monitor		Appelez-nous	-
48	5304467770		Label,caution-dhhs		Appelez-nous	-
49	5303319636		Screw,(5)		Appelez-nous	-
50	5303319641		Screw,(2)				$ 12.76
51	5304462315		Screw,4 Mm X 12 Mm ,ground		Appelez-nous	-
52	5304451553		Screw,4 Mm X 12 Mm				$ 14.89
53	5304453725		Screw,3mm X 8mm		Appelez-nous	-
54	5304450253		Screw,4 Mm X 8 Mm				$ 14.89
55	5304440873		Screw,torx ,tamper Proof				$ 11.34
F1	5304493150		Capacitor/rectifier Assy,hv				$ 26.94
F10	5304473321		Transformer,power				$ 253.64
F11	5304478937		Power Cord,electric				$ 68.75
F12	5304440785		Sensor,humidity ,cook Control				$ 56.18
F1A	5304487566		Capacitor,high Voltage			Immediately	$ 122.62
F2	5303319550		Fuse,magnetron				$ 117.23
F28	5304492543		Filter,noise ,electronic				$ 81.18
F3	5304500304		Lamp Assy,with Socket   (Replaces: 5304440779)				$ 63.79
F31	5304493157		Wire,high Voltage ,b		Appelez-nous	-
F4	5304493152		Motor,cooling Fan				$ 87.43
F44	5304479027		Wiring Harness,main		Appelez-nous	-
F5	5303319559		Switch,monitor ,w/ceramic Fuse				$ 85.43
F6	5304493153		Switch,interlock ,door Sensor			Immediately	$ 83.38
F7	5304440780		Fuse,cavity Temp ,20 Amp ,250 V				$ 85.76
F8	5304521745		Magnetron   (Replaces: 5304472253)				$ 189.05
F9	5304448832		Motor,turntable   (Replaces: 5304440782)			Immediately	$ 74.09
NI	240442708		Screw,10-32 X 3/4 ,(4)   (Replaces: 5304400794)				$ 8.34
