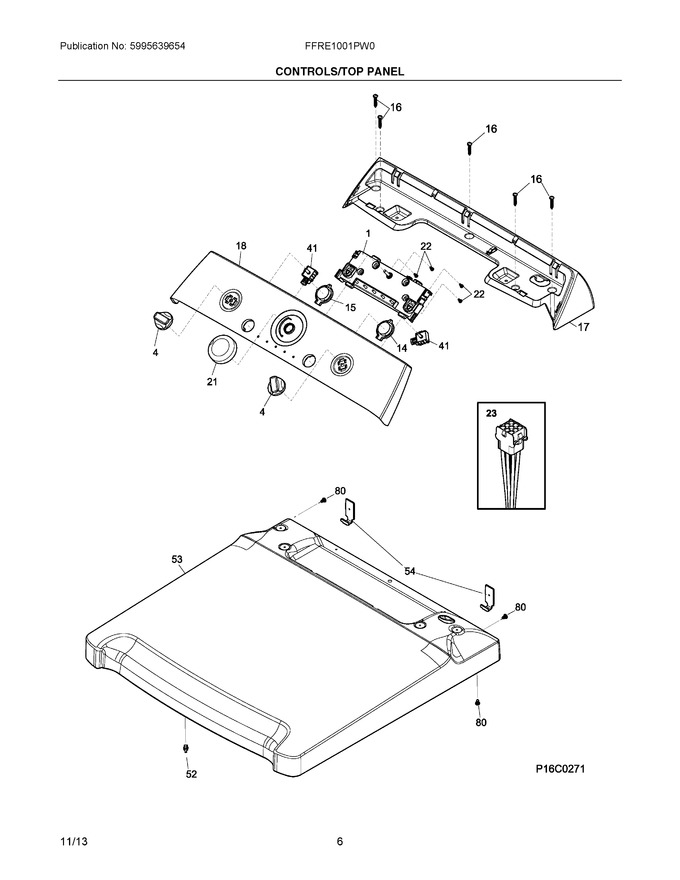

04 - Controls/top Panel


05 - Motor


06 - Burner


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	137571100		Control Board, Pc W/housing				$ 177.12
4	5304492302		Knob, Option Assy		Appelez-nous	-
14	5304492303		Button, Push Start		Appelez-nous	-
15	5304492304		Button, Push-cancel		Appelez-nous	-
16	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
17	137542600		Console, Td Lower, White		Appelez-nous	-
18	137571000		Panel, Dec Control				$ 184.38
21	5304492301		Knob, Center Assy		Appelez-nous	-
22	5304414396		Screw, 6-20 X.375 Pphb		Appelez-nous	-
23	137556900		Harness, Main, Electric		Appelez-nous	-
41	137261000		Switch, Rotary, 4 Pos				$ 102.65
52	137362600		Pin, Panel Locator				$ 35.44
53	137542210		Panel, Top, White		Appelez-nous	-
54	137329700		Bracket, Hinge, Rear		Appelez-nous	-
80	137361500		Screw 8-18x0.711 Combo				$ 7.79
NI	137541400		Harness, 2 Option Switch		Appelez-nous	-
