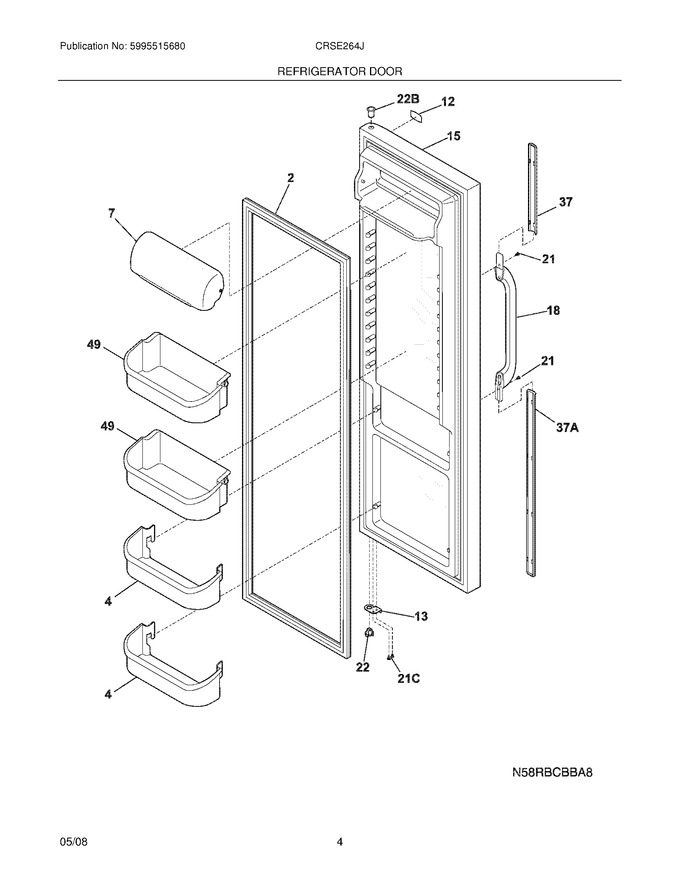

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241786005		Refrigerator Door Gasket, Grey, Magnetic			Immediately	$ 225.62
4	240323002		Bin-door,pseudo ,bottom			Immediately	$ 67.21
7	240326203		Door-dairy				$ 40.37
12	240415207		Label-nameplate,black				$ 3.55
13	240581905		Door Stop,black ,ref				$ 60.25
15	241629354		Door-refr,stainless ,complete Assy		Appelez-nous	-
18	218668404		Handle-door,black		Appelez-nous	-
21	5304465886		Screw,no.8-18 X 9/16 ,truss Hd		Appelez-nous	-
22	240328203		Bearing-hinge,black ,closer			Immediately	$ 27.23
37	218811651		Trim-handle,black ,upper		Appelez-nous	-
49	240356415		Bin-door,gallon		Appelez-nous	-
21C	5303323137		Screw,10-32 X 1/2   (Replaces: 240598402)				$ 11.88
22B	240328404		Bearing-hinge,black ,upper				$ 22.87
37A	215782300		Lock-handle Trim,snap-in				$ 34.49
37A	218811650		Trim-handle,black ,lower		Appelez-nous	-
