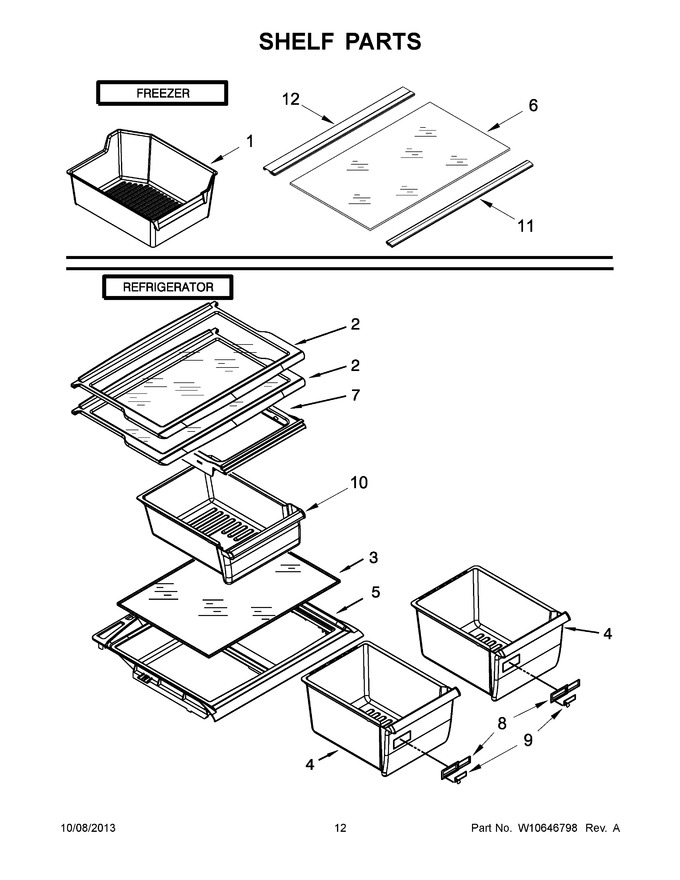

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11625904 | Pan, Ice Cube (Replaces: 2166261) |
|
$ 58.14 | |||||
| 2 | W11181679 | Shelf (Replaces: W10283851) |
|
$ 226.11 | |||||
| 3 | WP2262441 | Glass, Crisper Cover (Replaces: 2262441) |
|
Immediately | $ 199.65 | ||||
| 4 | WP2256704 | Crisper Pan (Replaces: 2256704) |
|
Immediately | $ 127.50 | ||||
| 5 | WP2222031 | Cover, Crisper (Replaces: W10250666) |
|
Immediately | $ 223.07 | ||||
| 6 | W10283871 | Shelf, Glass |
|
$ 88.25 | |||||
| 7 | WP2256601 | Holder, Meat Pan (Replaces: 2256601) |
|
$ 154.47 | |||||
| 8 | W11819839 | Body, Humidity Control (Replaces: 2212446) |
|
$ 13.55 | |||||
| 9 | WP2176222 | Slide, Humidity Control (Replaces: 2176222) |
|
$ 27.35 | |||||
| 10 | WP2261934 | Pan, Meat (Replaces: 2261934) |
|
Immediately | $ 129.59 | ||||
| 11 | WPW10283860 | Trim, Front (Replaces: W10272377) |
|
$ 240.60 | |||||
| 12 | WPW10283860 | Trim, Rear (Replaces: W10272381) |
|
$ 240.60 |
