SELECT A DIAGRAM

01 - Cabinet Assembly


02 - Control Panel Assembly


03 - Door Assembly


04 - Electrical Components


05 - Gas Components


06 - Main Top Assembly


07 - Oven Assembly


08 - Storage Drawer Assembly


09 - Ventilation Parts

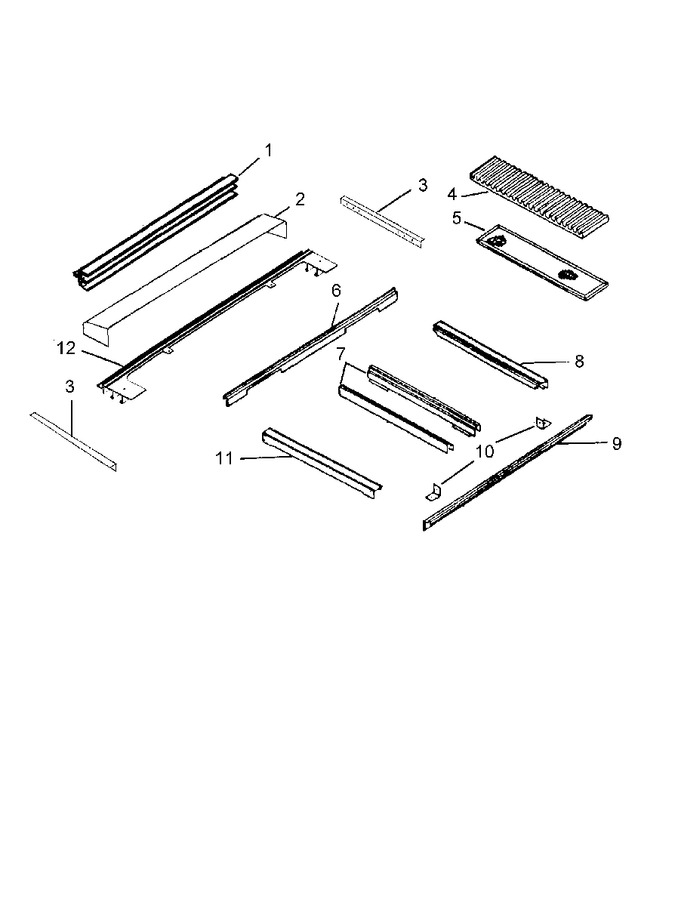

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0303156		Trim, Flue Cover		Appelez-nous	-
2	302098W		Cover, Dilution Flue		Appelez-nous	-
3	305204W		Trim, Countertop (wht)		Appelez-nous	-
4	Y058902G		Cover, Vent-casting		Appelez-nous	-
5	Y0307363		Filter (17.75``x4.0``x.375``)				$ 16.98
6	301815W		Frame, Rear-electric (wht)		Appelez-nous	-
7	303145W		Frame, Center Main Top (wht)		Appelez-nous	-
8	303149W		Frame, Rt Main Top (wht)		Appelez-nous	-
9	303146W		Frame, Front Main Top (wht)		Appelez-nous	-
10	Y0301154		Bracket, Frame Trim		Appelez-nous	-
11	303148W		Frame, Side-lt Main Top (wht)		Appelez-nous	-
12	315082W		Lo-backrail, Gas-w		Appelez-nous	-
NI	8169479		Screw, No.8-18 X 1/2 P Flt Hd   (Replaces: 31750411)				$ 6.26
NI	31750309		Screw, No.6-20 X .375 Pan Hd		Appelez-nous	-
NI	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65
NI	Y0062445		Spacer, Nylon (.14``)		Appelez-nous	-
NI	Y0076357		Rivet, Pop		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
